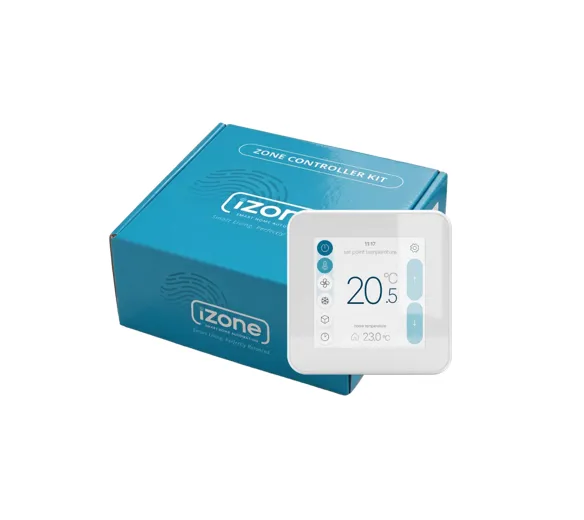

The iZone C265K Navi Zone Control Kit is an affordable smart climate-control solution for ducted reverse-cycle air-conditioning systems. It provides control of up to eight zones through a compact 4.3-inch colour touchscreen or the iZone mobile app.
The Navi controller provides direct control over the air conditioner’s temperature set point, operating mode, fan speed and individual zone status. Airflow to each zone can be adjusted in precise 5% increments, allowing the system to be balanced around the requirements of each room.
Wi-Fi is built directly into the Navi wall controller, providing smartphone control and remote diagnostic access without requiring a separate iZone Smart Hub.
Key Features
-
Controls up to eight air-conditioning zones
-
4.3-inch high-resolution colour touchscreen
-
Controls temperature, operating mode and fan speed
-
Individual zone on/off control
-
Zone airflow adjustment in 5% increments
-
Built-in room temperature sensor
-
Choice of touchscreen temperature control or return-air control
-
Built-in Wi-Fi connectivity
-
iOS and Android mobile app control
-
Programmable start and stop timers
-
Sleep timer with adjustable shutdown delay
-
Customisable zone names
-
Light and dark display modes
-
Three pre-programmed display themes
-
Displays compatible air-conditioner fault codes
-
Supports remote diagnostics and software updates
-
Supports up to ten Navi touchscreens on one system
-
Compatible with major ducted reverse-cycle air-conditioning brands
-
Five-year manufacturer warranty
-
No monthly fees or lock-in contracts
User Guides
Kit Includes
| Part Number | Component |
|---|
| CNAW | Navi 4.3-inch wall controller |
| C156 | 8-zone Light CPU module |
| CT24ACE | 24VAC CPU power supply |
| CSL | Screen Link Module |
| CDTS | In-duct temperature sensor |
| CFC12S | 12m shielded CAT5 cable |
Specifications
| Specification | Details |
|---|
| Product Code | C265K |
| System | iZone Navi |
| Zone Capacity | Up to 8 zones |
| Air-Conditioning Systems | 1 |
| User Interface | 4.3-inch colour touchscreen |
| Screen Resolution | 480 × 480 pixels |
| Controller Dimensions | 106 × 106 × 15mm |
| Controller Weight | 150g |
| Controller Colour | White |
| Zone Airflow Adjustment | 5% increments |
| Mobile Control | iOS and Android |
| Built-in Temperature Sensor | Yes |
| Multiple Touchscreens | Up to 10 |
| Package Dimensions | 163 W × 193 H × 155 D mm |
| Package Weight | 2.69kg |
| Warranty | 5 years |
Important Compatibility Information
The Navi system supports standard electronic and fixed constant zones. It does not support wireless or add-on room temperature sensors, multiple air-conditioning systems, voice control or expansion into iZone smart-home automation. A compatible air-conditioner interface and zone motors may be required separately.
