iZone C325A ActronAir Interface Module

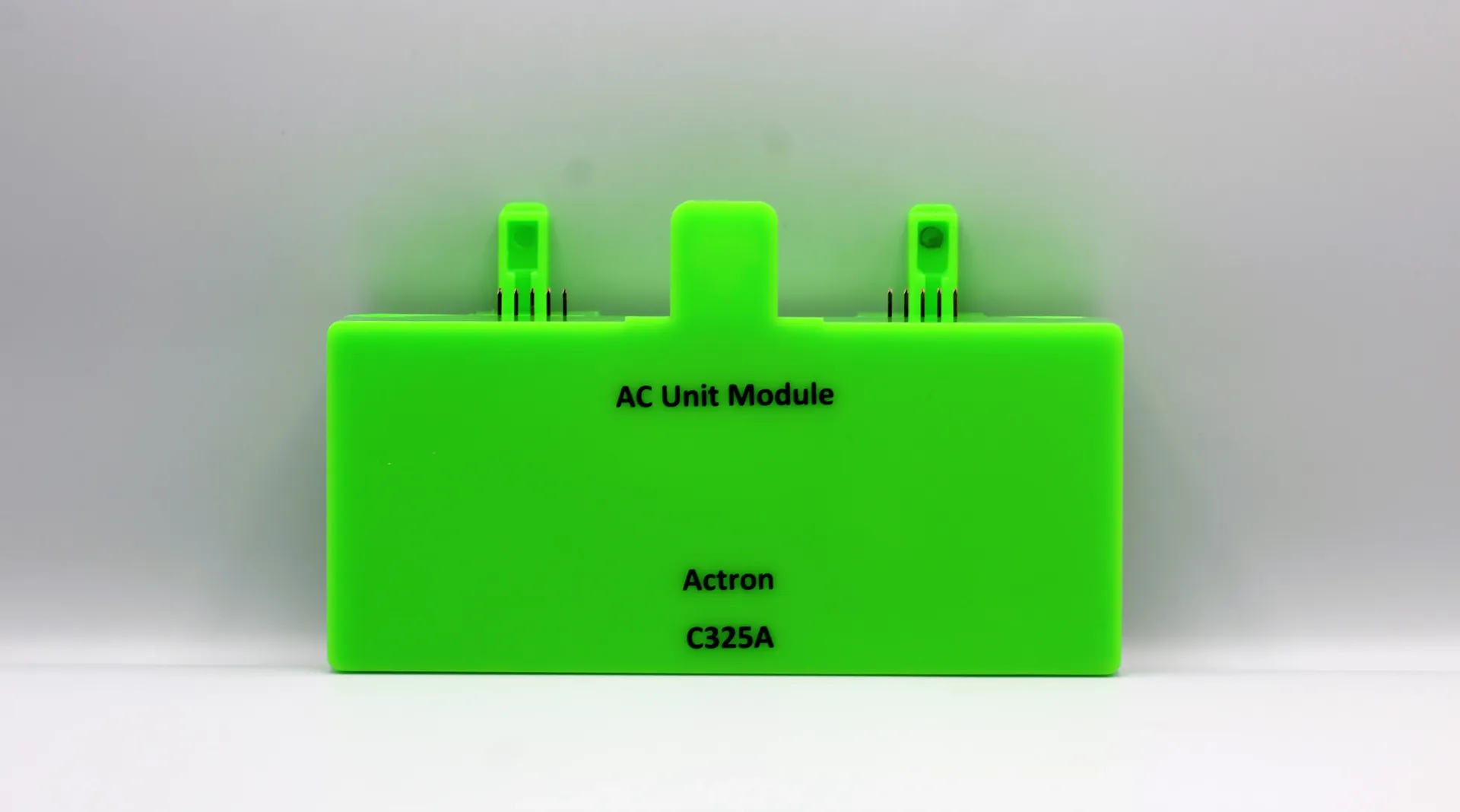

The iZone C325A is an air-conditioning interface module designed to integrate compatible ActronAir ducted systems with an iZone climate-control system.
Connected between the iZone C225 CPU and the indoor unit, the module allows compatible ActronAir equipment to be operated through an iZone wall controller and, when connected to an iZone Smart Hub, through the iZone Home app. It provides centralised control of functions such as system on/off, operating mode, temperature and fan speed, subject to the capabilities of the connected system.
Key Features
Integrates compatible ActronAir ducted systems with iZone
Connects directly to the iZone C225 CPU
Enables air-conditioner control through compatible iZone controllers
Supports control through the iZone Home app when connected to a Smart Hub
Can use return-air, zone, master or compatible wireless sensors as the controlling temperature source
Uses a shielded two-core twisted-pair communication cable
Designed specifically for compatible ActronAir UltraSlim and low-profile systems
Compatibility
| Equipment | Compatible Models |
|---|
| ActronAir Series | UltraSlim/low-profile series only |
| Indoor Model Pattern | LRE-###AS |
| Outdoor Model Pattern | URC-###AS |
| iZone CPU | C225 |
| Connection Cable | CACUCM15 |
| Indoor PCB Connection | CN40 – X/Y terminals |
Important Installation Information
Connection polarity is critical.
Connect the communication cable to the X/Y terminals through the CN40 connection on the ActronAir indoor PCB.
Do not connect the cable to the HA/HB terminals, as this may damage the iZone CPU.
Compatibility should be confirmed where the exact indoor and outdoor model numbers do not match the listed patterns.
Installation and commissioning must be completed by a suitably qualified technician.
Source: iZone ActronAir compatibility and C325A installation information
