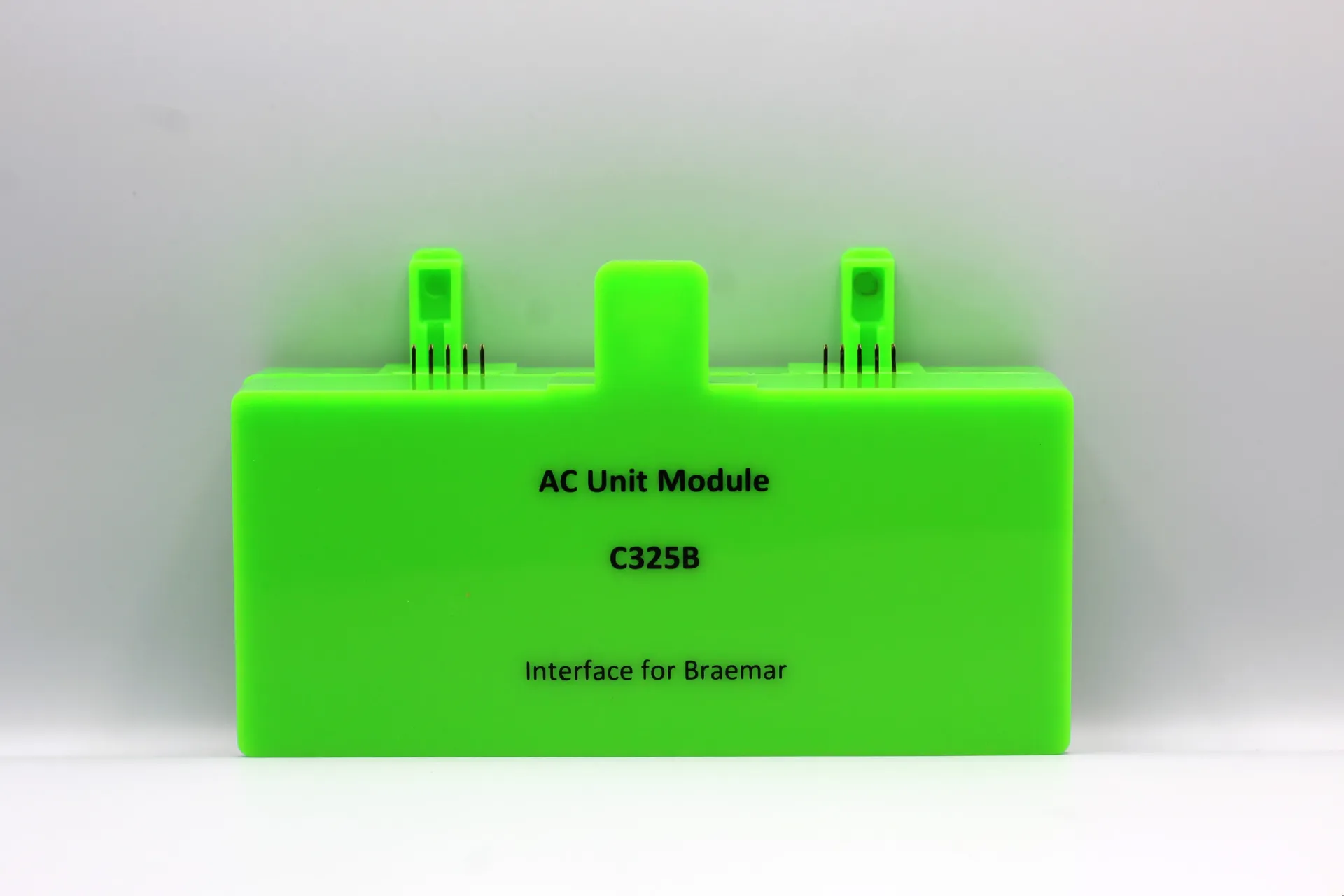

iZone C325B Braemar Air-Conditioner Interface Module
The iZone C325B is an air-conditioning interface module designed to integrate compatible Braemar single-phase inverter ducted systems with an iZone climate-control and zoning system.
Connected to the iZone C225 CPU, the C325B enables centralised control of the Braemar air conditioner through a compatible iZone wall controller. When the system includes an iZone Smart Hub, users can also control the air conditioner locally or remotely through the iZone Home app.
Key Features
Integrates compatible Braemar ducted systems with iZone
Compatible with selected 7–16kW single-phase inverter models
Connects directly to the iZone C225 CPU
Enables control of system on/off, mode, temperature and fan settings
Supports control through compatible iZone wall controllers
App control available with an iZone Smart Hub
Uses return-air temperature as the controlling sensor
Includes a short CN1 connector cable for connection to the indoor unit
Compact module clips directly onto the C225 CPU or CEXT module
Compatibility
| Equipment | Compatible Models |
|---|
| Brand | Braemar |
| System Type | Single-phase inverter ducted |
| Capacity Range | 7–16kW |
| Indoor Models | SDHV##D1S or SCHV##D1S |
| Outdoor Models | KDHV##D1S or KCHV##D1B |
| iZone CPU | C225 |
| Indoor PCB Connection | CN1 |
Module Specifications
| Specification | Details |
|---|
| Part Number | C325B |
| Power Supply | Supplied through C225 or CEXT connection |
| Communication | Braemar-specific protocol |
| Enclosure | Fire-retardant ABS |
| Operating Temperature | Up to 65°C |
| Dimensions | 119 × 65 × 32 mm when connected |
| Weight | 86 g |
Important Installation Information
The Braemar proprietary wall controller is required during initial setup.
The indoor unit must be configured to use the return-air sensor in all modes.
The iZone control setting must be enabled within the Braemar service settings.
Zone, master and RF sensors cannot be selected as the controlling sensor for the air-conditioning unit.
Connect the C325B to the indoor unit’s CN1 terminal using shielded two-core twisted-pair cable.
The supplied short connector cable must be extended to suit the installation.
X/Y communication polarity is critical.
The indoor fan static-pressure setting must be configured to suit the installed duct system.
Source: iZone C325B Braemar compatibility guide
