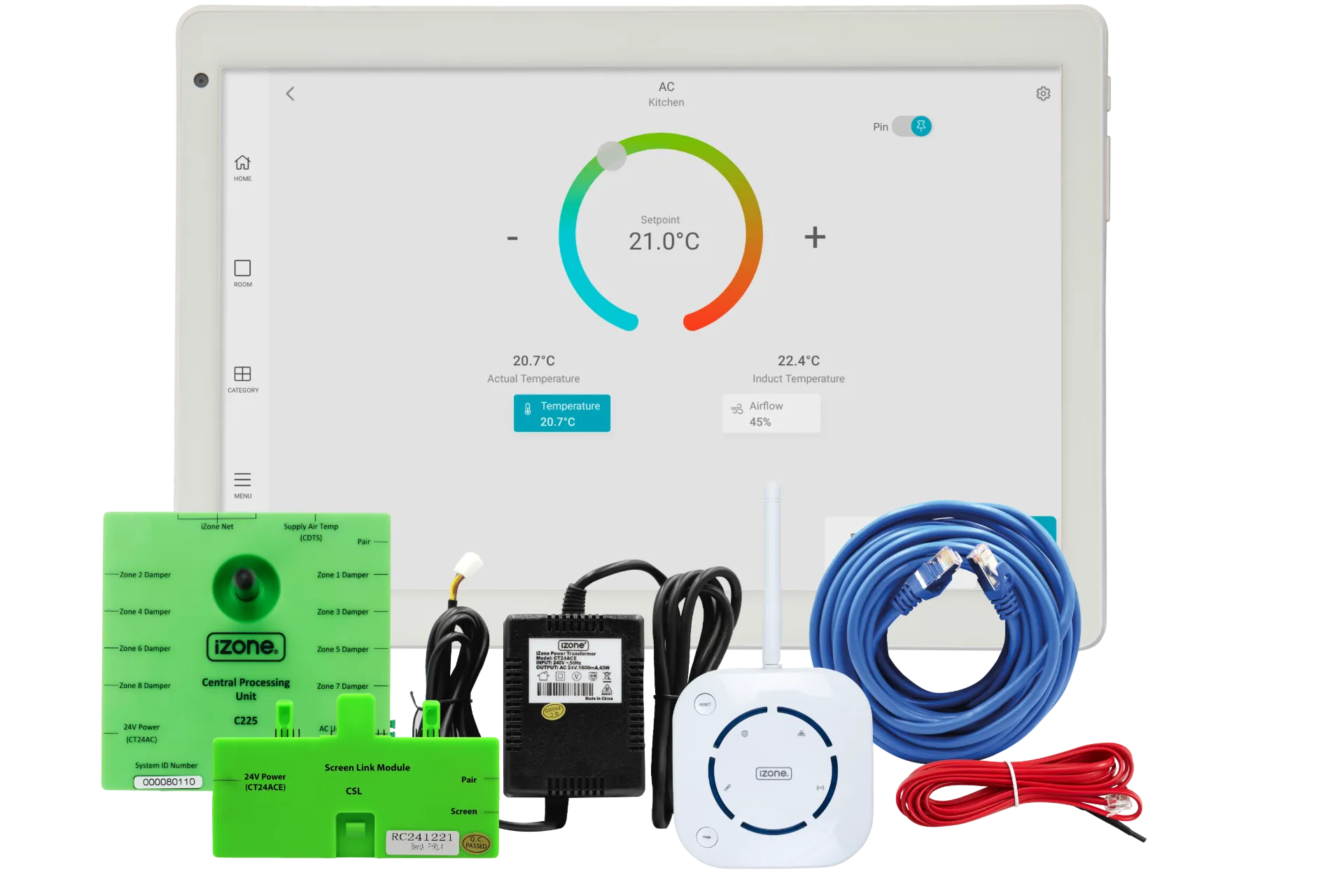

iZONE NOVA + 8 ZONE CPU + SMART HUB HARDWIRED SCREEN (No AC Module)

iZone C546K Nova 10″ CAT Zone Control Kit

The iZone C546K Nova is a premium climate-control and zoning kit featuring a large 10-inch colour touchscreen with a dedicated CAT5 connection. The wired connection carries both power and communication between the touchscreen and the included Screen Link Module, providing a neat and reliable installation.

The included eight-zone CPU controls compatible iZone damper motors and can be expanded to support up to 14 zones. An integrated Smart Hub provides Wi-Fi connectivity for control through the iZone Home app, along with remote system diagnostics and firmware support.

Key Features

• 10-inch high-resolution colour touchscreen

• Dedicated CAT5 power and communication connection

• Controls up to eight zones as supplied

• Expandable to 14 zones with an optional CEXT module

• Individual zone on/off and airflow control

• Individual temperature control with optional zone sensors

• Wi-Fi and remote access through the iZone Home app

• Remote diagnostic capability

• Supports compatible iZone air-conditioning interface modules

• Expandable to compatible iZone smart-home devices

• Suitable for residential and light-commercial ducted systems

Kit Includes

Touchscreen Specifications

Packaged Specifications

Please note: The air-conditioner interface module, zone motors, motor cables, zone extender and individual room-temperature sensors are selected separately to suit the installation.

Source: iZone C546K Nova CAT kit information
