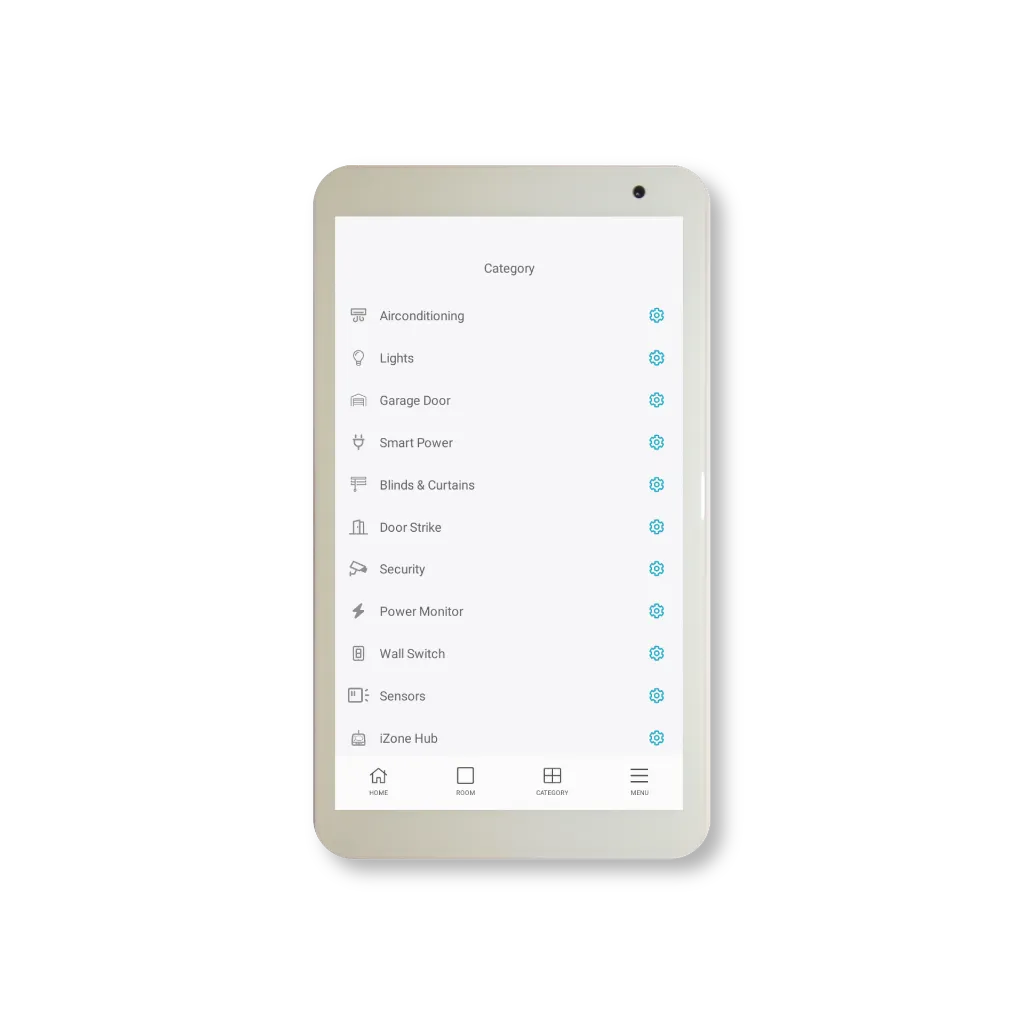

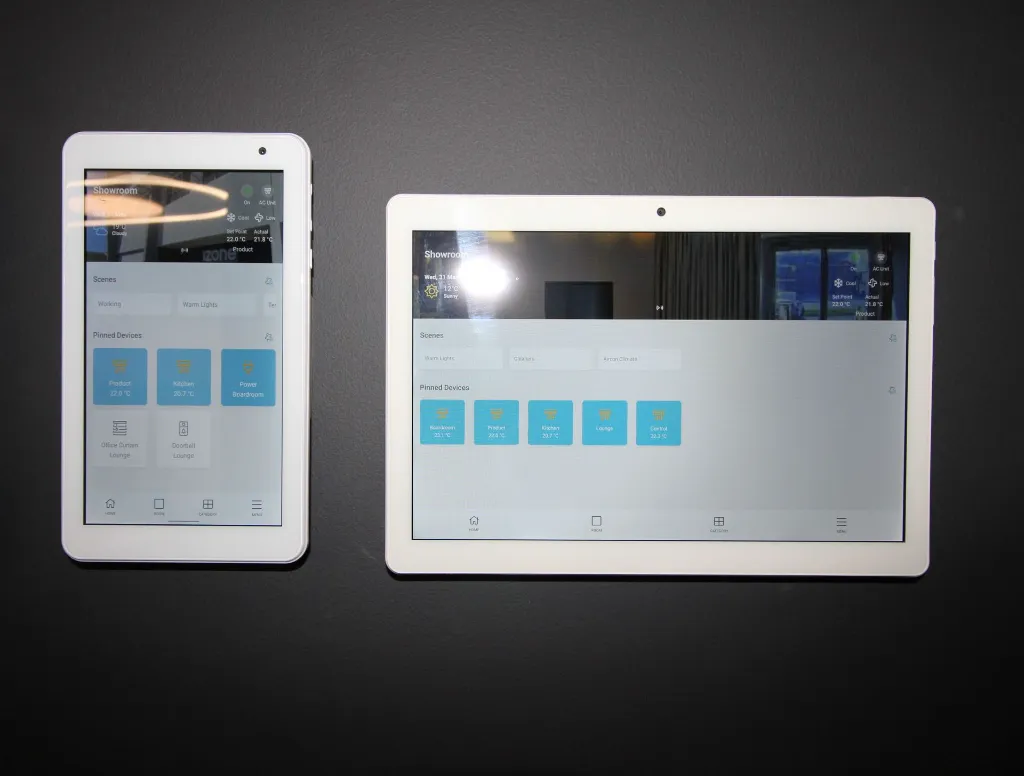

iZone CCASSW Nova Mini 7″ DC Wall Controller
The iZone CCASSW Nova Mini is a 7-inch colour touchscreen wall controller designed to provide a modern, easy-to-use interface for compatible iZone climate-control and zoning systems.
Powered through a 12V DC connection, the controller communicates wirelessly with the iZone Smart Hub to provide responsive control of the air-conditioning system and connected zones. Its high-resolution capacitive touchscreen offers clear access to system settings, zone status and climate-control functions.
Key Features
7-inch colour capacitive touchscreen
High-resolution 1920 × 1200 display
Controls compatible iZone air-conditioning and zoning systems
Wi-Fi communication with the iZone COCBH Smart Hub
Clean, compact wall-mounted design
Android-based operating system
Supports system configuration and zone management
Designed for the iZone Nova Mini C535K system
Remote diagnostics and firmware-update capability when used within a compatible connected system
Specifications
| Specification | Details |
|---|
| Part Number | CCASSW |
| Display | 7″ colour capacitive touchscreen |
| Resolution | 1920 × 1200 pixels |
| Power Supply | 12V DC, 1.5A |
| Power Connection | 2.1 mm DC connector |
| Communication | Wi-Fi 802.11 |
| Operating System | Android |
| Dimensions | 190 × 110 × 25 mm |
| Weight | 255 g |
| Built-in Sensors | None |
Please note: The CCASSW does not incorporate temperature, humidity or air-quality sensors. It requires a compatible iZone Smart Hub and 12V DC power supply to operate as part of an iZone control system.
Source: iZone CCASSW product information
