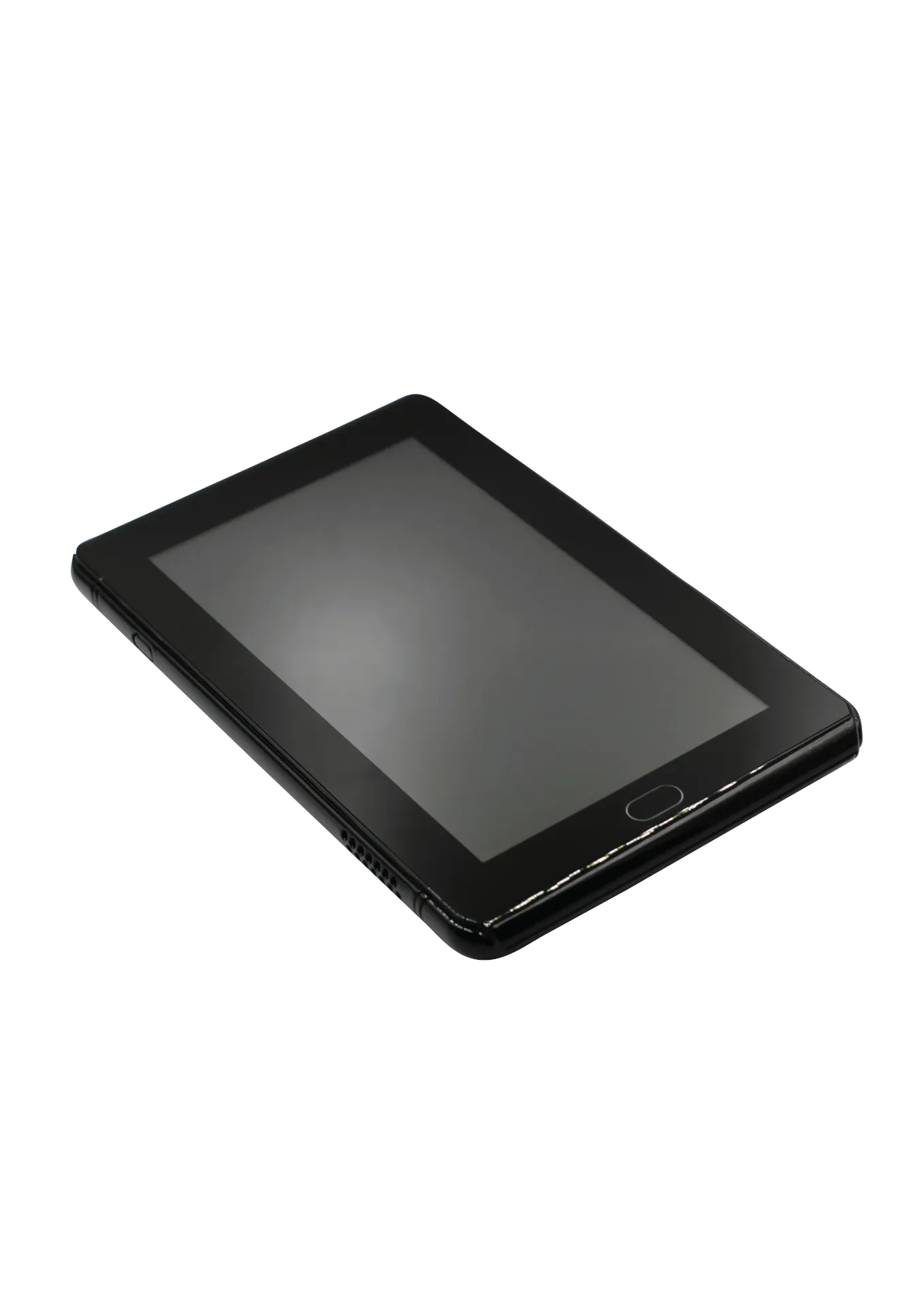

iZone CCTSLB+ Nexus+ 7-Inch Touchscreen Controller – Black
The CCTSLB+ is a black-finish version of the iZone Nexus+ 7-inch colour touchscreen wall controller. It provides central control of compatible iZone air-conditioning, zoning and smart-home systems through a wired CAT5 connection.
The Nexus+ includes built-in environmental sensing and can be selected as the controlling temperature sensor for an assigned air-conditioning zone.
Key Features
7-inch colour capacitive touchscreen
Black fascia and trim
Hardened-glass front panel
Portrait or landscape installation
Modern and classic interface options
Built-in temperature sensor
Built-in air-quality and humidity sensing
Air-conditioner on/off, mode, set-point and fan-speed control
Zone open/close and airflow adjustment
Supports individual zone temperature control
Access to favourites, schedules and sleep timers
Controls compatible iZone smart-home devices
Reset control located beneath the screen
Specifications
| Specification | Details |
|---|
| Screen | 7-inch colour capacitive touchscreen |
| Colour | Black |
| Orientation | Portrait or landscape |
| Power supply | From C225, CNEM or CISM module |
| Power and communication | RJ45 connection |
| Communication protocol | Wired CAN Bus |
| Controller dimensions | 195 W × 121 H × 12 D mm |
| Wall bracket | 144 × 95 × 4 mm |
| Wall-box fixing centres | 84 mm |
| Weight | 341 g, including bracket and trim |
Important: The CCTSLB+ requires a compatible iZone C225-based system and CAT5 control cable. When a CISM multiplexer connects multiple systems to one Nexus+ controller, its internal temperature sensor cannot be assigned to control an individual zone. Mobile app access requires a compatible COCB or COCBH Smart Hub.
Source: iZone CCTSL Nexus and Nexus+ installation guide
