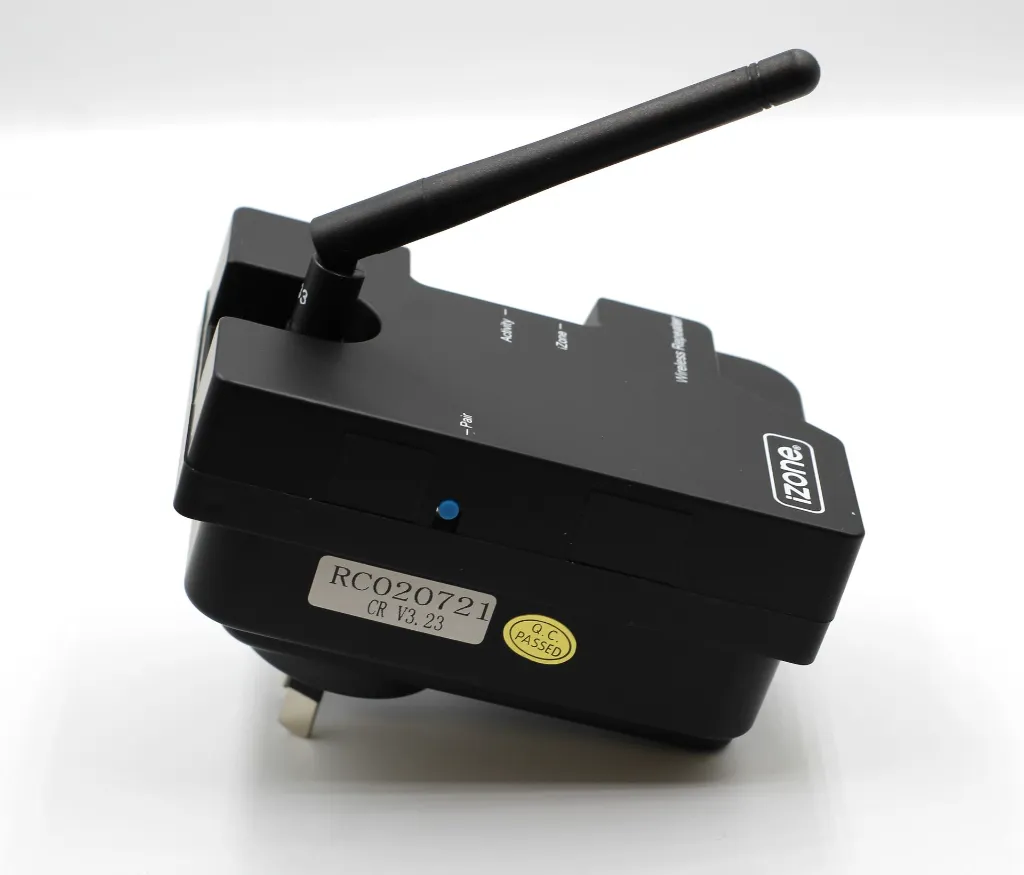

iZone CR Wireless Repeater
The iZone CR Wireless Repeater extends the operating range of compatible 433 MHz iZone wireless temperature sensors. It is ideal for larger homes, multi-storey buildings or installations where distance and building materials reduce reliable communication between wireless sensors and the C225 CPU.
Key Features
Extends the range of iZone 433 MHz wireless devices
Improves communication with compatible wireless zone sensors
Suitable for large, multi-storey or signal-restricted installations
Simple plug-in installation using a standard power outlet
Pairs directly with the iZone C225 CPU

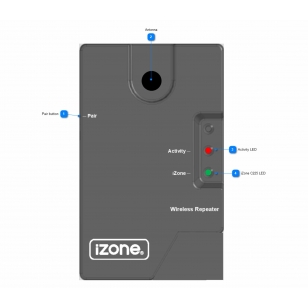

LED indicators show system communication and network activity
Compatible with supported iZone touchscreens and Nova interfaces
Compatibility
Designed for use with:
iZone C225 CPU modules
CRFSW wireless temperature sensors
CRFS2 compact wireless zone sensors
Compatible iZone 433 MHz wireless devices
Specifications
| Specification | Details |
|---|
| Input power | 240V AC, approximately 0.3A |
| Power adaptor output | 5V DC, 1A |
| Wireless communication | 433 MHz RF |
| Enclosure | Fire-retardant ABS plastic |
| Maximum operating temperature | 45°C |
| Dimensions | 60 × 61 × 110 mm |
| Weight | 213 g |
Installation Information
Install the repeater into a power outlet in the occupied area, normally within approximately 10–15 metres of the C225 CPU. Position the antenna securely and vertically for the best wireless performance.
The repeater can be paired using the C225 CPU pairing button or through a compatible iZone touchscreen or Nova controller.
Source: iZone CR Wireless Repeater documentation
