Fasco J03RF03T 1.5W 240V Clockwise Frost-Free Refrigeration Fan Motor
The Fasco J03RF03T is a compact 1.5W shaded-pole fan motor designed for frost-free refrigeration equipment. Operating from a 240V single-phase supply, it delivers approximately 1500 RPM with clockwise rotation.
It features an open-frame construction, stainless-steel shaft, Class B insulation and impedance protection. Its compact dimensions and standard refrigeration-motor mounting arrangement make it suitable for compatible refrigerator evaporator-fan assemblies.

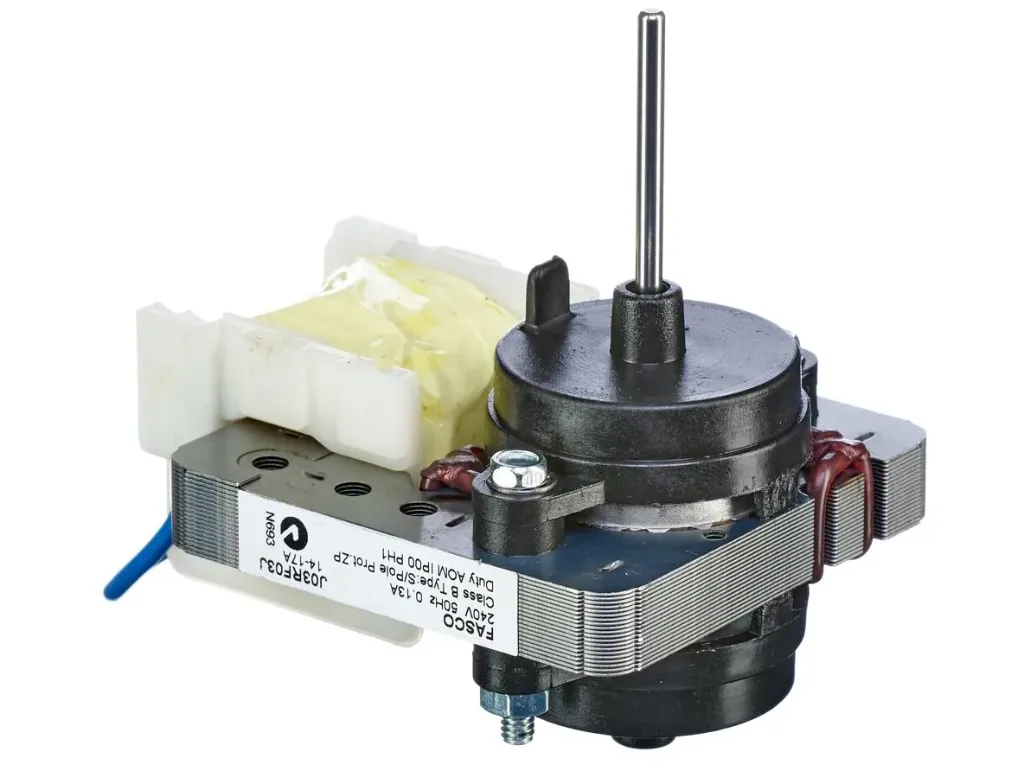

Model identification: The attached Fasco drawing and motor label show J03RF03J. Confirm whether J03RF03T is your internal SKU or a separate motor variant before publishing.
Features
1.5W rated output
240V single-phase operation
Approximately 1500 RPM
Clockwise rotation
Shaded-pole motor
Air-over-motor duty
Class B insulation
ZP impedance protection
Stainless-steel shaft
Sintered bearing
Compact open-frame construction
Two electrical terminals
No external capacitor specified
Designed for refrigeration applications
Specifications
| Specification | Details |
|---|
| Manufacturer | Fasco Australia |
| Requested Model | J03RF03T |
| Model Shown on Specification Sheet | J03RF03J |
| Product Type | Frost-free refrigeration fan motor |
| Motor Type | Shaded-pole |
| Rated Output | 1.5W |
| Supply Voltage | 240V AC |
| Frequency | 50Hz |
| Phase | Single-phase |
| Number of Poles | 2 |
| Rated Current | 0.13A |
| Rated Speed | 1500 ±100 RPM |
| Rotation | Clockwise as shown on the manufacturer drawing |
| Duty | AOM – air-over-motor |
| Enclosure | Standard open-frame bobbin |
| Protection Rating | IP00 |
| Insulation Class | Class B |
| Motor Protection | ZP impedance protection |
| Winding | Single-speed shaded-pole |
| Capacitor | No start or run capacitor specified |
| Bearing | Sintered bearing |
| Bearing Lubrication | Synfluid Gulf oil |
| Shaft Material | Stainless steel 310 / AISI 201 |
| Shaft Diameter | 3.170–3.175mm |
| Mounting | Screws and end brackets |
| Mounting Thread | 5/32-inch BSW |
| Earth Provision | No separate earth connection specified |
| Performance Specification | SPM53018-01 |

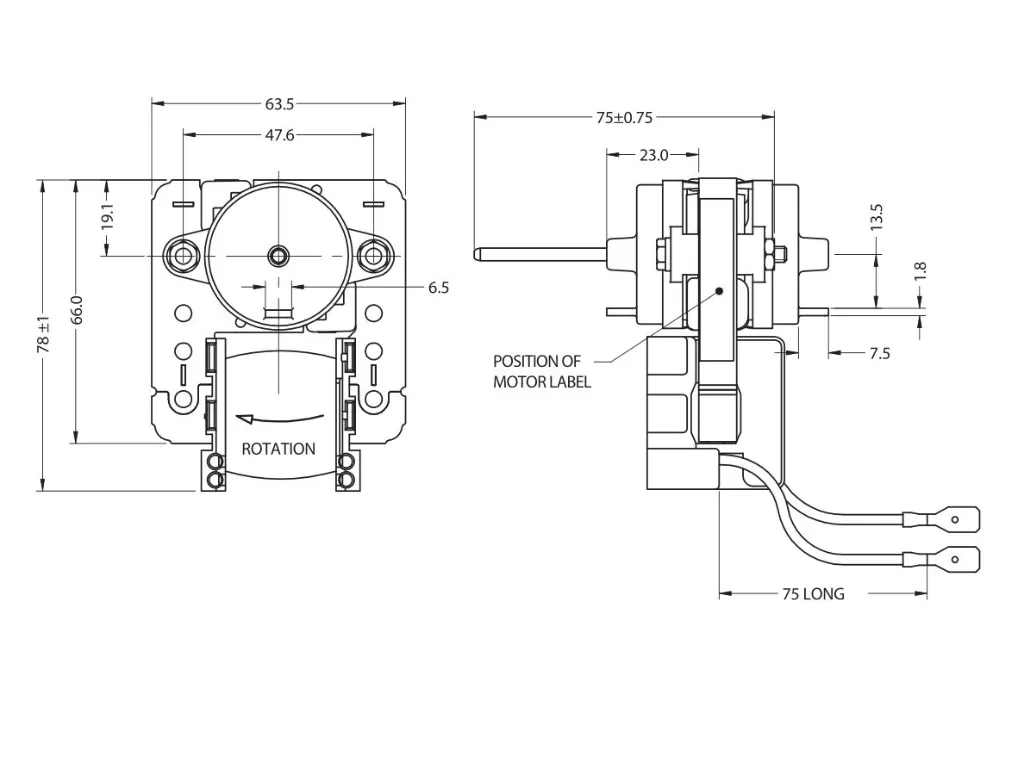

Dimensions
| Dimension | Measurement |
|---|
| Overall motor length | 89mm |
| Frame width | 63.5mm |
| Overall height | 78 ±1mm |
| Horizontal mounting dimension | 47.6mm |
| Vertical mounting dimension | 66.0mm |
| Shaft diameter | 3.170–3.175mm |
| Shaft end radius | 0.5mm |
| Shaft end angle | 15° |
| Shaft end play | 0.1–2.0mm |
| Supply lead length | 75mm +10/−5mm |
Electrical Connection
| Connection Detail | Specification |
|---|
| Cable Type | V90HT PVC light-duty cable |
| Conductor Size | 24/0.2mm |
| Lead Colour | Blue |
| Minimum Cable Rating | 250V AC |
| Number of Terminals | 2 |
| Terminal Type | Utilux H1192E or equivalent |
| Separate Earth Lead | Not specified |
Electrical connection must follow the refrigeration equipment manufacturer’s wiring diagram and applicable electrical regulations.
Typical Applications
Frost-free refrigerators
Refrigerator evaporator fans
Refrigerated cabinet fan assemblies
Domestic refrigeration equipment
OEM refrigeration fan applications
Replacement installations with matching dimensions and rotation
Important Information
The attached drawing identifies the motor as J03RF03J, rather than J03RF03T.
Confirm the model printed on the existing motor before ordering or publishing this description.
Rotation is clockwise as depicted in the Fasco drawing; confirm the required viewing direction.
This is an air-over-motor design and relies on suitable airflow for cooling.
The motor is rated IP00 and has no protection against contact or water ingress.
Confirm the shaft, mounting centres, rotation and terminal arrangement against the existing motor.
Installation and electrical work must be completed by a suitably qualified technician.
Source: [Fasco J03RF03 Frost-Free Fan Motor Specification](sandbox:/workspace/scratch/d122122e4731/upload/Specification Sheet - J03RF03 Frost Free Fan Motor (Clock).pdf).
