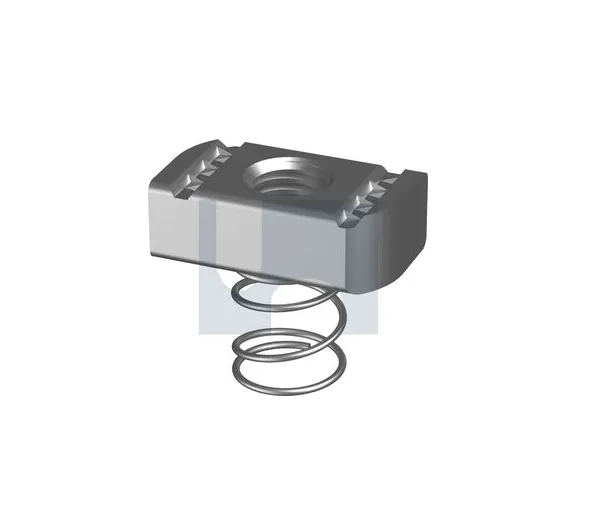

Hobson 316 Stainless Steel M10 Channel Nut with Short Spring
The Hobson NS16PSSCM10 is an M10 strut channel nut manufactured from 316 stainless steel and fitted with a short spring. Designed for shallow 41 × 21mm strut channel, the spring holds the nut securely in position during installation, allowing easier alignment and adjustment.
Serrated grooves across the upper face grip the inside of the channel to help prevent unwanted movement or rotation when tightened. It is suitable for securing cable trays, cable ladders, channel supports and strut fittings in outdoor or corrosion-prone environments.
Features
316 stainless steel construction
M10 female thread
Short spring for shallow strut channel
Spring holds the nut in position during installation
Serrated face helps resist movement and rotation
Easy to position and adjust within the channel
Suitable for 41 × 21mm strut channel
Ideal for outdoor and corrosion-prone applications
Specifications
| Specification | Details |
|---|
| Brand | Hobson |
| Part Number | NS16PSSCM10 |
| Product Type | Strut Channel Nut with Short Spring |
| Material | 316 Stainless Steel |
| Thread Size | M10 |
| Nut Width (A) | 19mm |
| Nut Length (B) | 34.5mm |
| Nut Thickness (C) | 9.2mm |
| Spring Length (L) | 19mm |
| Spring Diameter (d2) | 18mm |
| Compatible Channel | Shallow 41 × 21mm strut channel |
Source: Hobson Strut Channel Nut Short Spring product document.
