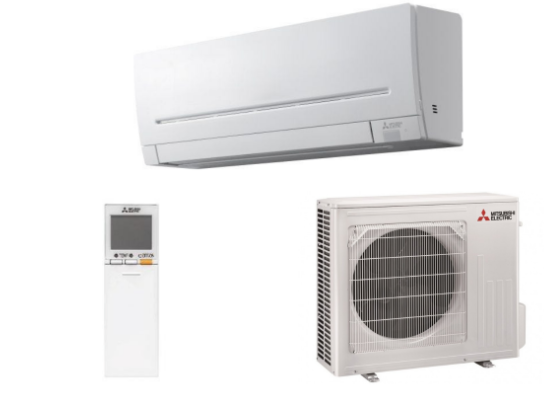

The Mitsubishi Electric MSZ-AP80VGKD2 reverse-cycle split system provides powerful heating and cooling for large living rooms, offices and open-plan areas. Its streamlined wall-mounted design and wide airflow range help distribute conditioned air effectively throughout larger spaces.
Built-in Wi-Fi enables convenient control from a compatible smartphone or tablet. Mitsubishi Electric’s Dual Barrier Coating helps reduce dust and greasy dirt build-up on the heat exchanger and internal surfaces, keeping the system cleaner for longer.
Key Features
7.8 kW rated cooling capacity
9.0 kW rated heating capacity
Quiet operation from 30 dBA
Built-in Wi-Fi control
Mitsubishi Electric inverter technology
Dual Barrier Coating
Adjustable vertical and horizontal airflow
Demand Response capable
R32 refrigerant
Wireless remote controller included
Natural white finish
Indoor & Outdoor
| Specification | Details |
|---|
| Indoor Model | MSZ-AP80VGKD2-A2 |
| Indoor Dimensions | 325 H × 1,100 W × 257 D mm |
| Indoor Weight | 17 kg |
| Outdoor Model | MUZ-AP80VGD2-A2 |
| Outdoor Dimensions | 880 H × 840 W × 330 D mm |
| Outdoor Weight | 53 kg |
| Pipe Sizes | 6.35 mm liquid / 12.70 mm gas |
| Refrigerant | R32 |
| Cooling Capacity | 7.8 kW rated |
| Heating Capacity | 9.0 kW rated |
| Air Flow | Cooling: 160–342 L/s; Heating: 170–320 L/s |
| Power Supply | Single phase |
| Breaker Size | 20 A |
| Maximum Pipe Length | 30 m |
| Maximum Height Difference | 15 m |
The kit includes the matched Mitsubishi Electric indoor and outdoor units. Installation must be completed by a suitably licensed air-conditioning installer.
