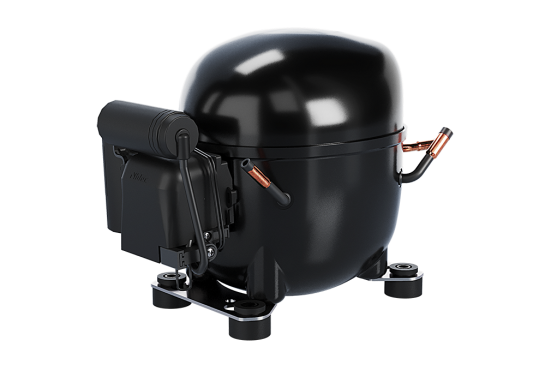

Embraco NEU2168U-861FA51 Hermetic Compressor – Code Correction Required
The supplier identifier contains a model/code mismatch: Embraco associates 861FA51 with NEK6181U. The NEU2168U reference specifications below apply to code 863IA51 only.
Technical Specifications – Reference Code 863IA51
| Specification | Details |
|---|
| Requested identifier | NEU2168U-861FA51 |
| Documented model | NEU2168U |
| Reference engineering code | 863IA51 |
| Compressor type | Hermetic reciprocating, fixed speed |
| Application / refrigerant | LBP / R290 |
| Reference power supply | 220–240 V, single phase, 50 Hz |
| Nominal horsepower | 3/4 HP |
| Displacement | 16.8 cm³ |
| Suction / discharge diameters | 8.1 / 6.1 mm |
| Shell dimensions (W × D × H) | 162 × 199 × 201.1 mm |
| Net weight | 11.6 kg |
Example Performance – Reference Code 863IA51, R290, 50 Hz
ASHRAE conditions: −23.3°C evaporating, +54.4°C condensing, +32.2°C return gas and +32.2°C liquid temperature.
| Performance | Details |
|---|
| Cooling capacity | 791 W |
| Power input | 508 W |
| Operating current | 2.43 A at 220 V |
| Performance status | OEM tested for reference code |
Selection note: Confirm the physical compressor’s nameplate and correct the supplier identifier before publishing.
Manufacturer sources: Embraco NEU2168U reference record | Reference-code drawing
