The Mitsubishi Electric PACZC04ONOFFWLKIT provides integrated control of up to four zones on a compatible Mitsubishi Electric ducted air-conditioning system.
The system allows unused zones to be switched off and uses available room sensors to average the temperature across active zones. Its high-resolution touchscreen provides central control, while the included Wi-Fi interface enables remote operation through the Mitsubishi Electric Wi-Fi Control app.
The zone interface incorporates a 24 V AC transformer and supports compatible on/off damper motors without requiring a separate transformer.
Key Features
-
Controls up to four on/off zones
-

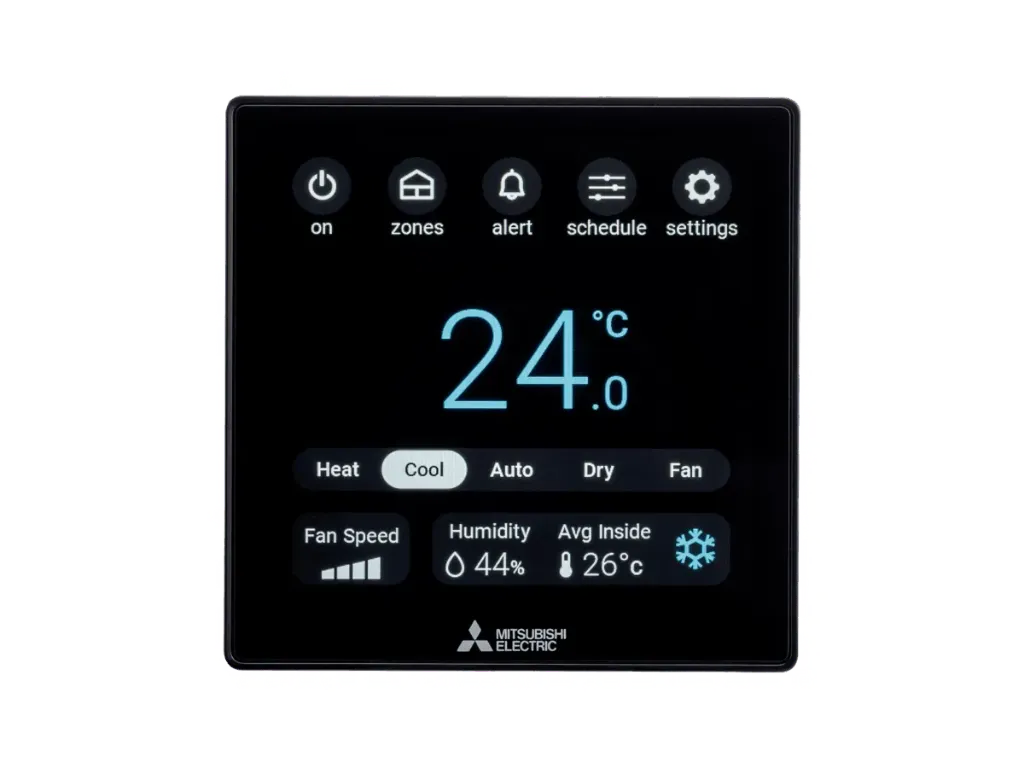

High-resolution touchscreen wall controller
-
Two wireless temperature and humidity sensors
-
Wireless sensor receiver included
-
Wi-Fi interface included
-
Temperature averaging across active zones
-
Air-balancing function
-
Common or spill-zone configuration
-
Weekly scheduling
-
Filter, battery and service notifications
-
Dry-mode humidity control
-
Bluetooth-assisted installer commissioning
-
Supports compatible third-party on/off dampers
-
Retrofit-friendly design

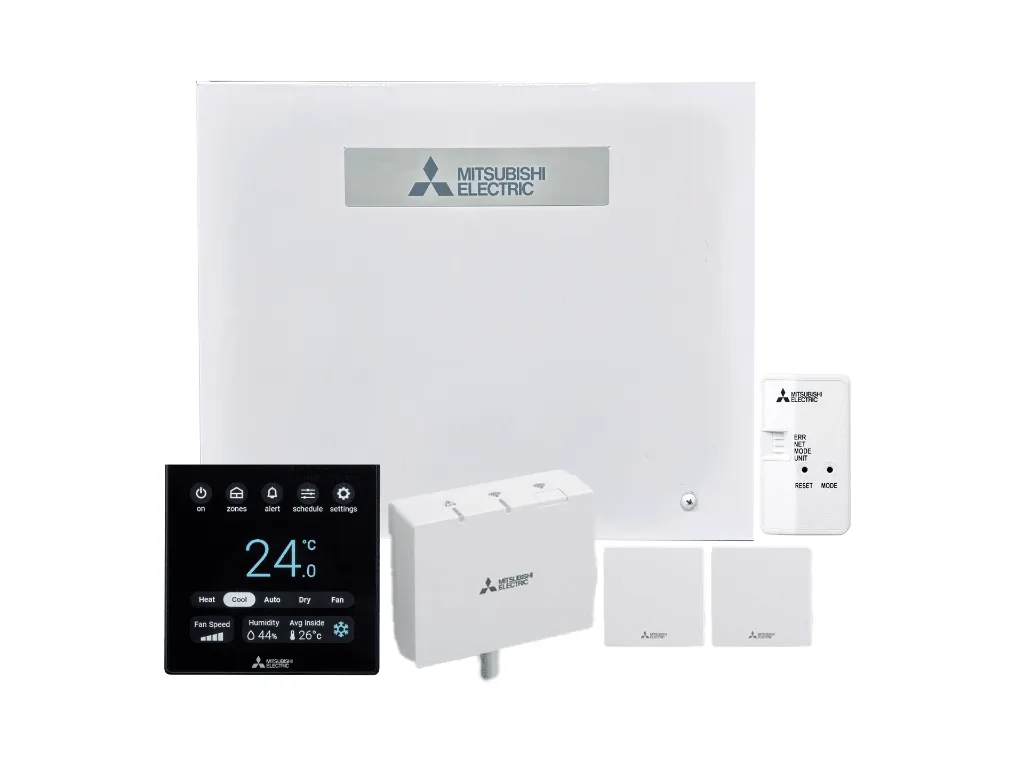

Kit Contents
| Quantity | Part Number | Description |
|---|
| 1 | PAC-ZC04S240C-A | Four-zone on/off damper-control interface with 24 V AC transformer |
| 1 | PAR-ZM01A-A | Smart Zone touchscreen wall controller |
| 1 | PAR-ZR01R-1 | Wireless sensor and zone-controller receiver |
| 2 | PAR-ZR01S-A | Wireless temperature and humidity sensors |
| 1 | MAC-588IF-E | Mitsubishi Electric Wi-Fi interface |
Expandable Options
| Part Number | Description |
|---|
| PAR-ZR01S-A | Additional wireless temperature and humidity sensor |
| PAR-ZR01AW-A | White wireless zone remote with temperature and humidity sensing |
| PAR-ZR01AB-A | Black wireless zone remote with temperature and humidity sensing |
| PAC-SE42TS-E | Wired room-temperature sensor |
The wireless receiver supports up to ten compatible wireless devices, while up to four wired temperature sensors can be connected to the zone-control system.
Zone-control equipment only. Zone dampers and actuators are not included. The kit is designed for compatible Mitsubishi Electric ducted systems and requires installation and commissioning by a suitably qualified technician.
