The Mitsubishi Electric PACZC10LINEARWLKIT provides individual temperature and airflow control for up to ten zones on a compatible Mitsubishi Electric ducted air-conditioning system.
The linear interface progressively adjusts each zone damper to maintain the selected room temperature. This provides smoother airflow control, reduces temperature fluctuations and allows different temperature settings across individual zones.
The high-resolution touchscreen provides central control, while the included Wi-Fi interface enables remote system and zone operation through the Mitsubishi Electric Wi-Fi Control app.
Key Features
-
Controls up to ten linear zones
-
Individual zone temperatures in 0.5°C increments
-
Automatic linear damper modulation
-
Adaptive temperature control
-
Manual zone airflow adjustment
-
Dynamic spill-zone control
-
High-resolution touchscreen controller
-
Four wireless temperature and humidity sensors
-
Wireless receiver included
-
Wi-Fi interface included
-
Air-balancing function
-
Common or spill-zone configuration
-
Weekly scheduling
-
Dry-mode humidity control
-
Smart filter, battery and service notifications
-
Bluetooth-assisted installer commissioning
-
Integrated 24 V AC transformer
Kit Contents

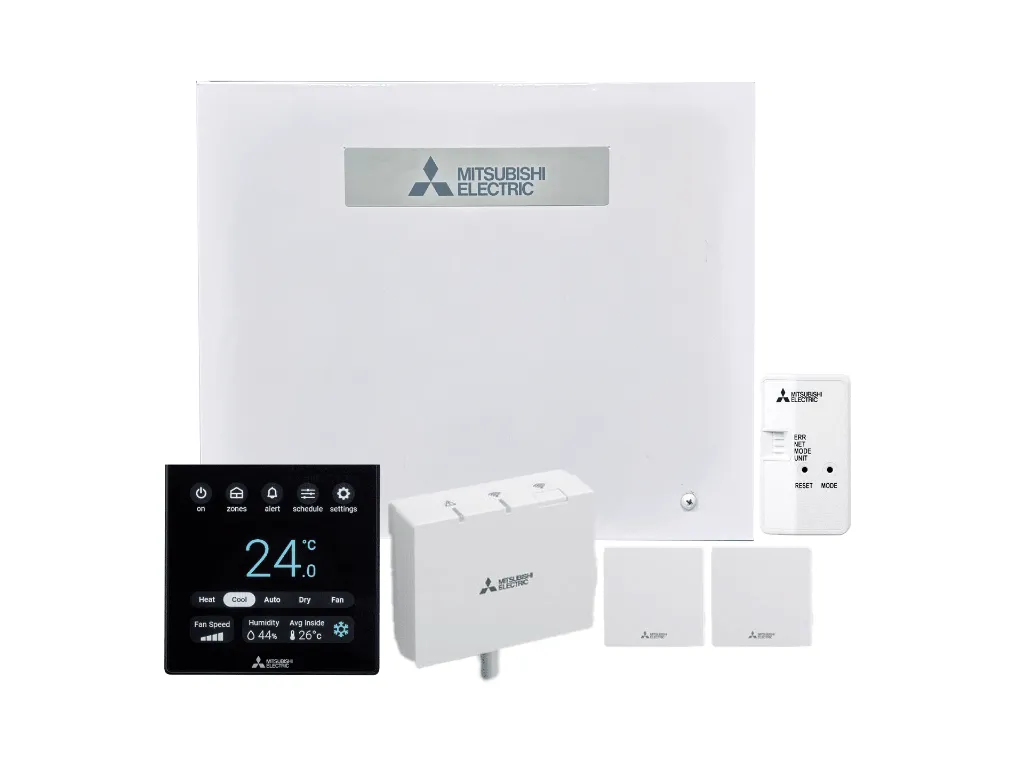

| Quantity | Part Number | Description |
|---|
| 1 | PAC-ZC10L240C-A | Ten-zone linear damper-control interface with 24 V AC transformer |

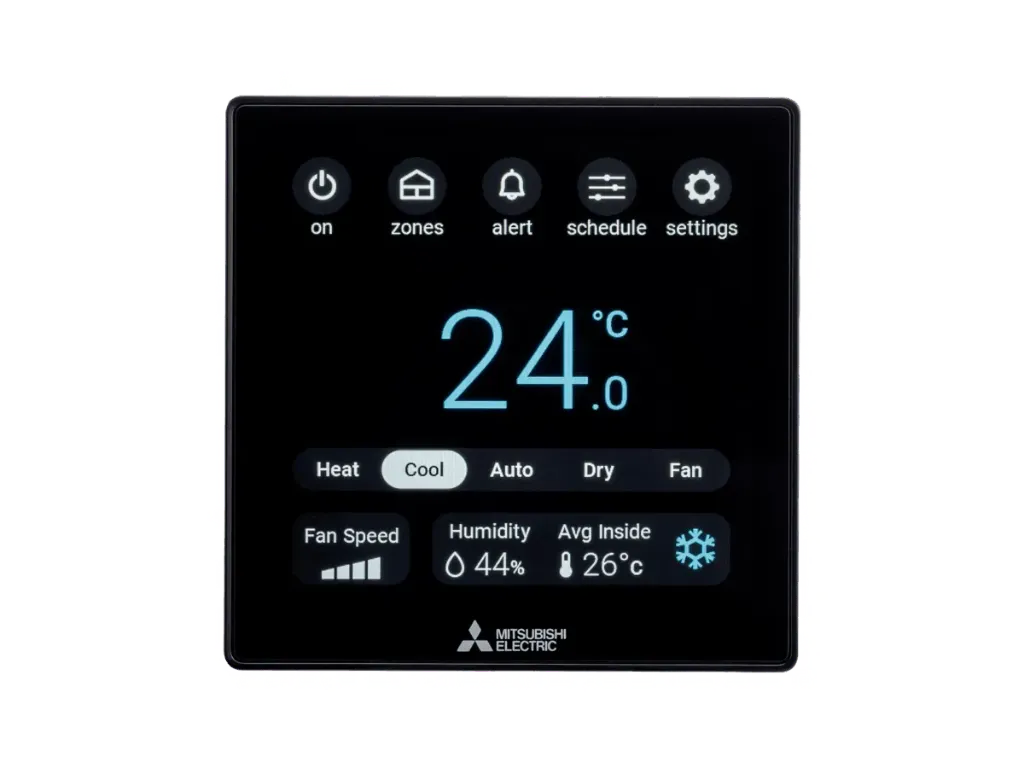

| 1 | PAR-ZM01A-A | Smart Zone touchscreen wall controller |
| 1 | PAR-ZR01R-1 | Wireless sensor and zone-controller receiver |
| 4 | PAR-ZR01S-A | Wireless temperature and humidity sensors |
| 1 | MAC-588IF-E | Mitsubishi Electric Wi-Fi interface |
Component Specifications
| Component | Dimensions |
|---|
| Zone Interface | 278 H × 336 W × 69 D mm |
| Touchscreen Controller | 86 H × 86 W × 23.6 D mm |
| Wireless Receiver | 76 H × 96 W × 30 D mm |
| Wireless Sensor | 56 H × 56 W × 15.5 D mm |
Expandable Options
| Part Number | Description |
|---|
| PAR-ZR01S-A | Additional wireless temperature and humidity sensor |
| PAR-ZR01AW-A | White wireless zone remote with temperature and humidity sensing |
| PAR-ZR01AB-A | Black wireless zone remote with temperature and humidity sensing |
| PAC-SE42TS-E | Wired room-temperature sensor |
The wireless receiver supports up to ten compatible wireless devices. Up to four wired temperature sensors can also be connected to the zone-control system.
Zone-control equipment only. Linear zone dampers and actuators are not included. Compatible 24 V linear damper motors must be selected separately. Installation and commissioning must be completed by a suitably qualified technician.
