The Mitsubishi Electric PACZC10ONOFFWLKIT provides control of up to ten zones on a compatible Mitsubishi Electric ducted air-conditioning system.
Individual zones can be switched on or off, allowing conditioned air to be directed only to occupied areas. The system uses available sensors across active zones to calculate an averaged temperature for controlling the air conditioner’s single setpoint.
The high-resolution touchscreen provides central control, while the included Wi-Fi interface enables remote system and zone operation through the Mitsubishi Electric Wi-Fi Control app.
Key Features
-
Controls up to ten on/off zones
-
Switch individual zones on or off
-
Temperature averaging across active zones
-
High-resolution touchscreen wall controller
-
Four wireless temperature and humidity sensors
-
Wireless receiver included
-
Wi-Fi interface included
-
Air-balancing function
-
Common or spill-zone configuration
-
Weekly scheduling
-
Dry-mode humidity control
-
Smart filter, battery and service notifications
-
Bluetooth-assisted installer commissioning
-
Supports compatible third-party on/off dampers
-
Integrated 24 V AC transformer
Kit Contents

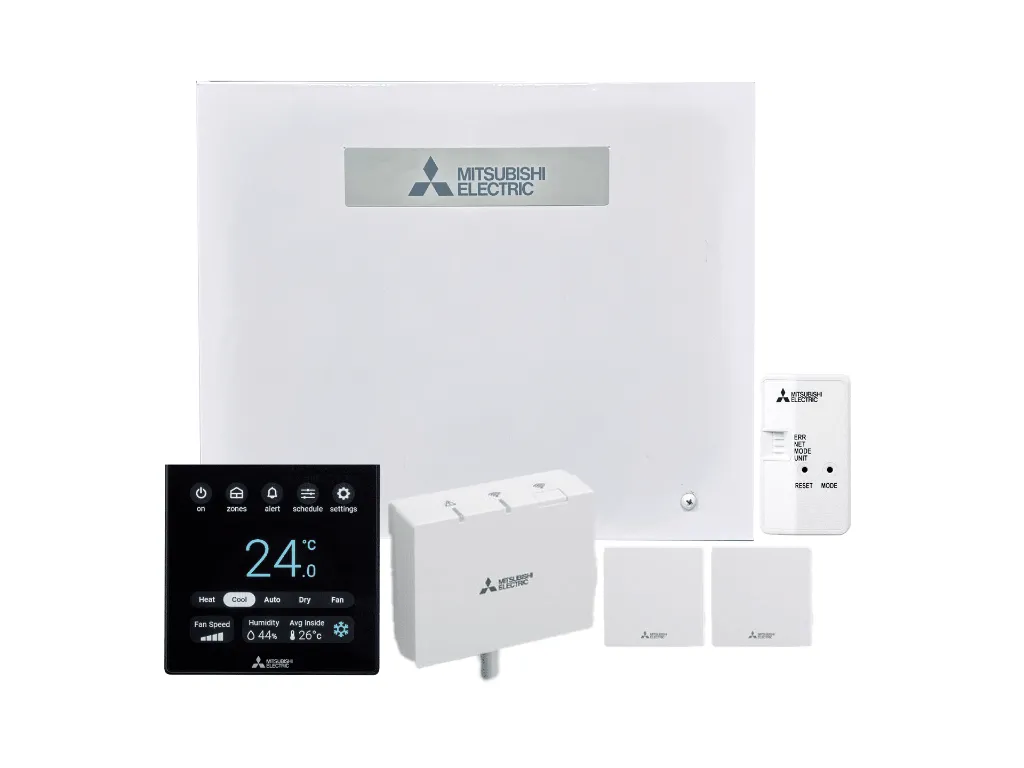

| Quantity | Part Number | Description |
|---|
| 1 | PAC-ZC10S240C-A | Ten-zone on/off damper-control interface with 24 V AC transformer |

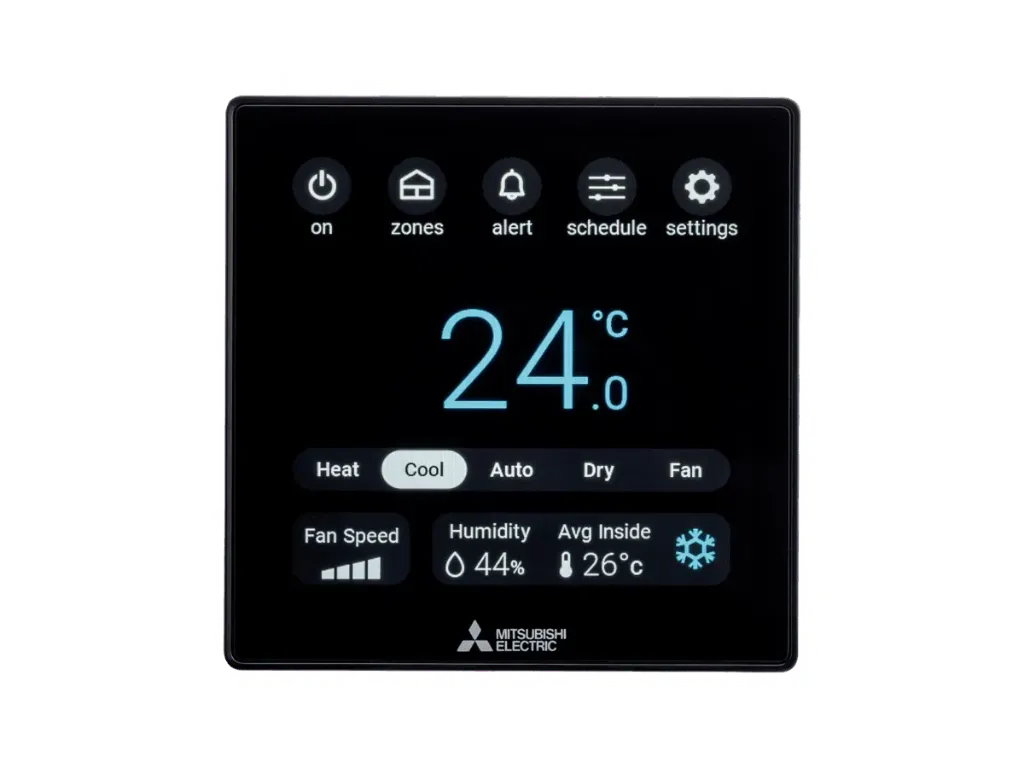

| 1 | PAR-ZM01A-A | Smart Zone touchscreen wall controller |
| 1 | PAR-ZR01R-1 | Wireless sensor and zone-controller receiver |
| 4 | PAR-ZR01S-A | Wireless temperature and humidity sensors |
| 1 | MAC-588IF-E | Mitsubishi Electric Wi-Fi interface |
Component Specifications
| Component | Dimensions |
|---|
| Zone Interface | 278 H × 336 W × 69 D mm |
| Touchscreen Controller | 86 H × 86 W × 23.6 D mm |
| Wireless Receiver | 76 H × 96 W × 30 D mm |
| Wireless Sensor | 56 H × 56 W × 15.5 D mm |
Expandable Options
| Part Number | Description |
|---|
| PAR-ZR01S-A | Additional wireless temperature and humidity sensor |
| PAR-ZR01AW-A | White wireless zone remote with temperature and humidity sensing |
| PAR-ZR01AB-A | Black wireless zone remote with temperature and humidity sensing |
| PAC-SE42TS-E | Wired room-temperature sensor |
The wireless receiver supports up to ten compatible wireless devices. Up to four wired temperature sensors can also be connected.
Zone-control equipment only. Zone dampers and actuators are not included. Compatible 24 V on/off damper motors must be selected separately. Unlike the linear system, this kit switches dampers on or off and does not modulate them to maintain separate temperatures in each zone.
