Mitsubishi Electric PEADM100JAADVKIT PEAD-M 10.0kW Reverse Cycle Ducted Air Conditioning System
The Mitsubishi Electric PEADM100JAADVKIT is a PEAD-M Series low-profile mid-static ducted reverse cycle air conditioning system designed for residential ducted installations, open-plan living areas and light commercial applications.

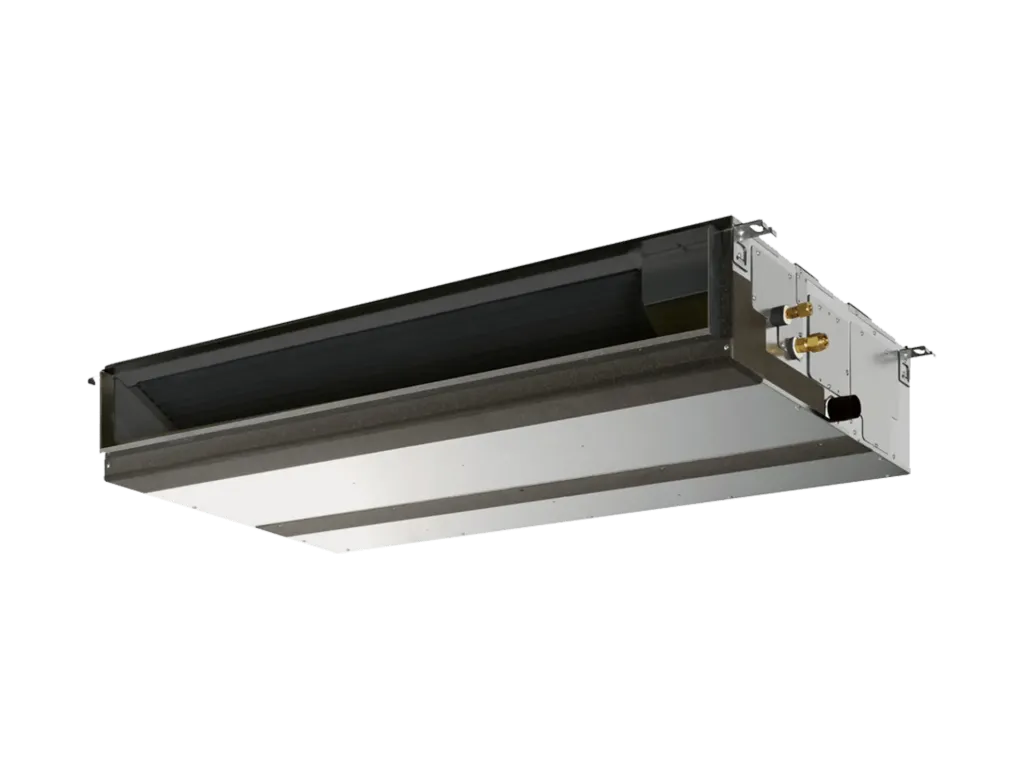

Using the PEAD-M100JAAD ceiling concealed indoor unit with the PUZ-M100VKA2 single phase outdoor unit, this ducted set delivers 10.0kW rated cooling and 12.5kW rated heating. The PEAD-M Series uses a slim indoor unit design with a height of only 250mm, making it a practical option where ceiling space is limited.
Key Features
Mitsubishi Electric PEAD-M Series ducted system
10.0kW rated cooling capacity
12.5kW rated heating capacity
Reverse cycle heating and cooling
R32 refrigerant
Ceiling concealed ducted indoor unit
Low-profile 250mm indoor unit height
35 / 50 / 70 / 100 / 125Pa external static pressure
Three fan speed options
Built-in condensate pump
Lightweight indoor unit design for easier installation
Optional Wi-Fi control interface and app compatibility
Optional PAR-41MAA wall mounted controller
DC inverter technology
DC fan motor
Cleaning-free pipe re-use technology listed in brochure function table
Demand Response capable
Flare connection
5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric

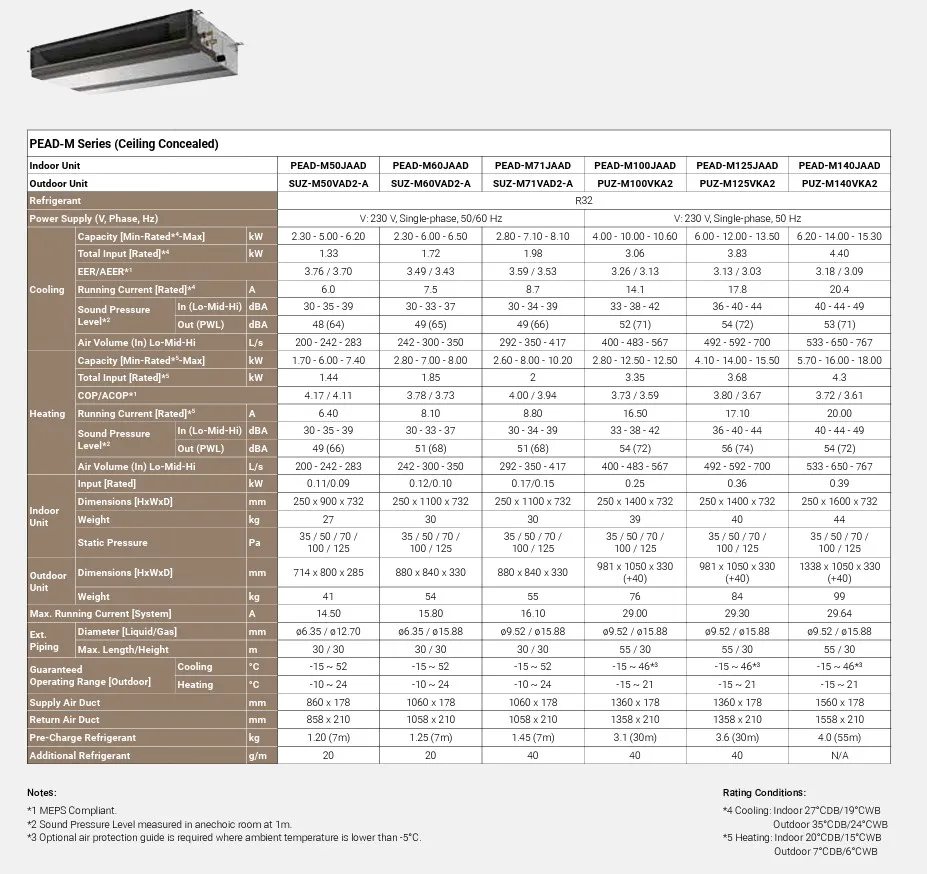

Specifications
| Specification | Details |
|---|
| Product Code / Kit Code | PEADM100JAADVKIT |
| Brand | Mitsubishi Electric |
| Series / Range | PEAD-M Series |
| System Type | Ducted Reverse Cycle Air Conditioning System |
| Indoor Unit | PEAD-M100JAAD |
| Outdoor Unit | PUZ-M100VKA2 |
| Cooling Capacity | 10.0kW rated |
| Heating Capacity | 12.5kW rated |
| Cooling Capacity Range | 4.00–10.60kW |
| Heating Capacity Range | 2.80–12.50kW |
| Power Source / Phase | 230V, Single Phase, 50Hz |
| Refrigerant | R32 |
| Indoor Unit Type | Ceiling Concealed Ducted Indoor Unit |
| External Static Pressure | 35 / 50 / 70 / 100 / 125Pa |
| Controller | PAR-41MAA wall mounted controller listed as optional |
| Wi-Fi Option | Optional Wi-Fi control interface and app |
| Zone Control Option | Optional zone control supported in Mitsubishi Electric ducted range |
| Liquid Pipe Size | Ø9.52mm |
| Gas Pipe Size | Ø15.88mm |
| Maximum Pipe Length | 55m |
| Maximum Vertical Separation / Height | 30m |
| Pre-Charged Pipe Length | 30m |
| Indoor Dimensions | 250mm H x 1400mm W x 732mm D |
| Outdoor Dimensions | 981mm H x 1050mm W x 330mm D +40mm |
| Indoor Weight | 39kg |
| Outdoor Weight | 76kg |
| Airflow | 400 / 483 / 567 L/s |
| Indoor Sound Pressure Level | 33 / 38 / 42 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Cooling | 52 dB(A) / 71 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Heating | 54 dB(A) / 72 dB(A) |
| Supply Air Connection Size | 1360mm x 178mm |
| Return Air Connection Size | 1358mm x 210mm |
| Running Current – Cooling | 14.1A |
| Running Current – Heating | 16.5A |
| Maximum Running Current – System | 29.00A |
| Power Input – Cooling | 3.06kW |
| Power Input – Heating | 3.35kW |
| EER / AEER | 3.26 / 3.13 |
| COP / ACOP | 3.73 / 3.59 |
| Cooling Operating Temperature | -15°C to 46°C |
| Heating Operating Temperature | -15°C to 21°C |
| Additional Refrigerant | 40g/m |
| Warranty | 5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric |
Applications
Whole-home ducted air conditioning
Residential ducted installations
Open-plan living areas
New home builds
Replacement ducted systems
Multi-zone comfort control
Light commercial fit-outs
Ceiling concealed air conditioning projects
Installations where low-profile indoor unit height is useful
Safety & Documentation
Install only by licensed air conditioning and refrigeration technicians. Confirm final indoor and outdoor model selection, controller selection, zoning components, duct design, return air path, condensate drainage, pipe sizing, electrical requirements and clearances against Mitsubishi Electric technical documentation before installation.
For R32 systems, refrigerant handling, ventilation, pipework, electrical supply and installation requirements must comply with the relevant Australian standards and manufacturer instructions.
The Mitsubishi Electric PEADM100JAADVKIT is a practical 10.0kW ducted option for homes and light commercial spaces where concealed air distribution, low-profile installation and reliable Mitsubishi Electric performance are required.
