Mitsubishi Electric PEAM100GAAY-KIT2 PEA-M GAA 10.0kW Power Inverter Reverse Cycle Ducted Air Conditioning System
The Mitsubishi Electric PEAM100GAAY-KIT2 is a PEA-M GAA Series ceiling concealed ducted reverse cycle air conditioning system designed for residential ducted installations, open-plan living areas and light commercial applications.
Using the PEA-M100GAA ceiling concealed indoor unit with the PUZ-ZM100YKA3-A three phase Power Inverter outdoor unit, this ducted set delivers 10.0kW rated cooling and 11.2kW rated heating. The PEA-M GAA Series is designed for flexible duct layouts, longer pipe runs and higher static pressure applications where discreet whole-home comfort is required.
Key Features
Mitsubishi Electric PEA-M GAA Series ducted system
10.0kW rated cooling capacity
11.2kW rated heating capacity
Reverse cycle heating and cooling
R32 refrigerant

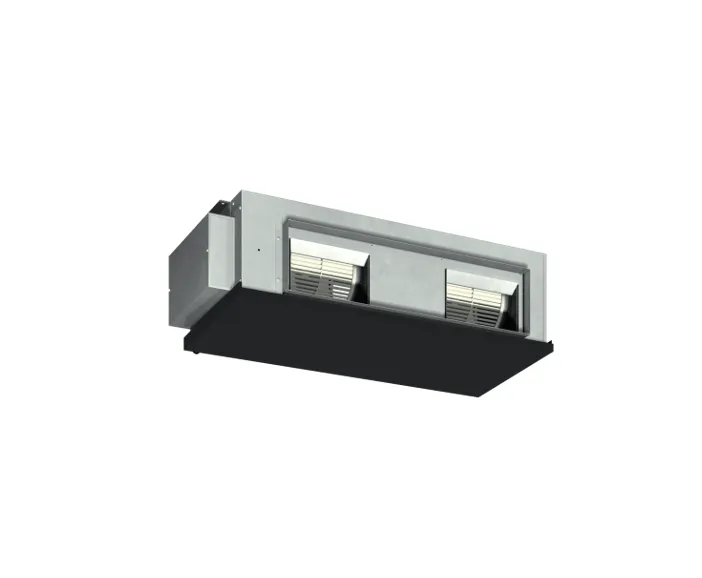

Ceiling concealed ducted indoor unit
Three phase Power Inverter outdoor unit
50 / 100 / 150Pa external static pressure
Flexible duct design for varied room layouts
Up to 75m maximum pipe length
Optional zone controller for up to 4 or 8 zones
Optional Wi-Fi control interface and app compatibility
PAR-41MAA wall mounted controller listed as optional
DC inverter technology
DC fan motor
Cleaning-free pipe re-use technology listed in brochure function table
Demand Response capable
Flare connection
5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric
Specifications
| Specification | Details |
|---|
| Product Code / Kit Code | PEAM100GAAY-KIT2 |
| Brand | Mitsubishi Electric |
| Series / Range | PEA-M GAA Series |
| System Type | Ducted Reverse Cycle Air Conditioning System |
| Indoor Unit | PEA-M100GAA |
| Outdoor Unit | PUZ-ZM100YKA3-A |
| Cooling Capacity | 10.0kW rated |
| Heating Capacity | 11.2kW rated |
| Cooling Capacity Range | 4.90–11.40kW |
| Heating Capacity Range | 4.50–14.00kW |
| Power Source / Phase | 400V, Three Phase, 50Hz |
| Refrigerant | R32 |
| Indoor Unit Type | Ceiling Concealed Ducted Indoor Unit |
| External Static Pressure | 50 / 100 / 150Pa |
| Controller | PAR-41MAA wall mounted controller listed as optional |
| Wi-Fi Option | Optional Wi-Fi control interface and app |
| Zone Control Option | Optional zone controller, up to 4 or 8 zones |
| Liquid Pipe Size | Ø9.52mm |
| Gas Pipe Size | Ø15.88mm |
| Maximum Pipe Length | 75m |
| Maximum Vertical Separation / Height | 30m |
| Pre-Charged Pipe Length | 30m |
| Indoor Dimensions | 400mm H x 1400mm W x 634mm D |
| Outdoor Dimensions | 1338mm H x 1050mm W x 330mm D +40mm |
| Indoor Weight | 63kg |
| Outdoor Weight | 114kg |
| Airflow | 560 / 700 L/s |
| Indoor Sound Pressure Level | 39 / 42 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Cooling | 49 dB(A) / 69 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Heating | 51 dB(A) / 69 dB(A) |
| Supply Air Connection Size | 921mm x 250mm |
| Return Air Connection Size | 1102mm x 330mm |
| Running Current – Cooling | 4.05A |
| Running Current – Heating | 4.26A |
| Maximum Running Current – System | 14.78A |
| Power Input – Cooling | 2.4kW |
| Power Input – Heating | 2.51kW |
| EER / AEER | 4.18 / 3.99 |
| COP / ACOP | 4.46 / 4.27 |
| Cooling Operating Temperature | -15°C to 52°C |
| Heating Operating Temperature | -20°C to 21°C |
| Additional Refrigerant | 40g/m |
| Warranty | 5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric |
Applications
Whole-home ducted air conditioning
Residential ducted installations
Open-plan living areas
New home builds
Replacement ducted systems
Multi-zone comfort control
Light commercial fit-outs
Ceiling concealed air conditioning projects
Installations requiring 150Pa high static capability
Three phase ducted air conditioning projects
Safety & Documentation
Install only by licensed air conditioning and refrigeration technicians. Confirm final indoor and outdoor model selection, controller selection, zoning components, duct design, return air path, condensate drainage, pipe sizing, electrical requirements and clearances against Mitsubishi Electric technical documentation before installation.
For R32 systems, refrigerant handling, ventilation, pipework, electrical supply and installation requirements must comply with the relevant Australian standards and manufacturer instructions.
The Mitsubishi Electric PEAM100GAAY-KIT2 is a strong three phase 10.0kW ducted option for homes and light commercial spaces where concealed air distribution, flexible duct design, longer pipe run capability and reliable Mitsubishi Electric performance are required.
