Mitsubishi Electric PEAM125HAAVKIT PEA-M HAA 12.5kW-Class Reverse Cycle Ducted Air Conditioning System
The Mitsubishi Electric PEAM125HAAVKIT is a PEA-M HAA Series two-piece ceiling concealed ducted reverse cycle air conditioning system designed for larger residential ducted installations, renovation projects, open-plan homes and light commercial applications.

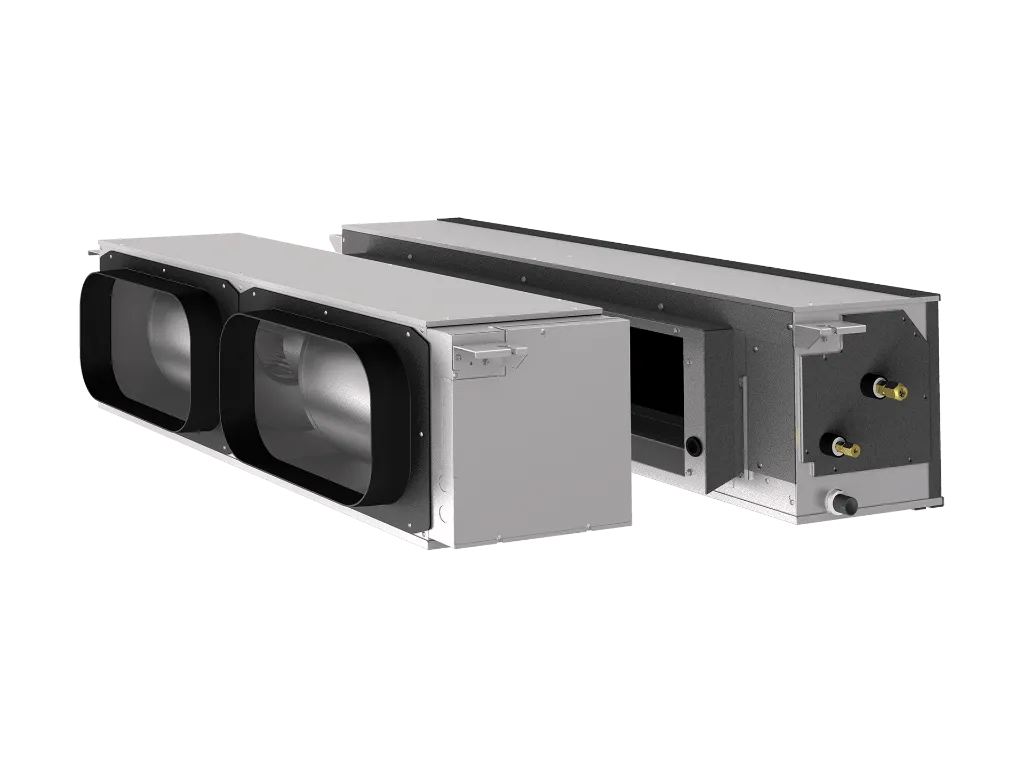

Using the PEA-M125HAA ceiling concealed indoor unit with the PUZ-M125VKA2-A single phase outdoor unit, this ducted set delivers 12.0kW rated cooling and 14.0kW rated heating. The HAA Series features a two-piece indoor unit design, allowing the fan deck and heat exchanger section to be separated for easier handling in restricted roof spaces.
Key Features
Mitsubishi Electric PEA-M HAA Series ducted system
12.0kW rated cooling capacity
14.0kW rated heating capacity
Reverse cycle heating and cooling
R32 refrigerant
Single phase outdoor unit
Two-piece ceiling concealed ducted indoor unit
Designed for easier installation in restricted roof spaces
50 / 100 / 150Pa external static pressure
Four fan speed settings
Flexible duct design
Two-way maintenance access
Optional zone controller for up to 4 or 8 zones
Optional Wi-Fi control interface and app compatibility
DC inverter technology
DC fan motor
Cleaning-free pipe re-use technology listed in brochure function table
Demand Response capable
Flare connection
5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric
Specifications
| Specification | Details |
|---|
| Product Code / Kit Code | PEAM125HAAVKIT |
| Brand | Mitsubishi Electric |
| Series / Range | PEA-M HAA Series |
| System Type | Ducted Reverse Cycle Air Conditioning System |

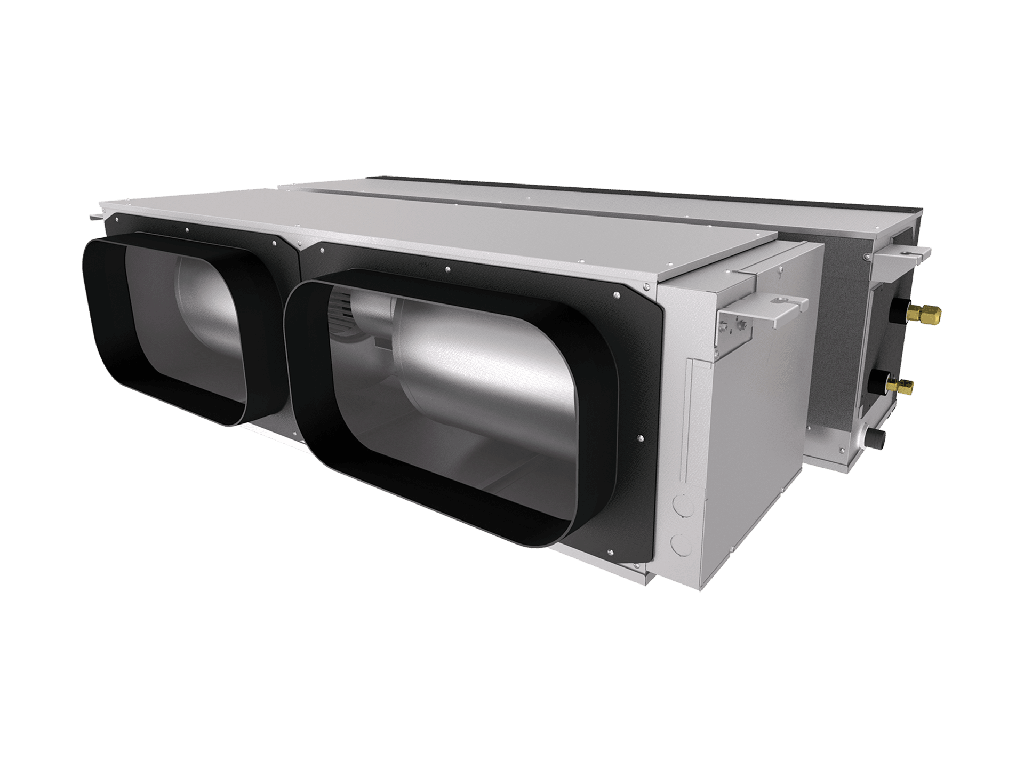

| Indoor Unit | PEA-M125HAA |

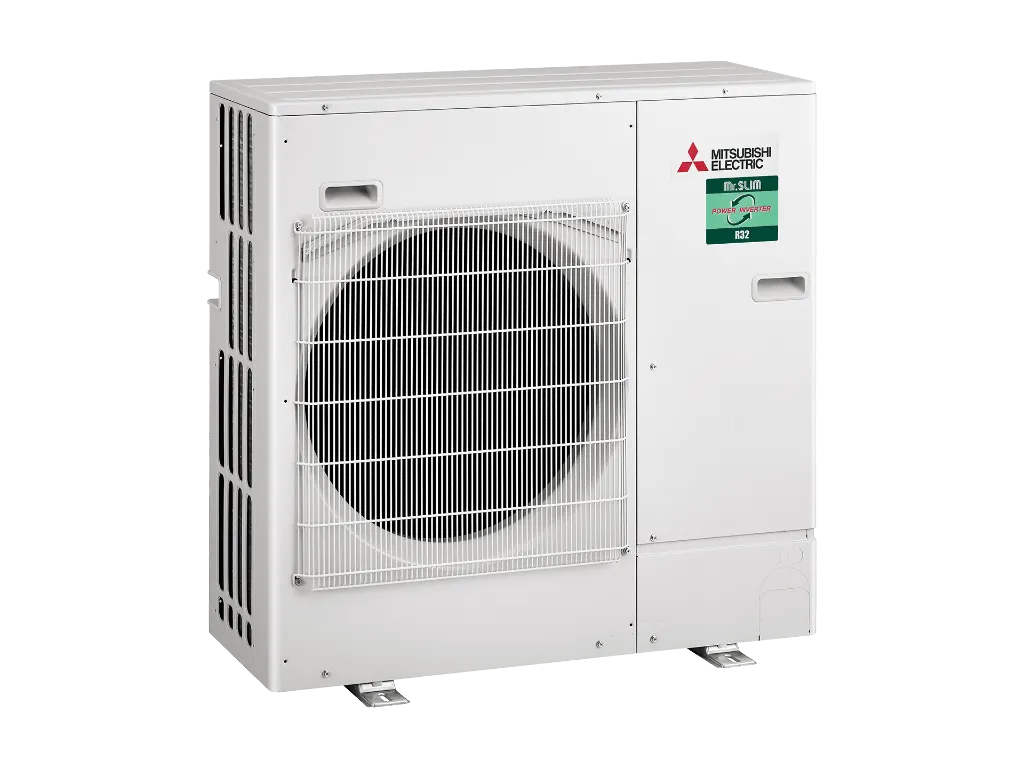

| Outdoor Unit | PUZ-M125VKA2-A |
| Cooling Capacity | 12.0kW rated |
| Heating Capacity | 14.0kW rated |
| Cooling Capacity Range | 6.00–13.50kW |
| Heating Capacity Range | 7.00–15.50kW |
| Power Source / Phase | 230V, Single Phase, 50Hz |
| Refrigerant | R32 |
| Indoor Unit Type | Two-Piece Ceiling Concealed Ducted Indoor Unit |
| External Static Pressure | 50 / 100 / 150Pa |
| Controller | Controller options shown in brochure; confirm final controller selection before ordering |
| Wi-Fi Option | Optional Wi-Fi control interface and app |
| Zone Control Option | Optional zone controller, up to 4 or 8 zones |
| Liquid Pipe Size | Ø9.52mm |
| Gas Pipe Size | Ø15.88mm |
| Maximum Pipe Length | 55m |
| Maximum Vertical Separation / Height | 30m |
| Pre-Charged Pipe Length | 30m |
| Indoor Dimensions | 380mm H x 1405mm W x 900mm D |
| Outdoor Dimensions | 981mm H x 1050mm W x 330mm D +40mm |
| Indoor Weight | 66kg |
| Outdoor Weight | 84kg |
| Airflow | 700 / 800 / 900 / 1000 L/s |
| Indoor Sound Pressure Level | 35 / 38 / 42 / 45 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Cooling | 54 dB(A) / 72 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Heating | 56 dB(A) / 74 dB(A) |
| Supply Air Connection Size | 1325mm x 266mm |
| Return Air Connection Size | 2 x 400mm / 2 x 16" |
| Running Current – Cooling | 17.4A |
| Running Current – Heating | 16.0A |
| Maximum Running Current – System | 30.20A |
| Power Input – Cooling | 3.8kW |
| Power Input – Heating | 3.44kW |
| EER / AEER | 3.17 / 3.10 |
| COP / ACOP | 4.06 / 3.69 |
| TCSPF Residential – Hot / Average / Cold | 4.30 / 3.77 / 3.83 |
| HSPF Residential – Hot / Average / Cold | 4.42 / 3.87 / 3.27 |
| Cooling Operating Temperature | -15°C to 46°C |
| Heating Operating Temperature | -15°C to 21°C |
| Additional Refrigerant | 40g/m |
| Warranty | 5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric |
Applications
Whole-home ducted air conditioning
Larger residential ducted installations
Renovation and retrofit projects
Open-plan living areas
New home builds
Replacement ducted systems
Multi-zone comfort control
Light commercial fit-outs
Ceiling concealed air conditioning projects
Installations with restricted roof space access
Safety & Documentation
Install only by licensed air conditioning and refrigeration technicians. Confirm final indoor and outdoor model selection, controller selection, zoning components, duct design, return air path, condensate drainage, pipe sizing, electrical requirements and clearances against Mitsubishi Electric technical documentation before installation.
For R32 systems, refrigerant handling, ventilation, pipework, electrical supply and installation requirements must comply with the relevant Australian standards and manufacturer instructions.
The Mitsubishi Electric PEAM125HAAVKIT is a strong 12.5kW-class two-piece ducted option for larger homes and light commercial spaces where concealed air distribution, easier roof-space installation and reliable Mitsubishi Electric performance are required.
