Mitsubishi Electric PEAM140GAAVKIT2 PEA-M GAA 14.0kW Reverse Cycle Ducted Air Conditioning System
The Mitsubishi Electric PEAM140GAAVKIT2 is a PEA-M GAA Series ceiling concealed ducted reverse cycle air conditioning system designed for larger homes, open-plan residential spaces and light commercial applications.

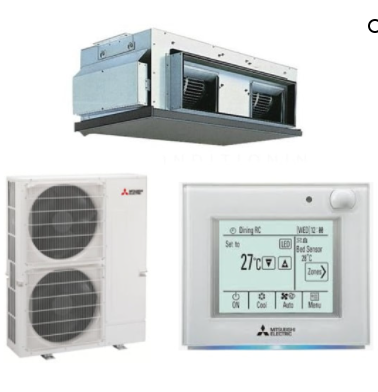

Using the PEA-M140GAA ceiling concealed indoor unit with the PUZ-M140VKA2-A single phase outdoor unit, this ducted set delivers 14.0kW rated cooling and 16.0kW rated heating. The PEA-M GAA Series is designed for flexible duct layouts, longer pipe runs and higher static pressure applications where discreet whole-home comfort is required.
Key Features
Mitsubishi Electric PEA-M GAA Series ducted system
14.0kW rated cooling capacity
16.0kW rated heating capacity
Reverse cycle heating and cooling
R32 refrigerant

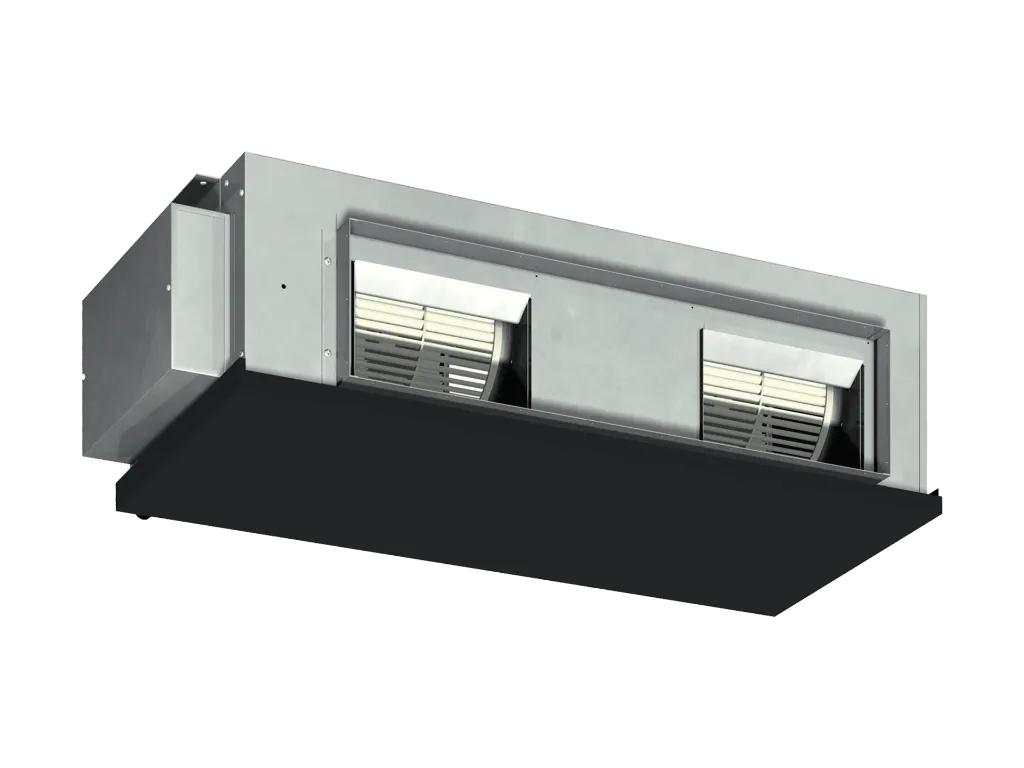

Ceiling concealed ducted indoor unit
50 / 100 / 150Pa external static pressure
Flexible duct design for varied room layouts
Longer maximum piping length
Optional zone controller for up to 4 or 8 zones
Optional Wi-Fi control interface and app compatibility
PAR-41MAA wall mounted controller listed as optional
DC inverter technology
DC fan motor
Cleaning-free pipe re-use technology listed in brochure function table
Demand Response capable
Flare connection
5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric
Specifications
| Specification | Details |
|---|
| Product Code / Kit Code | PEAM140GAAVKIT2 |
| Brand | Mitsubishi Electric |
| Series / Range | PEA-M GAA Series |
| System Type | Ducted Reverse Cycle Air Conditioning System |
| Indoor Unit | PEA-M140GAA |
| Outdoor Unit | PUZ-M140VKA2-A |
| Cooling Capacity | 14.0kW rated |
| Heating Capacity | 16.0kW rated |
| Cooling Capacity Range | 6.20–15.30kW |
| Heating Capacity Range | 8.00–18.00kW |
| Power Source / Phase | 230V, Single Phase, 50Hz |
| Refrigerant | R32 |
| Indoor Unit Type | Ceiling Concealed Ducted Indoor Unit |
| External Static Pressure | 50 / 100 / 150Pa |
| Controller | PAR-41MAA wall mounted controller listed as optional |
| Wi-Fi Option | Optional Wi-Fi control interface and app |
| Zone Control Option | Optional zone controller, up to 4 or 8 zones |
| Liquid Pipe Size | Ø9.52mm |
| Gas Pipe Size | Ø15.88mm |
| Maximum Pipe Length | 55m |
| Maximum Vertical Separation / Height | 30m |
| Pre-Charged Pipe Length | 55m |
| Indoor Dimensions | 400mm H x 1400mm W x 634mm D |
| Outdoor Dimensions | 1338mm H x 1050mm W x 330mm D +40mm |
| Indoor Weight | 63kg |
| Outdoor Weight | 99kg |
| Airflow | 800 / 1000 L/s |
| Indoor Sound Pressure Level | 42 / 45 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Cooling | 53 dB(A) / 71 dB(A) |
| Outdoor Sound Pressure / Sound Power Level – Heating | 54 dB(A) / 72 dB(A) |
| Supply Air Connection Size | 921mm x 250mm |
| Return Air Connection Size | 1102mm x 330mm |
| Running Current – Cooling | 20.4A |
| Running Current – Heating | 20.3A |
| Maximum Running Current – System | 30.90A |
| Power Input – Cooling | 4.2kW |
| Power Input – Heating | 4.20kW |
| EER / AEER | 3.31 / 3.22 |
| COP / ACOP | 3.80 / 3.69 |
| Cooling Operating Temperature | -15°C to 46°C |
| Heating Operating Temperature | -15°C to 21°C |
| Warranty | 5 year parts and labour warranty for residential applications promoted by Mitsubishi Electric |
Applications
Whole-home ducted air conditioning
Larger residential installations
Open-plan living areas
New home builds
Replacement ducted systems
Multi-zone comfort control
Light commercial fit-outs
Ceiling concealed air conditioning projects
Installations requiring 150Pa high static capability
Safety & Documentation
Install only by licensed air conditioning and refrigeration technicians. Confirm final indoor and outdoor model selection, controller selection, zoning components, duct design, return air path, condensate drainage, pipe sizing, electrical requirements and clearances against Mitsubishi Electric technical documentation before installation.
For R32 systems, refrigerant handling, ventilation, pipework, electrical supply and installation requirements must comply with the relevant Australian standards and manufacturer instructions.
The Mitsubishi Electric PEAM140GAAVKIT2 is a strong 14.0kW ducted option for larger homes and light commercial spaces where concealed air distribution, flexible duct design and reliable Mitsubishi Electric performance are required.
