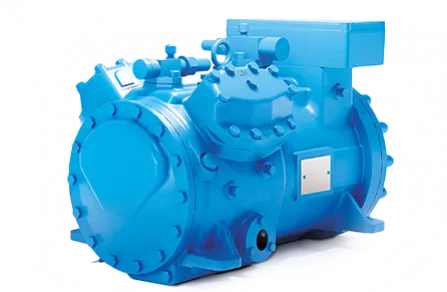

Frascold Q5-25.1Y Semi-Hermetic Refrigeration Compressor – 3 Phase
The Frascold Q5-25.1Y is a four-cylinder semi-hermetic reciprocating compressor for commercial refrigeration. Featuring a 3.7 kW nominal motor and 24.69 m³/h displacement at 50 Hz, it offers a serviceable solution for new systems and replacement installations.
Technical Specifications
| Specification | Details |
|---|
| Model | Q5-25.1Y |
| Cylinders | 4 |
| Nominal motor power | 3.7 kW |
| Power supply | 380–420 V / 3 phase / 50 Hz |
| Starting method | Direct-on-line, star connection |
| Displacement at 50 Hz | 24.69 m³/h |
| Maximum operating current — 400 V | 12.7 A |
| Locked rotor current — 400 V | 63.1 A |
| Suction / discharge connection | 1⅛″ / ⅞″ |
| Lubricant / oil charge | POE32 / 1.3 litres |
| Dimensions — L × W × H | 449 × 286 × 325 mm |
| Base mounting centres | 312 × 246 mm |
| Net weight | 79 kg |
Recommended Options — Available Separately
| Option | Application |
|---|
| Crankcase heater | Helps limit refrigerant migration during shutdown. |
| RSH capacity control head | Matches compressor output to varying loads. |
| Head cooling fan | Additional cooling where required. |
| Oil equalisation adaptor kit | For parallel compressor installations. |
Confirm refrigerant and accessory selection against operating conditions. Motor power is not cooling capacity.
