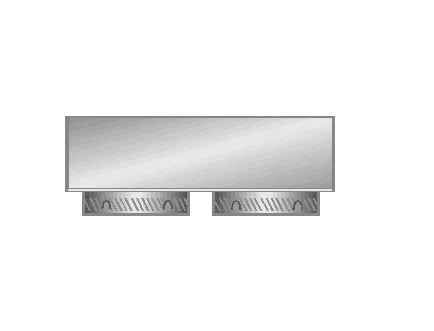

The Sunco Duct Twin-Spigot Return Air Plenum is a lightweight, insulated return-air box designed to connect a return-air grille to two flexible duct runs.
Manufactured from 21 mm foil-faced PIR ductboard, the plenum combines the air path and insulation into one compact assembly. The twin-spigot configuration helps divide the return airflow across two ducts, providing additional airflow capacity while helping reduce air velocity and system noise.
Key Features
-
Two return-air spigots
-
Designed for installation behind a return-air grille
-
Manufactured from 21 mm PIR ductboard
-
Approximate thermal rating of R0.95
-
Lightweight and easy to install
-
Twin-duct configuration supports higher return airflow
-
Helps reduce return-air velocity and noise
-
Insulated construction helps prevent condensation
-
Foil-faced internal and external surfaces
-
Corrosion-resistant alternative to sheet-metal plenums
-
Custom grille, spigot and body sizes available
-
Australian manufactured by Sunco Duct
Specifications
| Specification | Details |
|---|
| Product Type | Twin-spigot return-air plenum |
| Construction | 21 mm foil-faced PIR ductboard |
| Thermal Rating | Approximately R0.95 |
| Spigot Quantity | 2 |
| Spigot Type | Round flexible-duct connections |
| Spigot Sizes | Available to suit system requirements |
| Grille Opening | Custom manufactured to suit |
| Application | Residential and light-commercial return-air systems |
Made to order. Confirm the required flange size when ordering.
