SKY 307-10 Oil Separator 5/8" ID
The SKY 307-10 is a 5/8" ID oil separator for refrigeration and air conditioning systems requiring reliable compressor oil management.
Designed with internal baffles and a deaeration system, the 307-10 helps remove oil from the discharge gas stream and return it to the compressor, supporting stable system operation.
Key Features
SKY oil separator
5/8" ID connection
Internal baffles and deaeration system
4,350kPa safe working pressure
Minimal pressure drop design
Two-stage stainless steel oil separation membranes
Separate oil storage compartment to allow separated oil to de-aerate and cool down
Anti-corrosion powder coat finish
Solid copper connections
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 307-10 |
| Brand | SKY Refrigeration |
| Product Type | Oil Separator |
| Connection Size | 5/8" ID |
| Height | 300mm |
| Diameter | 102mm |
| Weight | 3.0kg |
| Oil Connection | 1/4" MSAE |
| Oil Charge | 500ml |
| Pressure Rating | 4,350kPa |

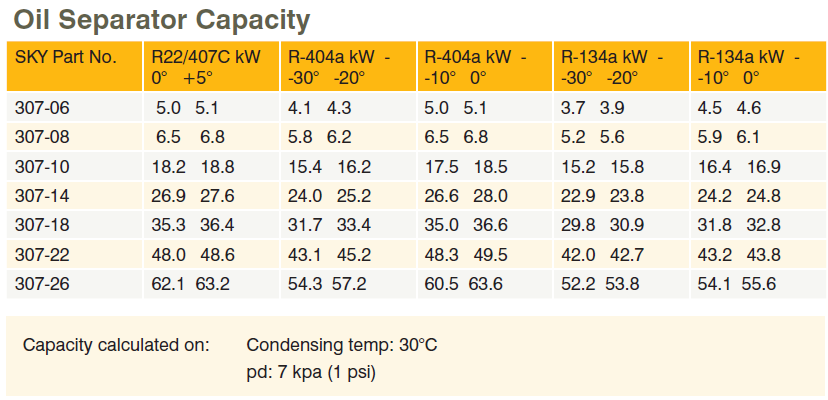

| Capacity R-22 / R-407C | 18.2kW at 0°C / 18.8kW at +5°C |
| Capacity R-404A | 15.4kW at -30°C / 16.2kW at -20°C; 17.5kW at -10°C / 18.5kW at 0°C |
| Capacity R-134a | 15.2kW at -30°C / 15.8kW at -20°C; 16.4kW at -10°C / 16.9kW at 0°C |
| Capacity Conditions | 30°C condensing temperature, 7kPa pressure drop |
Applications
Commercial refrigeration systems
Air conditioning systems
Compressor oil return support
Discharge line oil separation
HVAC-R maintenance
System service and replacement work
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm refrigerant, capacity and oil return requirements before fitting.
The SKY 307-10 is a 5/8" oil separator for commercial HVAC-R systems requiring dependable oil separation.
