ICOOL COOL PRESS Copper Refrigeration Press Coupling With Stop – 1/4"

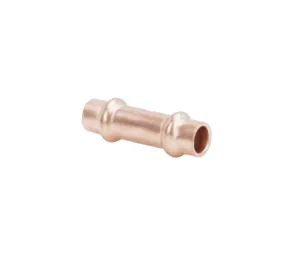

Straight copper press coupling with internal tube stop, designed for joining two sections of 1/4" refrigeration copper pipe. Provides a permanent mechanical connection without brazing.
Specifications
Connection: 1/4" × 1/4" Press × Press
Type: Straight coupling with stop
Overall length: 35 mm
Dimension A: 3 mm
Maximum operating pressure: 700 psi / 48 bar
Operating temperature: −40°C to +140°C
Material: Refrigerant-grade copper
Seal: HNBR O-ring with stainless steel grip ring
Suitable tubing: AS 1571 copper tube
Warranty: 15 years
Features: Internal tube stop for positioning, flame-free installation, three-point press connection and no nitrogen purge required during joining.
Product Code: RPF100545
