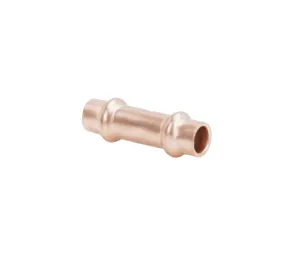

ICOOL COOL PRESS Copper Refrigeration Press Coupling With Stop – 3/8"
Straight copper press-fit coupling for connecting two sections of 3/8" refrigeration tubing. Features an internal stop and HNBR sealing system for a secure mechanical connection.
Specifications
Connection: 3/8" × 3/8" Press × Press
Type: Straight coupling with stop
Overall length: 35 mm
Dimension A: 3 mm
Maximum operating pressure: 700 psi / 48 bar
Operating temperature: −40°C to +140°C
Material: Refrigerant-grade copper
Seal: HNBR O-ring with stainless steel grip ring
Suitable tubing: AS 1571 copper tube
Warranty: 15 years
Features: Flame-free joint assembly, positive tube positioning, three-point press technology and reduced installation time.
Product Code: RPF100546
