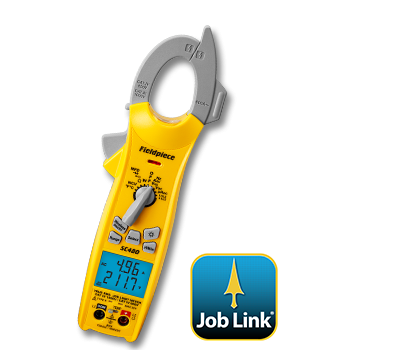

Fieldpiece SC480INT TRMS Power Clamp Meter
The Fieldpiece SC480INT Clamp Meter is a professional HVAC-R electrical meter designed for service technicians who need accurate electrical testing, system diagnostics and power measurement in the field. It combines True RMS measurement, Job Link connectivity and a power kW range, making it useful for checking electrical performance and supporting HVAC-R system efficiency work.

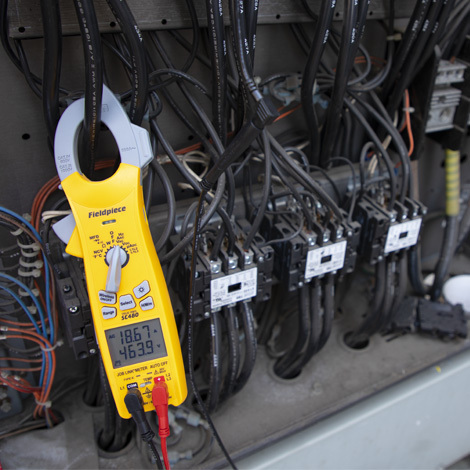

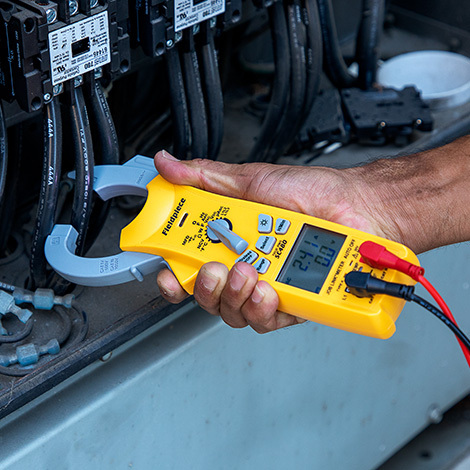

Built for trade use, the SC480INT can verify 3-phase rotation with two leads, measure VAC and AAC accurately with True RMS, and connect directly to the Job Link System for wireless electrical documentation.
Key Features
- True RMS clamp meter for HVAC-R and electrical service work
- Measures power consumption in kW
- Connects to the Fieldpiece Job Link System
- Verifies 3-phase rotation with just two leads
- 600A clamp meter capability
- Dual display for easier reading
- Low pass filter for VFD systems
- Non-contact voltage detection
- Continuity LED and beeper
- Diode test and microamps DC measurement
- Frequency measurement through the clamp
- Backlit display with auto power off
- CAT III 1000V and CAT IV 600V rated
Specifications
| Specification | Details |
|---|
| Product Code | SC480INT |
| Brand | Fieldpiece |
| Product Type | TRMS Power Clamp Meter |
| Clamp Range | 600A |
| Display | 10000 count dual display |
| Wireless Connectivity | Job Link System |
| Power Measurement | kW range |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Backlight | Blue backlight with auto-off |
| Auto Power Off | Approx. 30 minutes |
| Power Supply | 9V battery |
| Battery Life | Approx. 100 hours typical alkaline without wireless/backlight |
| Dimensions | 247mm H x 79mm W x 48mm D |
| Weight | Approx. 345g including battery |
| Application | HVAC-R electrical testing and diagnostics |
Kit Includes
- Fieldpiece SC480INT clamp meter
- Padded carry case
- Test leads
- Thermocouple
- Gator clip leads
- Molex tips
- Velcro strap
- 9V battery
- Operator’s manual
Applications
- HVAC-R electrical diagnostics
- Air conditioning service and commissioning
- Refrigeration service work
- 3-phase rotation checks
- Power consumption testing
- VFD system testing
- Compressor and motor electrical checks
- Maintenance and fault finding
The Fieldpiece SC480INT TRMS Power Clamp Meter gives HVAC-R technicians a high-capability electrical testing tool for accurate measurements, power checks and Job Link documentation during service, commissioning and troubleshooting work.
