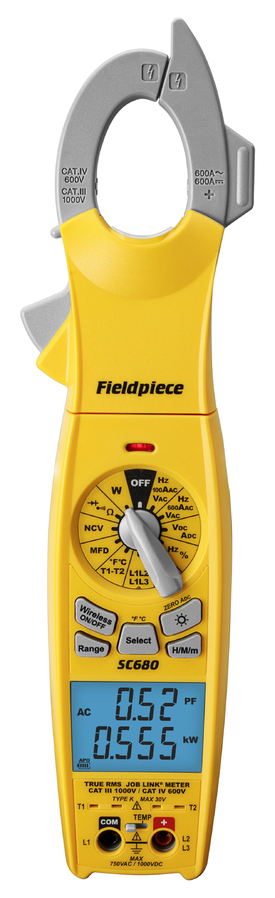

Fieldpiece SC680 Loaded Clamp Meter
The Fieldpiece SC680 Clamp Meter is a high-capability HVAC-R electrical meter designed for professional service, commissioning and fault-finding work. Built for air conditioning and refrigeration technicians, it combines True RMS electrical measurement, high amperage clamp readings, temperature inputs and Job Link wireless connectivity in one trade-ready meter.
The SC680 is suited to advanced diagnostics on compressors, motors, heating circuits, refrigeration equipment and 3-phase systems where accurate electrical testing and documentation are required.
Key Features
- Loaded HVAC-R clamp meter
- True RMS measurement for accurate electrical readings
- Job Link System connectivity for wireless documentation
- Measures AC current through the clamp
- Measures AC/DC voltage
- Inrush current function for start-up diagnostics
- Capacitance testing for run and start capacitors
- Microamps DC measurement for flame rectification testing
- Dual temperature inputs for HVAC-R diagnostics
- Phase rotation testing
- Non-contact voltage detection
- Continuity test with beeper
- Diode test and resistance measurement
- Backlit display for low-light work areas
- Suitable for advanced HVAC-R service and commissioning
Specifications
| Specification | Details |
|---|
| Product Code | SC680 |
| Brand | Fieldpiece |
| Product Type | Loaded Clamp Meter |
| Meter Type | True RMS clamp meter |
| Connectivity | Fieldpiece Job Link System |
| Current Measurement | AC current via clamp |
| Voltage Measurement | AC/DC voltage |
| Temperature Measurement | Dual temperature inputs |
| Capacitance | Yes |
| Microamps DC | Yes |
| Inrush Current | Yes |
| Phase Rotation | Yes |
| Non-Contact Voltage | Yes |
| Application | HVAC-R electrical testing and diagnostics |
Applications
- HVAC-R electrical diagnostics
- Air conditioning service and commissioning
- Refrigeration service work
- Compressor and motor testing
- Capacitor testing
- Inrush current checks
- Flame rectification testing
- 3-phase rotation checks
- Temperature and electrical troubleshooting
- Preventative maintenance and fault finding
The Fieldpiece SC680 Loaded Clamp Meter gives HVAC-R technicians a premium diagnostic tool for electrical testing, system checks and Job Link documentation across demanding air conditioning and refrigeration service work.
