Includes standard controller
The High Static Single Phase R32 ducted air conditioner range is available in six models, ranging in capacity from 7.1kW to 15.5kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.
| Model Number | SET-ARTH24KHTA |
| Indoor unit | ARTH24KHTA |
| Outdoor unit | AOTH24KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 7.10 (1.8 - 8.1) |
| Heating Capacity kW (Rated (Min - Max)) | 8.00 (2 - 9.1) |
| Static Pressure Range PA (Min to Max) | 60 to 210 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 500 |

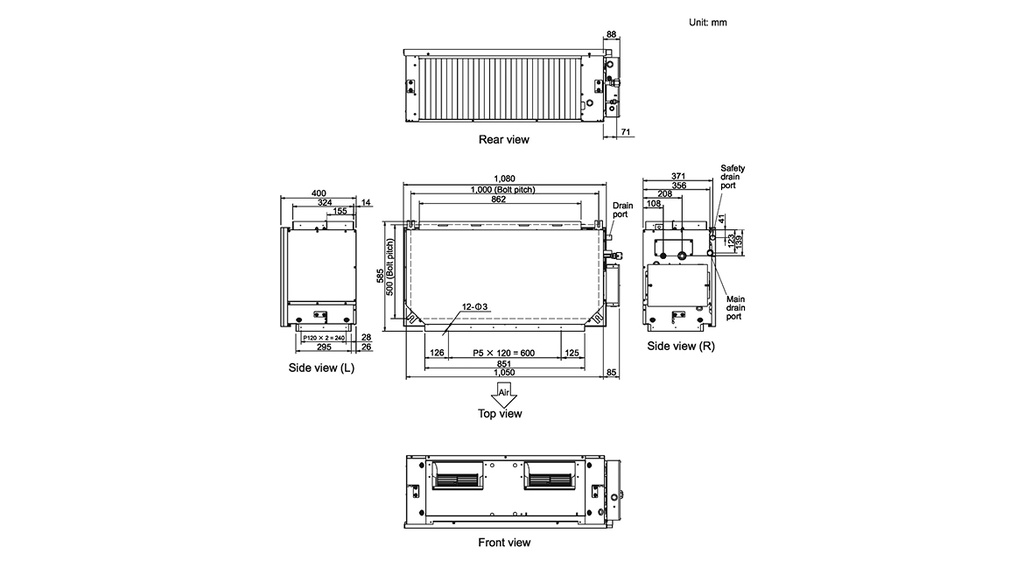

| Indoor Unit Dimensions mm (Height x Width x Depth) | 400 x 1050 x 500 |
| Indoor Unit Weight kg | 38.00 |

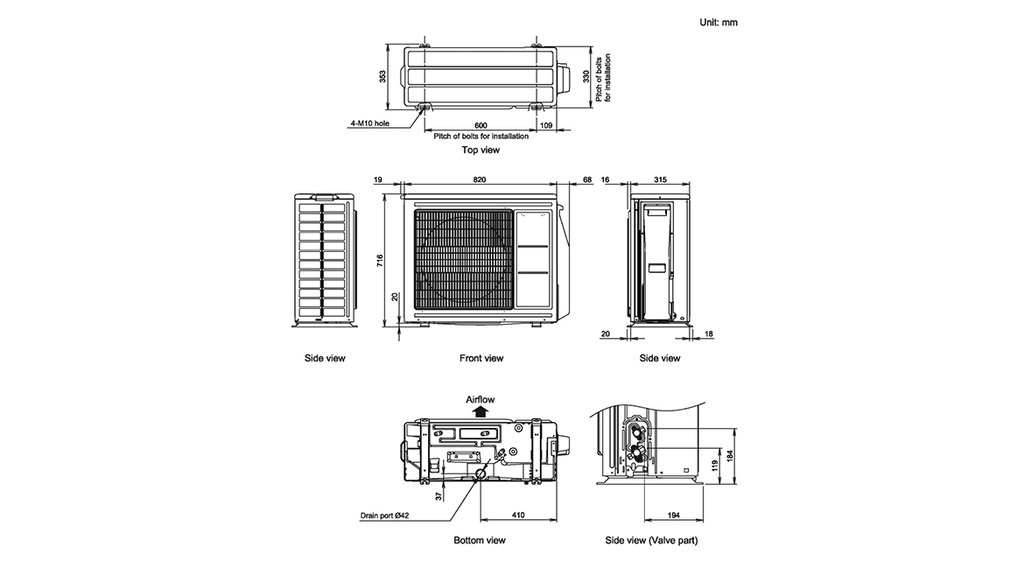

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 716 x 820 x 315 |
| Outdoor Unit Weight kg | 42.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (20) |
| Max Height Difference m | 25 |
| Refrigerant Type | R32 |
| Return Air Connection (H x W) | 325 x 865 |
| Supply Air Connection (H x W) | 295 x 850 |
