Includes standard controller

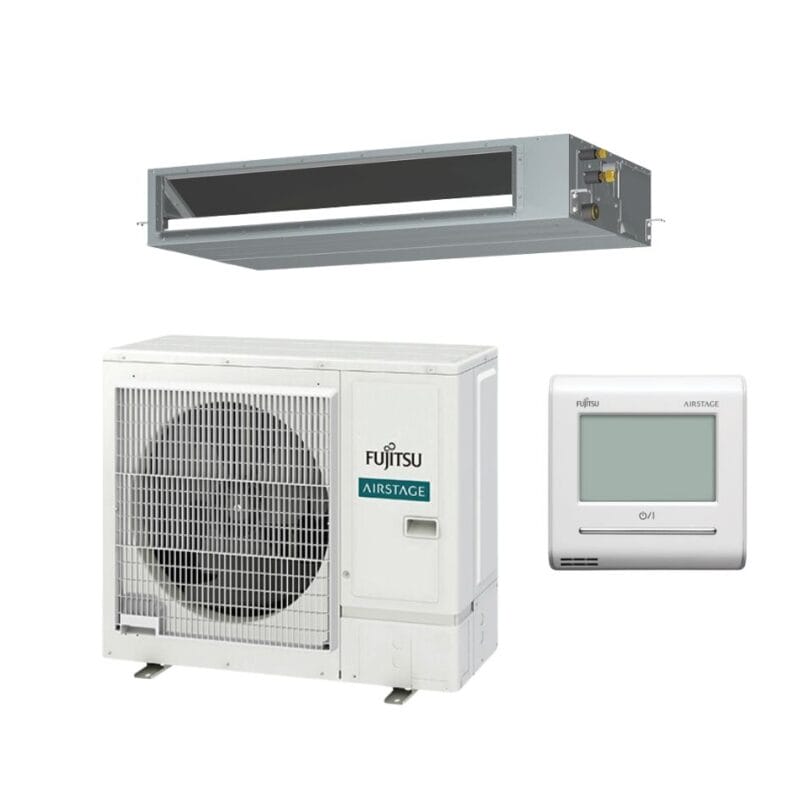

The Fujitsu General Mid Static Slimline R32 models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.
| Model Number | SET-ARTH30KMTAP |
| Indoor unit | ARTH30KMTAP |
| Outdoor unit | AOTH30KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 8.50 (2.8 - 10.3) |
| Heating Capacity kW (Rated (Min - Max)) | 10.00 (2.7 - 11.3) |
| Running Current amps (Cooling / Heating) | 11 / 11.2 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 541.67 |

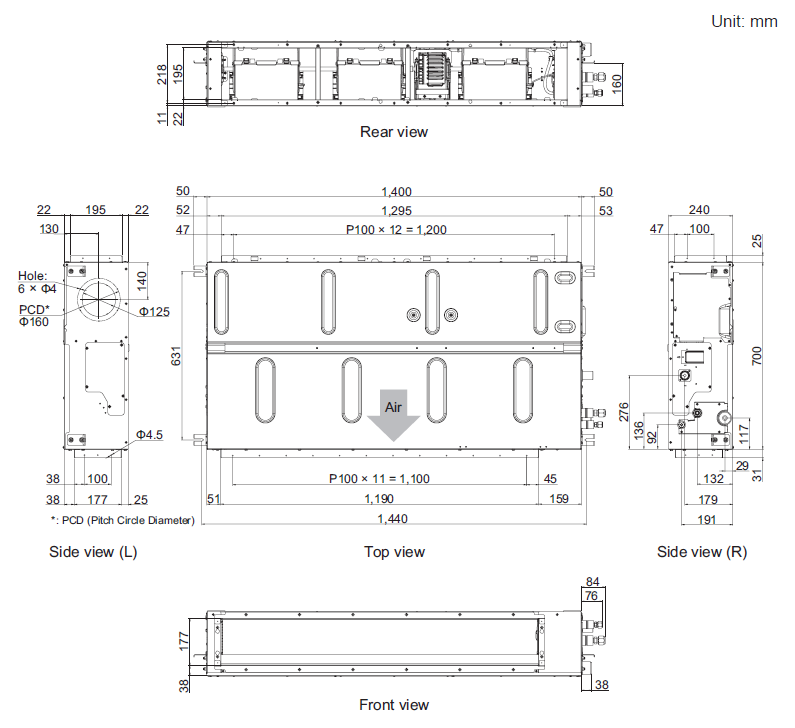

| Indoor Unit Dimensions mm (Height x Width x Depth) | 240 x 1400 x 700 |
| Indoor Unit Weight kg | 42.00 |

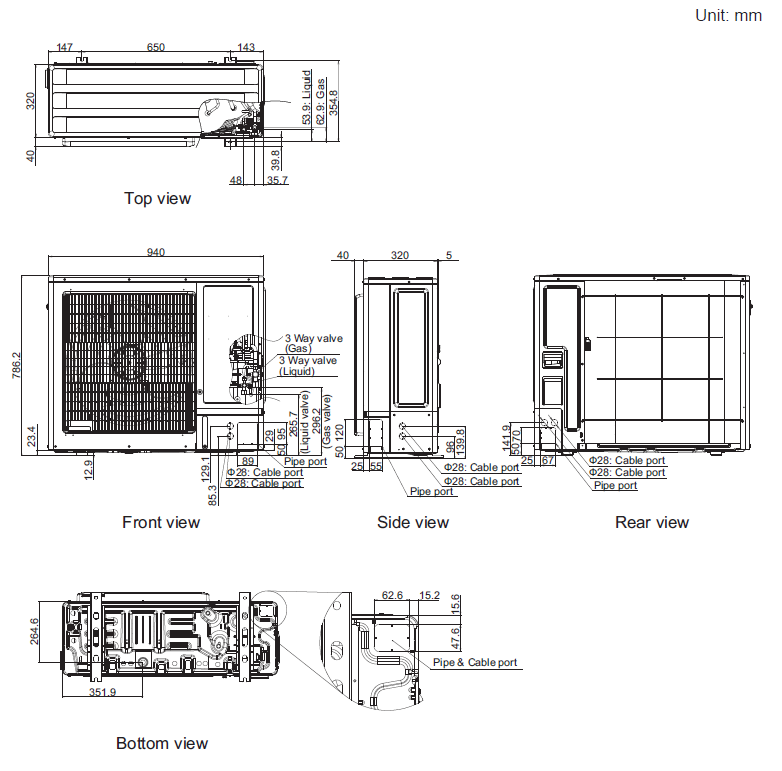

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 52.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Refrigerant Type | R32 |
| Return Air Connection (H x W) | 195 x 1295 |
| Supply Air Connection (H x W) | 177 x 1190 |
