The 4-way flow cassette provides wide and comfortable airflow to achieve optimum room comfort. The extremely discreet and non-intrusive compact grille design sits level with the ceiling. This model uses R32 refrigerant, which has a 67 per cent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner.
| Product Category | Cassette |
| Product Range | Compact Cassette range |
| Capacity | 7.10kW Cooling 8.00kW Heating |
| Model Number | AUTH24KVLA |
Technical Specifications
| Indoor unit | AUTH24KVLA |
| Outdoor unit | AOTH24KBTB |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 7.10 (1.5 - 7.8) |
| Heating Capacity kW (Rated (Min - Max)) | 8.00 (1.4 - 8.4) |
| Input Power Cooling kW (Rated (Max)) | 2.16 (2.72) |
| Input Power Heating kW (Rated (Max)) | 2.21 (2.71) |
| EER Cooling kW/kW | 3.29 |
| COP Heating kW/kW | 3.62 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.401 / 4.187 / 4.365 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.58 / 4.044 / 3.533 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.685 / 4.789 / 5.119 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.588 / 4.265 / 3.822 |
| Running Current amps (Cooling / Heating) | 9.6 / 9.7 |
| Moisture Removal l/hr | 3.4 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 30 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 50 / 33 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 54 / 50 |
| Outdoor Sound Power dBA | 69 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 258 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 286 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 245 x 570 x 570 |
| Indoor Unit Weight kg | 16.00 |

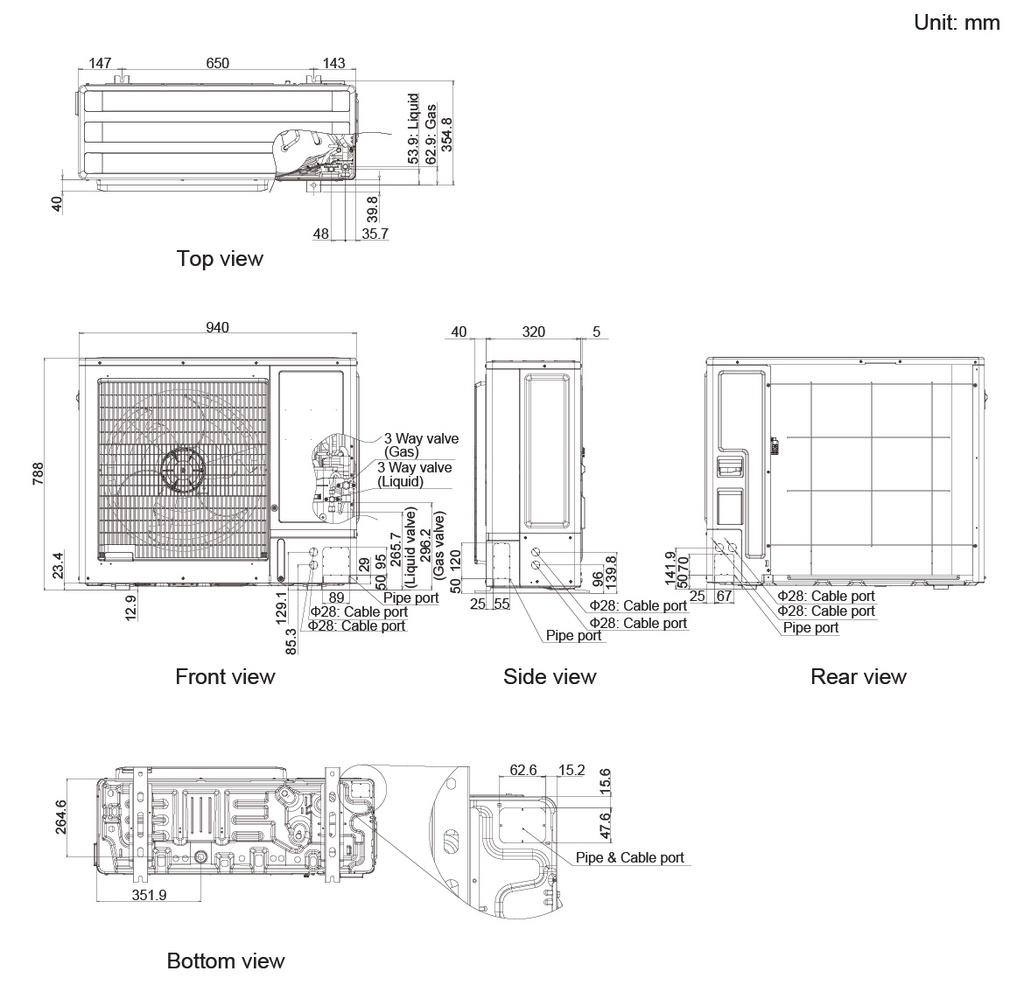

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 53.00 |
| Grill Dimensions mm (Height x Width x Depth) | 49 x 620 x 620 |
| Grill Weight kg | 2.30 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,500 |
| UART Communication | Yes |
| UART Communication Port | 2 Ports - CN65, CN75 |
