General Cassette Circular Flow with Wired Controller Three Phase 13.0kw

Product Category	Split Systems
Product Range	Circular Flow Cassette range
Capacity	13.00kW Cooling 15.50kW Heating
Model Number	AUTH54KRTA-3PH

Technical Specifications

Indoor unit	AUTH54KRTA
Outdoor unit	AOTH54KRTA
Operation Type	Reverse Cycle
Power Source V/Ph/Hz	400 / 3 / 50
Cooling Capacity kW (Rated (Min - Max))	13.00 (4.5 - 15)
Heating Capacity kW (Rated (Min - Max))	15.50 (4.7 - 18)
Input Power Cooling kW (Rated (Max))	4.04 (5.19)
Input Power Heating kW (Rated (Max))	4.04 (5.19)
EER Cooling kW/kW	3.22
COP Heating kW/kW	3.81
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 2.5 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)	3 / 2 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.662 / 4.454 / 4.722
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.997 / 5.185 / 5.598
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.997 / 5.185 / 5.598
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.937 / 4.239 / 3.65
Running Current amps (Cooling / Heating)	6.6 / 6.8
Moisture Removal l/hr	5
Indoor Sound Pressure Cooling dBA (High / Quiet)	47 / 36
Indoor Sound Pressure Heating dBA (High / Quiet)	47 / 36
Outdoor Sound Pressure dBA (Cooling / Heating)	55 / 57
Outdoor Sound Power dBA	72
Air Circulation (Indoor - High Fan) Cooling l/sec	556
Air Circulation (Indoor - High Fan) Heating l/sec	556

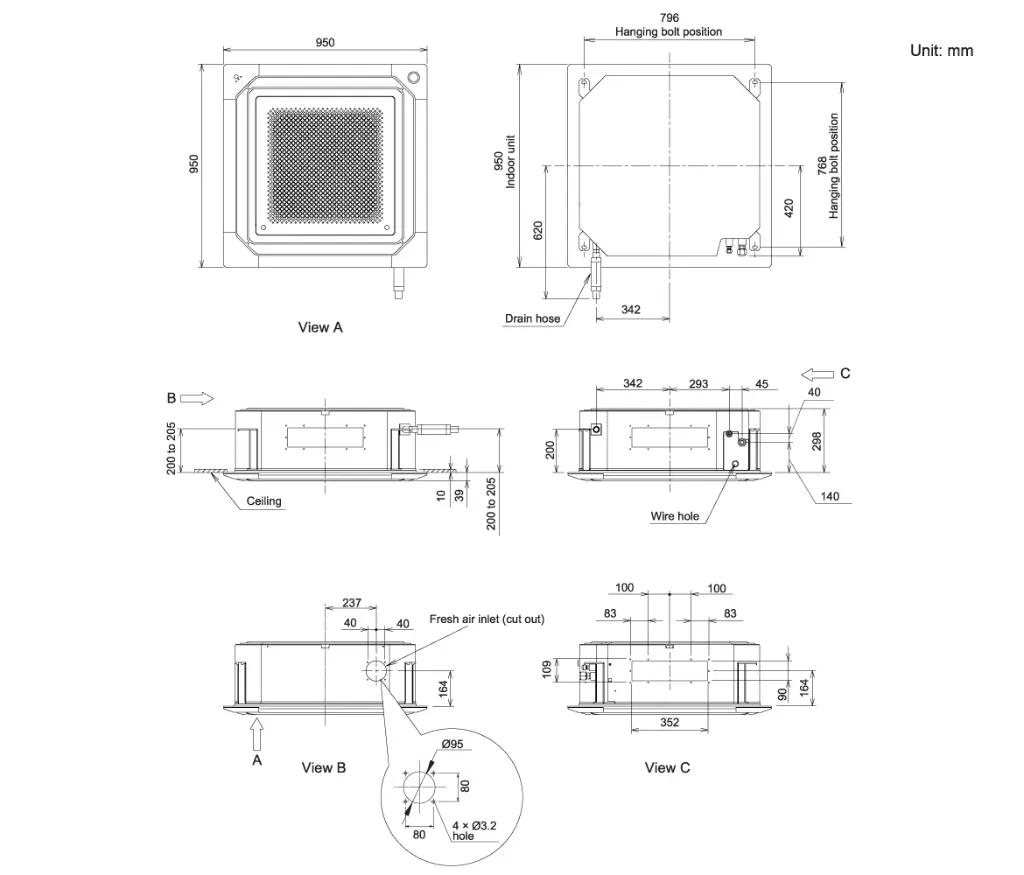

Indoor Unit Dimensions mm (Height x Width x Depth)	288 x 840 x 840
Indoor Unit Weight kg	29.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	998 x 940 x 320
Outdoor Unit Weight kg	67.00
Grill Weight kg	6.00
Piping Connects mm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Length m (Max (Precharged))	50 (30)
Max Height Difference m	30
Operation Range Cooling °CDB (Min to Max)	-10 to 50
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	2,180
UART Communication	Yes
UART Communication Port	2 Ports - CN65, CN75
