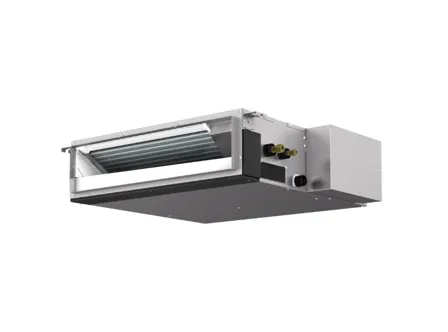

The Mitsubishi Electric SEZ-M60DA3.TH is a compact ceiling-concealed bulkhead indoor unit designed for discreet heating and cooling in larger living areas, offices, restaurants and commercial spaces.
With a height of only 200 mm, it is ideal for installations with restricted ceiling space. Three fan speeds and four selectable static-pressure settings provide flexibility when connecting supply and return-air ductwork.
Key Features
-
6.0 kW nominal capacity class
-
Low-profile 200 mm-high design
-
Quiet operation from 29 dBA
-
Three fan-speed settings
-
Four selectable static-pressure settings
-
Efficient DC fan motor
-
Discreet ceiling-concealed installation
-
Optional wired, wireless and Wi-Fi controls
-
Optional M-NET connection
-
Built-in error logging
-
Compatible with R32 systems
Specifications
| Specification | Details |
|---|
| Model | SEZ-M60DA3.TH |
| Unit Type | Ceiling-concealed bulkhead indoor unit |
| Nominal Capacity Class | 6.0 kW |
| Air Flow | 200–300 L/s |
| Sound Pressure Level | 29–37 dBA at 5 Pa |
| External Static Pressure | 5 / 15 / 35 / 50 Pa |
| Fan Speeds | Low / Medium / High |
| Dimensions | 200 H × 1,190 W × 700 D mm |
| Weight | 25.5 kg |
| Pipe Connections | 6.35 mm liquid / 15.88 mm gas |
| Refrigerant | R32 |
Optional Controls and Accessories
| Part Number | Description |
|---|
| PAR-41MAA | Seven-day programmable wired wall controller |
| PAC-YT52CRA | Simplified wired wall controller |
| PAR-SL97A-E | Handheld wireless remote controller |
| PAR-SA9CA-E | Signal receiver required for wireless operation |
| MAC-588IF-E | Wi-Fi interface for smartphone and online control |
| MAC-334IF-E | System-control interface |
| MAC-497IF-E | MA and external-contact terminal interface |
| PAC-SE42TS-E | Remote room-temperature sensor |
| PAC-SE55RA-E | Remote on/off adaptor |
| PAC-SA88HA-E | Connector cable for remote display |
Indoor unit only. No controller is included. Must be connected to a compatible Mitsubishi Electric SUZ single-split outdoor unit or an approved MXZ or PUMY multi-split condenser. Controllers and interface accessories are sold separately.
