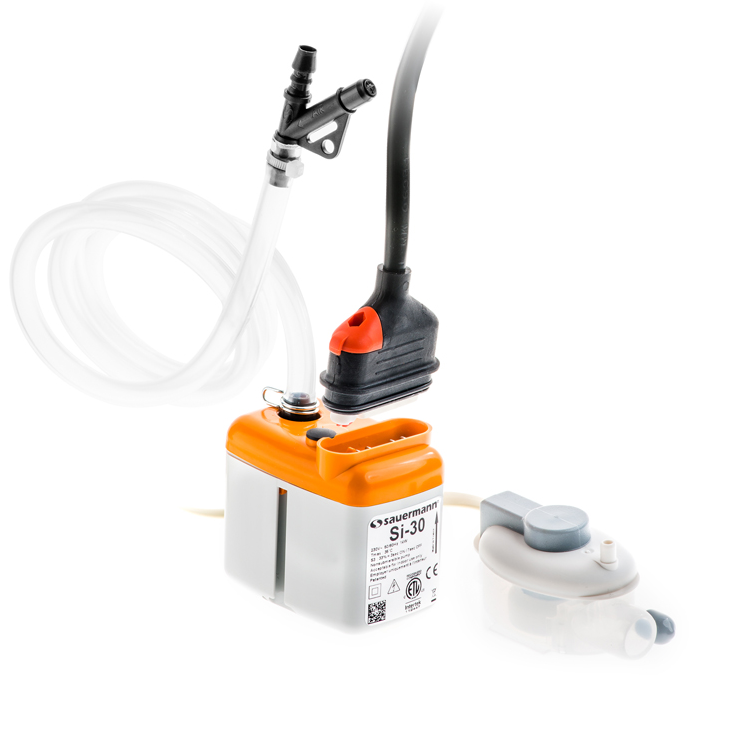

Sauermann Mini Condensate Pump 20 L/h – Si-30
Compact piston condensate pump for air-conditioning systems. The separate level detector allows flexible positioning, while the vibration-reducing mounting bracket helps minimise operating noise. Supplied with DrainSafe discharge tubing and a high-level safety switch.
| Specification | Details |
|---|
| Model | Si-30 |
| Specification reference | SI30CE02UN23 |
| Pump type | Mini piston pump with separate detector |
| Maximum flow rate | 20 L/h |
| Maximum discharge head | 10 m, delivering 4 L/h |
| Shut-off head | 14 m – zero flow |
| Maximum suction lift | 3 m |
| Power supply | 230 V AC, 50/60 Hz |
| Electrical input | 14 W |
| Sound level | 20 dB(A) at 1 m |
| Maximum condensate temperature | 35°C |
| Discharge tubing | 6 mm internal diameter |
| Safety switch | Normally closed, 3 A resistive at 250 V |
| Duty rating | Continuous |
| Protection rating | IP20 |
| Pump dimensions (L × W × H) | 66 × 43.5 × 60 mm |
| Weight including packaging | 0.48 kg |
Manufacturer sources: Sauermann Si-30 technical datasheet · Product information and dimensions
