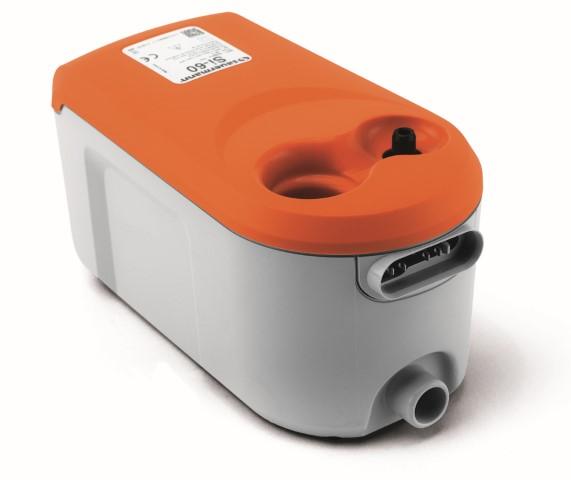

Sauermann Condensate Tank Pump 20 L/h, 0.37 L – Si-60
Compact piston condensate pump with an integrated 0.37 L tank and automatic level control. Suitable for ducted, cassette, fan-coil and floor or ceiling air-conditioning installations. Multiple inlet arrangements provide flexibility where installation space is restricted.
| Specification | Details |
|---|
| Model | Si-60 |
| Specification reference | SI60CE01UN23 |
| Pump type | Piston pump with integrated tank |
| Tank capacity | 0.37 L |
| Maximum flow rate | 20 L/h |
| Maximum discharge head | 10 m, delivering 4 L/h |
| Shut-off head | 14 m – zero flow |
| Power supply | 230 V AC, 50/60 Hz |
| Electrical input | 14 W |
| Sound level | ≤38 dB(A), at 1 m in application |
| Inlet adaptor sizes | 15, 20, 24, 32 and 40 mm internal diameter |
| Discharge tubing | 6 mm internal diameter |
| Safety switch | Normally closed, 3 A resistive at 250 V |
| Duty rating | Continuous |
| Protection rating | IPX4 |
| Dimensions (L × W × H) | 168 × 90 × 88 mm |
| Weight including packaging | 0.63 kg |
Manufacturer sources: Sauermann Si-60 technical datasheet · Product information and dimensions
