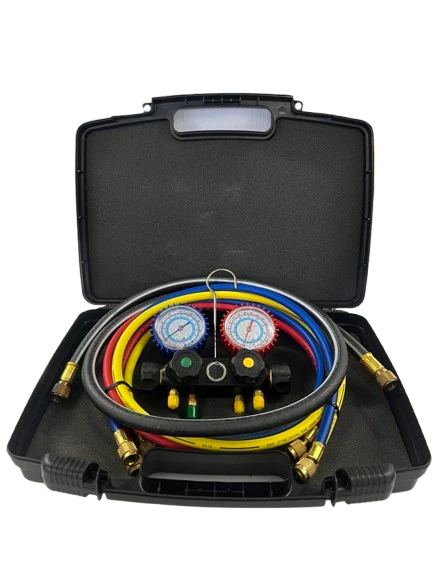

The CPS MV4TP5 BlackMax Manifold Gauge Set is a professional 4-valve analogue manifold kit designed for HVAC-R technicians working on refrigeration and air conditioning systems. Suitable for R134a, R22 and R404A, this manifold is built for pressure testing, charging, recovery and vacuum service work.
Featuring a durable anodised aluminium manifold body, Vortech™ deep vacuum valves, extra-large sight glass and large 80 mm Class 1.6 gauges, the MV4TP5 gives technicians a reliable field-ready setup for everyday refrigeration servicing. Supplied with 5 ft hoses, a vacuum hose and hard case, it is a complete manifold package for workshop and mobile service use.
Key Features
-
Professional 4-valve analogue manifold set
-
Suitable for R134a, R22 and R404A
-
Anodised aluminium manifold body
-

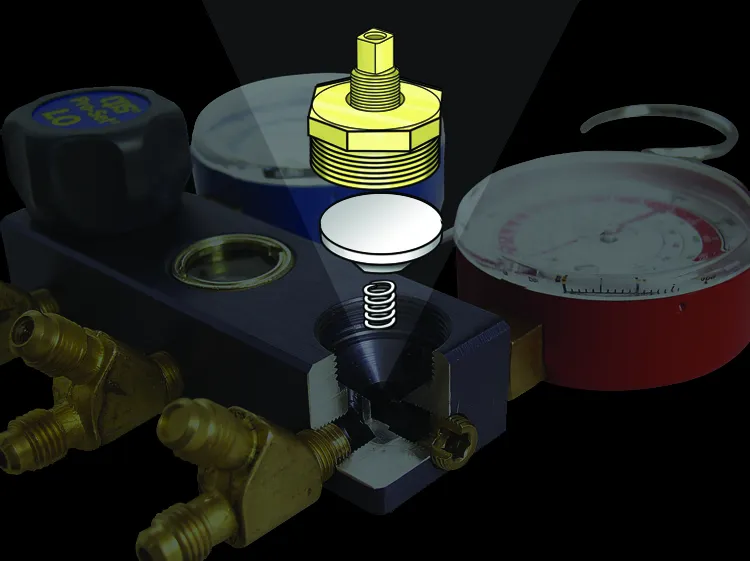

Vortech™ deep vacuum valves
-
Large 80 mm Class 1.6 gauges
-
Extra-large sight glass for refrigerant flow viewing
-
Protective gauge boots for field durability
-
1/4" SAE 45° fittings
-
Extra centre access port with Schrader valve
-
Hanging hook for practical site use
-
Supplied with hoses and hard carry case
Specifications
| Item | Specification |
|---|
| Brand | CPS |
| Model / Part Number | MV4TP5 |
| Product Type | 4-Valve Analogue Manifold Gauge Set |
| Refrigerant Scale | R134a / R22 / R404A |
| Manifold Body | Anodised aluminium block |
| Valve Type | Vortech™ deep vacuum valves |
| Gauge Size | 3-1/8" / 80 mm |
| Gauge Accuracy | Class 1.6 |
| Sight Glass | Extra-large sight glass |
| Fittings | 1/4" SAE 45° fittings |
| Access Port | Centre access port with Schrader valve |
| Hose Length | 5 ft |
| Case | Hard carry case |
| Application | Refrigeration and air conditioning service work |
Kit Includes
-
1 × CPS MV4TP5 4-valve manifold
-
3 × 5 ft charging hoses
-
1 × vacuum hose
-
Protective gauge boots
-
Hanging hook
-
Hard carry case
Applications
-
Refrigeration service work
-
Air conditioning diagnostics
-
R134a, R22 and R404A systems
-
Refrigerant pressure testing
-
Refrigerant charging
-
Recovery and evacuation setup
-
Commercial refrigeration maintenance
-
Workshop and mobile HVAC-R service
The CPS MV4TP5 gives technicians a robust 4-valve manifold kit for common refrigeration service applications. With Vortech deep vacuum valves, large gauges, sight glass, hoses and hard case included, it is a practical analogue manifold set for professional HVAC-R service teams.
