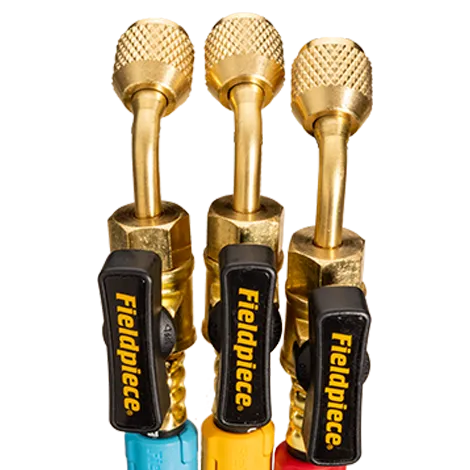

HR1B Fieldpiece 1/4" Ball Valve Hose
The Fieldpiece HR1B is a premium single 1/4" ball valve refrigerant hose designed for HVAC-R charging, recovery and evacuation work. The integrated ball valve gives technicians direct flow control at the hose connection, helping make refrigerant handling cleaner and more controlled during service work.
Built for professional field use, the HR1B features Fieldpiece’s rugged full-ring triple crimp construction, A2L-compatible design and a permeation barrier that meets SAE J2196. Fieldpiece lists the hose as 5 ft / 1.5 m long, with 1/4" x 1/4" fittings, 800 psi working pressure and 4000 psi burst pressure. Fieldpiece Instruments
Key Features
- Single 1/4" ball valve hose
- Designed for charging, recovery and evacuation
- Ball valve for controlled refrigerant flow
- A2L compatible
- Rugged full-ring triple crimp construction
- Permeation barrier meets SAE J2196
- Customisable hose colour tags included
- Suitable for HVAC-R installation, servicing and maintenance work
Specifications
| Specification | Details |
|---|
| Product Code | HR1B |
| Brand | Fieldpiece |
| Product Type | Ball Valve Refrigerant Hose |
| Hose Quantity | 1 hose |
| Fitting Size | 1/4" x 1/4" |
| Hose Length | 5 ft / 1.5 m |
| Working Pressure | 800 psi |
| Burst Pressure | 4000 psi |
| Compatibility | A2L compatible |
| Barrier Standard | SAE J2196 |
| Application | Charging, recovery and evacuation |
Applications
- Air conditioning service work
- Refrigeration service work
- Refrigerant charging
- Refrigerant recovery
- System evacuation
- Installation and commissioning
- Preventative maintenance
The Fieldpiece HR1B 1/4" Ball Valve Hose gives technicians a durable single-hose option with built-in flow control for reliable HVAC-R charging, recovery and evacuation work.
