HR3XB Fieldpiece 1/4" Ball Valve Hose Extension Set - 3 Pack
The Fieldpiece HR3XB is a 3-pack 1/4" ball valve hose extension set designed for HVAC-R charging, recovery and evacuation work. These short extension hoses help technicians make cleaner, easier connections in tight service areas while giving direct flow control at the connection point.
Each extension hose is 200mm / 8" long and fitted with 1/4" Female x 1/4" Male connections. The integrated ball valves help manage refrigerant flow during connection, disconnection and service tasks. Fieldpiece lists the HR3XB as A2L compatible, with rugged full-ring triple crimp construction and a permeation barrier that meets SAE J2196. Fieldpiece Instruments
Key Features
- 3-pack 1/4" ball valve hose extension set
- Short 200mm / 8" hose length for tight service areas
- Integrated ball valves for controlled refrigerant flow
- Helps reduce strain on manifolds, probes, gauges and service ports
- Suitable for charging, recovery and evacuation
- A2L compatible
- Rugged full-ring triple crimp construction
- Permeation barrier meets SAE J2196

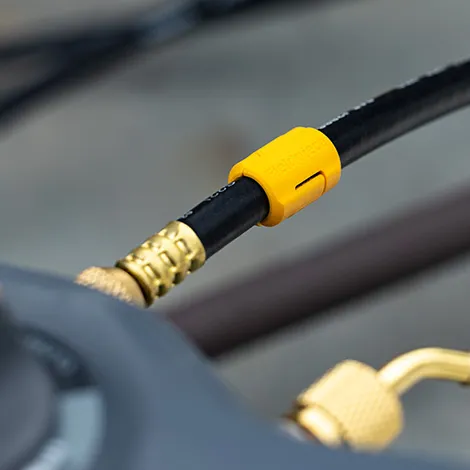

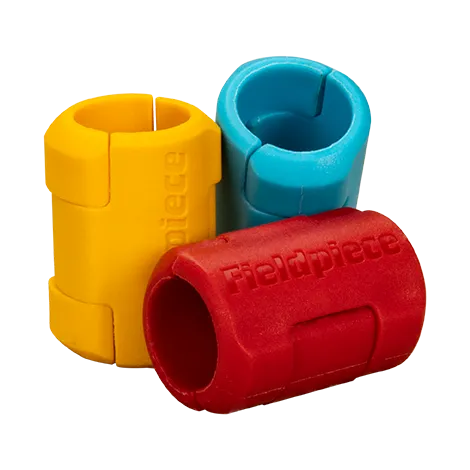

- Customisable hose colour tags included
Specifications
| Specification | Details |
|---|
| Product Code | HR3XB |
| Brand | Fieldpiece |
| Product Type | Ball Valve Hose Extension Set |
| Pack Quantity | 3 hose extensions |
| Fitting Size | 1/4" Female x 1/4" Male |
| Hose Length | 200mm / 8" |
| Working Pressure | 800 psi |
| Burst Pressure | 4000 psi |
| Compatibility | A2L compatible |
| Barrier Standard | SAE J2196 |
| Application | Charging, recovery and evacuation |
Applications
- Air conditioning service work
- Refrigeration service work
- Refrigerant charging
- Refrigerant recovery
- System evacuation
- Tight access service ports
- Probe, gauge and manifold connection extensions
- Installation and commissioning
The Fieldpiece HR3XB 1/4" Ball Valve Hose Extension Set gives HVAC-R technicians a compact, durable extension hose set with built-in ball valves for better control, reduced connection strain and easier refrigerant handling in tight service locations.
