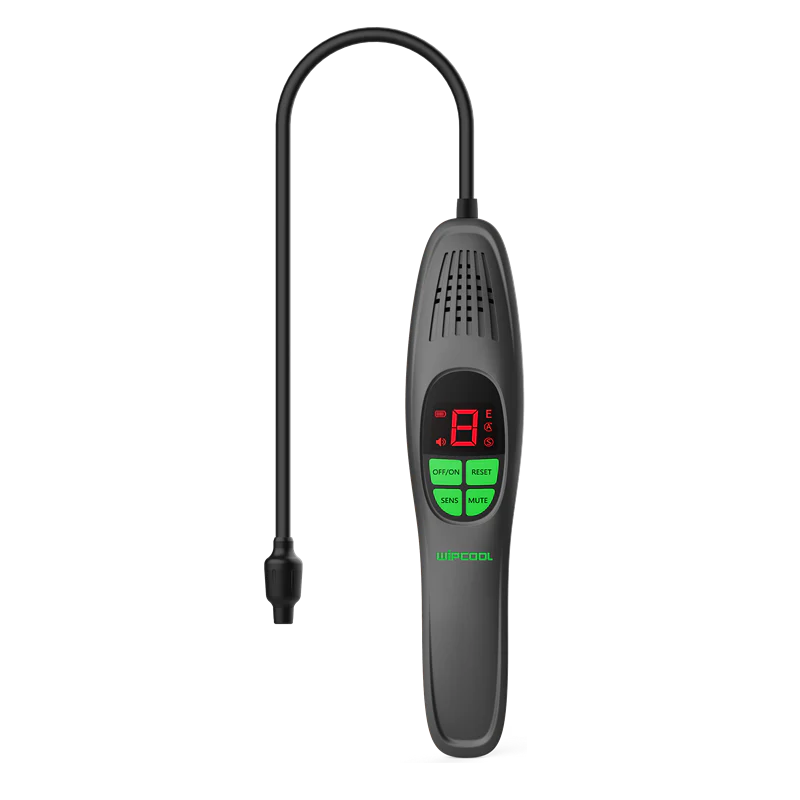

The WIPCOOL ALD-2 Heated Diode Leak Detector is a compact refrigerant leak detector designed for HVAC-R technicians working across air conditioning, refrigeration and heat pump systems. Using a heated diode gas sensor, the ALD-2 provides high sensitivity leak detection for common refrigerants with fast response and simple operation.
With a flexible 420 mm probe, LCD display, automatic/manual reset and minimum detectable leakage down to ≤3 g/year, the ALD-2 is a practical service tool for locating refrigerant leaks around pipework, coils, valves, fittings and service connections. It is suitable for CFC, HCFC, HFC, HC, and HFO refrigerants, making it useful for both legacy and modern HVAC-R systems.
Key Features
-
Heated diode refrigerant leak detector
-
Suitable for CFC, HCFC, HFC, HC and HFO refrigerants
-
High precision and sensitivity sensor
-
Minimum detectable leakage down to ≤3 g/year
-
Fast reaction time of ≤3 seconds
-
Short warm-up time of 30 seconds
-
Automatic and manual reset function
-
Flexible 420 mm / 16.5" probe for checking tight spaces
-
LCD display for clear leak detection feedback
-
Battery powered for portable site use
-
Ideal for HVAC-R service, maintenance and leak checking
Specifications
| Item | Specification |
|---|
| Brand | WIPCOOL |
| Model / Part Number | ALD-2 / ALD2 |
| Product Type | Heated Diode Refrigerant Leak Detector |
| Sensor Type | Heated diode gas sensor |
| Minimum Detectable Leakage | ≤3 g/year |
| Reaction Time | ≤3 seconds |
| Warm-Up Time | 30 seconds |
| Reset Time | ≤10 seconds |
| Reset Function | Automatic / Manual |
| Applicable Refrigerants | CFCs, HCFCs, HFCs, HCs and HFOs |
| Sensor Lifetime | ≥1 year |
| Probe Length | 420 mm / 16.5" |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | <80% RH, non-condensing |
| Power Supply | 3 × AA alkaline batteries |
| Battery Life | Approx. 7 hours continuous use |
Applications
-
Refrigerant leak detection
-
Air conditioning service work
-
Refrigeration system maintenance
-
Heat pump diagnostics
-
Split system installation and servicing
-
Leak checking around coils, valves, joints and fittings
-
CFC, HCFC, HFC, HC and HFO refrigerant systems
The WIPCOOL ALD-2 gives HVAC-R technicians a sensitive, portable and easy-to-use refrigerant leak detector for everyday service work. With heated diode sensing, fast response and broad refrigerant compatibility, it is a practical choice for locating leaks quickly and accurately on site.
