Appion MegaFlow Vacuum Rated 1/4" Valve Core Removal Tool

Appion MegaFlow™ 1/4" Valve Core Removal Tool – MGAVCT

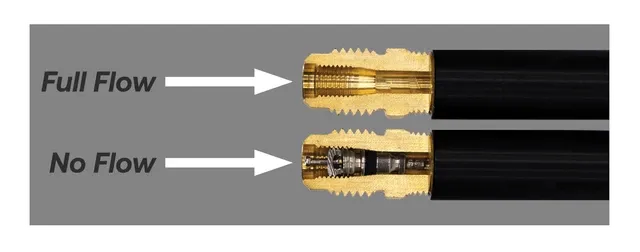

The Appion MGAVCT is a vacuum-rated valve core removal tool designed for HVAC-R evacuation and refrigerant recovery. Removing the valve core eliminates a major restriction at the system access port, allowing significantly higher flow during evacuation and recovery.

The MGAVCT features a 1/4" female flare system connection, 1/4" male flare service connection, adjustable valve-core gripping tip and magnetic base to help retain the stem during service. It is designed for deep-vacuum work and high-pressure refrigerant systems.

Features

• Removes restrictive Schrader valve cores during evacuation and recovery

• 1/4" Female Flare × 1/4" Male Flare

• 1/4" side port for gauges and service equipment

• Vacuum rated to 20 microns

• 800 PSI working pressure

• 4,000 PSI burst pressure

• Suitable for high-pressure refrigerants including R410A

• Adjustable valve-core gripping tip

• Magnetic base helps prevent misplaced stems

• Double O-ring sealing arrangement

• Serviceable construction with replacement seals and stem assemblies available

Technical Specifications

Service & Replacement Parts

The MGAVCT is a strong choice for technicians using high-flow vacuum and recovery equipment, giving the system access port a substantially less restrictive flow path while still allowing the valve core to be removed, isolated and reinstalled during service.

Manufacturer sources:

Appion MGAVCT – 1/4" Valve Core Removal Tool

Appion KTMV50 Maintenance Kit

Appion KTMV25 Valve Core Tool Rebuild Kit

Appion AY0539 Magnet Stem Assembly
