1/2" Speed Y Assembly 3/8x3/8x1/2

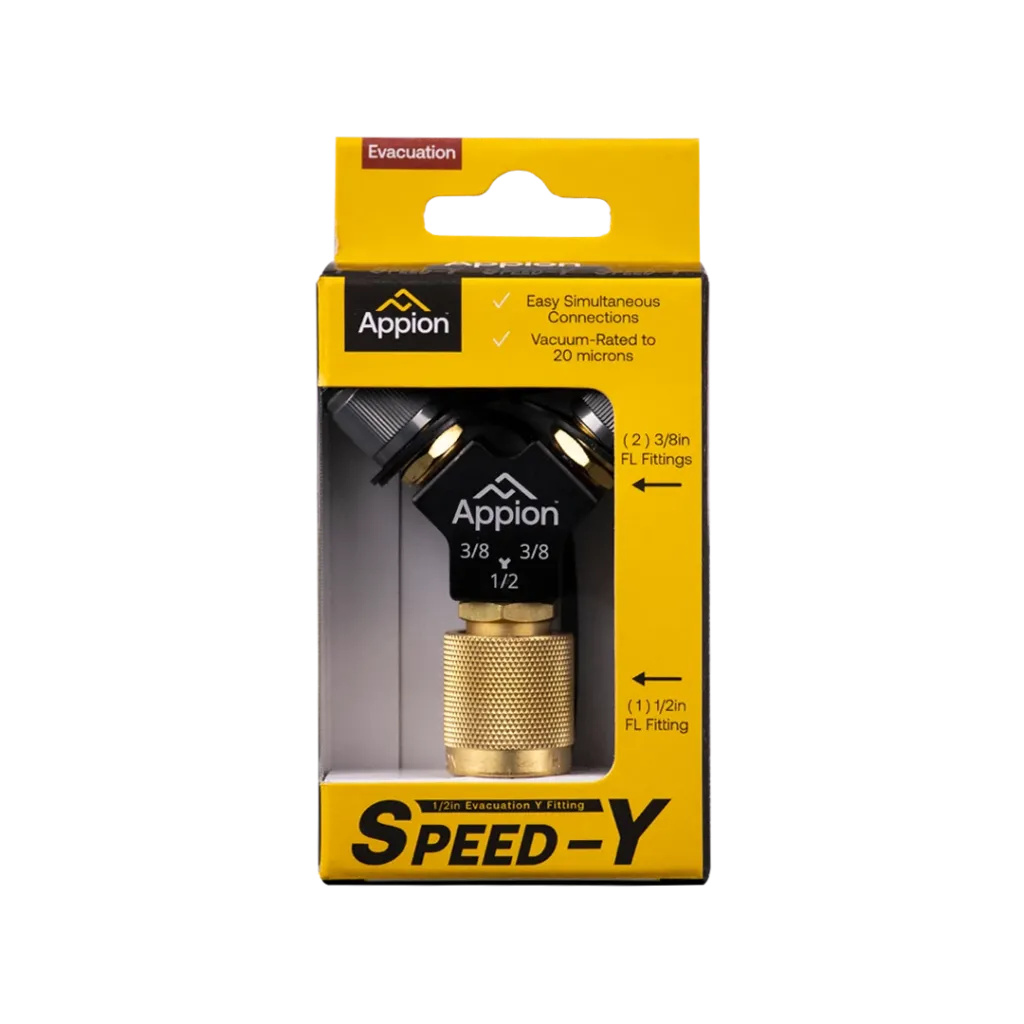

Appion MegaFlow™ 1/2" Speed-Y – SPDY12

The Appion SPDY12 MegaFlow Speed-Y is a high-flow Y-fitting designed to connect two evacuation or recovery hoses to a single vacuum pump or recovery-machine port.

Its large internal diameter provides an unrestricted flow path compared with a traditional manifold arrangement, helping maximise conductance during HVAC-R evacuation and refrigerant recovery. The SPDY12 is particularly useful on larger or multi-port systems where multiple hoses need to be connected simultaneously.

Features

• High-flow Y-fitting for evacuation and refrigerant recovery

• 1 × 1/2" Female Flare inlet

• 2 × 3/8" Male Flare outlets

• Large internal diameter for unrestricted flow

• Allows two service hoses to connect to a single pump or recovery-machine port

• Vacuum rated to 20 microns

• Designed for high-pressure refrigerants including R410A

• Premium aircraft-grade aluminium construction

• Protective plug helps keep moisture and contaminants out

• Suitable for use with virtually any vacuum pump or recovery machine

Technical Specifications

Service & Replacement Parts

Appion identifies a 1/2" gasket kit as the compatible repair kit for the SPDY12. Its OEM catalogue identifies the corresponding KT11GG-R as the 1/2" MegaFlow gasket 10-pack.

The SPDY12 is a useful addition to high-flow evacuation setups, particularly where a vacuum pump has limited connection ports and multiple large-diameter hoses are required.
