Appion MegaFlow Vacuum Speed Kit – SPDKIT-V
The Appion SPDKIT-V MegaFlow SpeedKit-V is a high-flow evacuation kit designed to maximise vacuum pump performance by removing restrictive valve cores and using large-bore vacuum-rated hoses.
The kit supports both standard 1/4" systems and 5/16" ductless systems, with all included tools vacuum-rated to 20 microns.

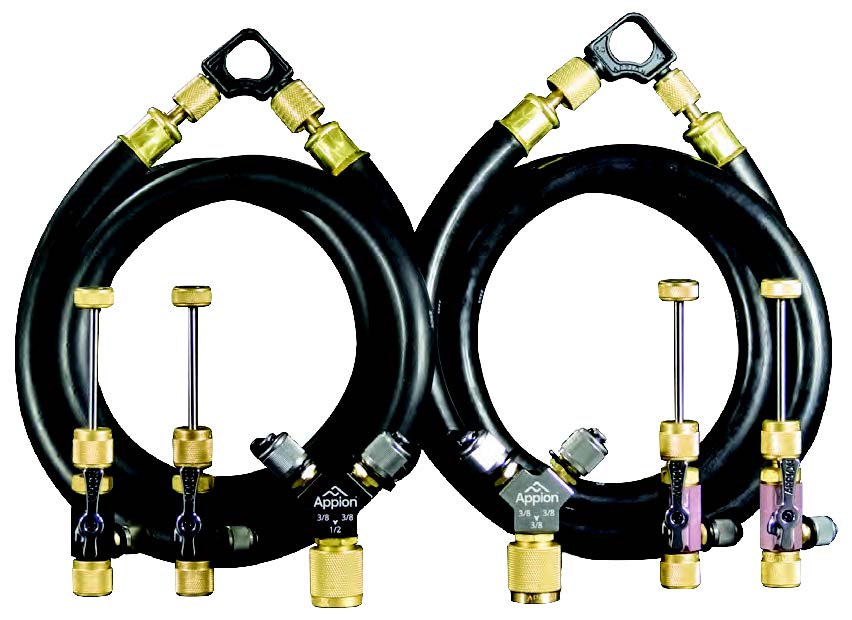

Kit Includes

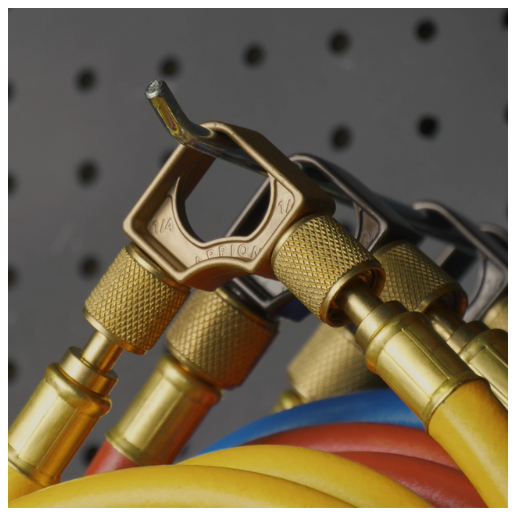

2 × MGAVCT – 1/4" Valve Core Removal Tools
2 × MGAVCR – 5/16" Valve Core Removal Tools
2 × 1/2" × 6 ft MegaFlow vacuum-rated evacuation hoses

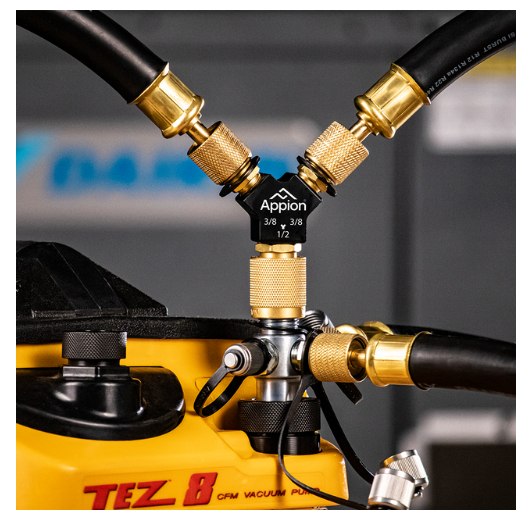

1 × 3/8" Speed-Y
1 × 1/2" Speed-Y

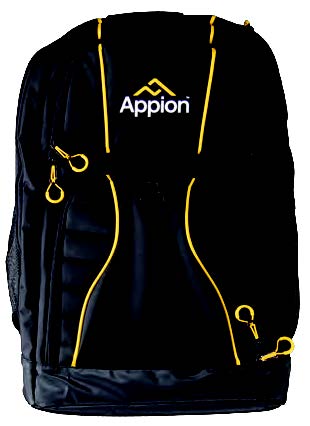

1 × MegaFlow SpeedKit carry bag / backpack
Features
Designed for fast HVAC-R evacuation
Large 1/2" internal diameter hoses maximise conductance
Hoses resist permeation and collapse under deep vacuum
Valve core removal tools increase system flow
Works with 1/4" and 5/16" service connections
Includes both 3/8" and 1/2" Speed-Y fittings
Speed-Y fittings provide 2 × 3/8" male flare outlets
All included evacuation tools rated to 20 microns
Compatible with most vacuum pumps
Suitable for high-pressure refrigerant systems including R410A
Service Parts
| Part Number | Description |
|---|
| KT11AA-R | 1/4" MegaFlow hose gasket kit – 10 pack |
| KT11EE-R | 3/8" MegaFlow hose gasket kit – 10 pack |
| KTMV25 | Valve Core Removal Tool rebuild kit |
| KTMV40 | VCRT body swivel O-ring kit – 10 pack |
Appion also lists a 1/2" gasket kit as a compatible service item for the SPDKIT-V.
Manufacturer source: Appion SPDKIT-V Vacuum Speed Kit
