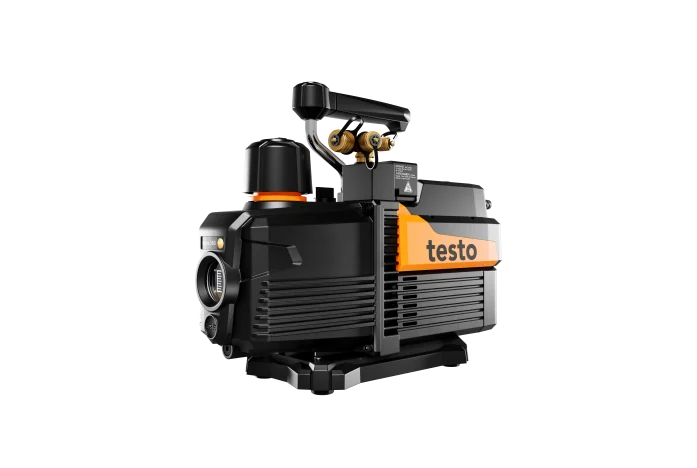

The Testo 565i is a smart two-stage vacuum pump designed for professional HVAC-R technicians working on air conditioning, refrigeration and heat pump systems. Built for faster, cleaner evacuation work, the 565i can automate the evacuation process when paired with the Testo 552i vacuum probe, stopping automatically once the target vacuum is reached and then starting a vacuum hold test.
Available in 7 CFM / 198 L/min and 10 CFM / 283 L/min versions, the Testo 565i is suitable for modern refrigerant systems, including A2L and A3 refrigerant applications. It connects with the Testo Smart App, allowing technicians to configure measurements, monitor live evacuation data and document results directly from a phone or tablet.
Key Features
-
Smart vacuum pump for HVAC-R evacuation work
-
Available in 7 CFM and 10 CFM models
-
Fully automated evacuation when used with the Testo 552i vacuum probe
-
Automatic vacuum hold / decay test after target vacuum is reached
-
Suitable for A2L and A3 refrigerants
-
Bluetooth connection to the Testo Smart App
-
Live monitoring and digital measurement documentation
-
Easy oil change system
-

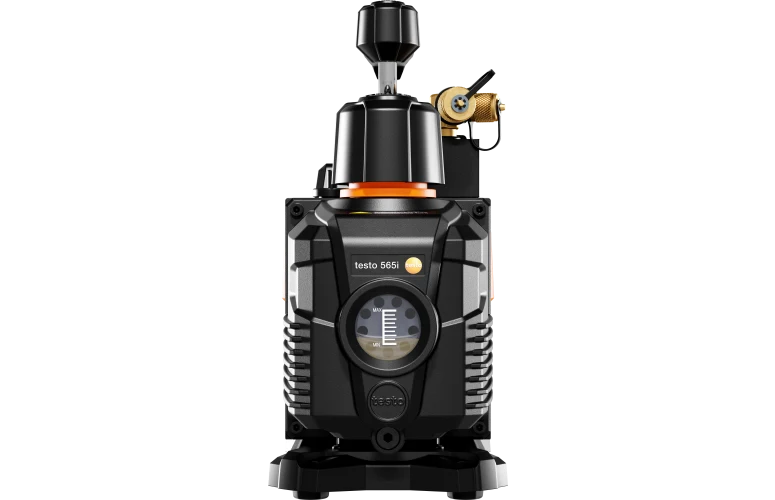

Oil inspection glass for quick oil level and condition checks
-
Non-return valve helps prevent vacuum loss during power interruption
-
Designed for refrigeration, air conditioning and heat pump systems
Specifications
| Item | Specification |
|---|
| Brand | Testo |
| Model | 565i |
| Product Type | Smart Vacuum Pump |
| Pump Type | Two-stage rotary vane vacuum pump |
| Flow Rate Options | 7 CFM / 198 L/min or 10 CFM / 283 L/min |
| Refrigerant Suitability | A2L and A3 compatible |
| Smart Function | Automated evacuation and hold test with Testo 552i |
| Connectivity | Bluetooth / Testo Smart App |
| App Functions | Configure, monitor, manage and document evacuation data |
| Oil Monitoring | Inspection glass |
| Safety Feature | Non-return valve to help prevent vacuum loss |
| Common Inlet Connections | 1/4" SAE, 3/8" SAE and 1/2" SAE |
| Application | HVAC-R evacuation, dehydration and commissioning |
Applications
-
Air conditioning system evacuation
-
Refrigeration system evacuation
-

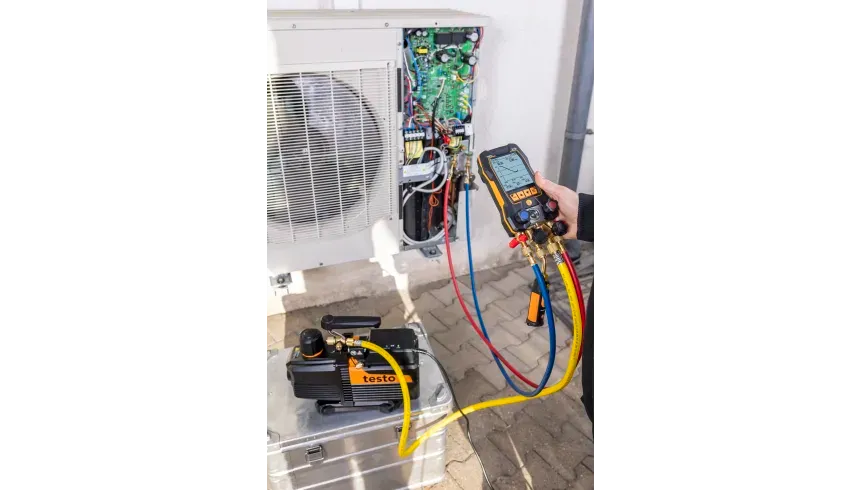

Heat pump commissioning
-
A2L and A3 refrigerant system servicing
-
Deep vacuum dehydration
-
New installations and major repairs
-
Leak checking with vacuum hold testing
-
Professional HVAC-R service documentation
The Testo 565i Smart Vacuum Pump gives HVAC-R technicians a more automated and traceable way to complete evacuation work. With smart app control, automated hold testing, A2L/A3 compatibility and high-flow 7 CFM or 10 CFM performance, it is a strong choice for modern refrigeration and air conditioning service work.
