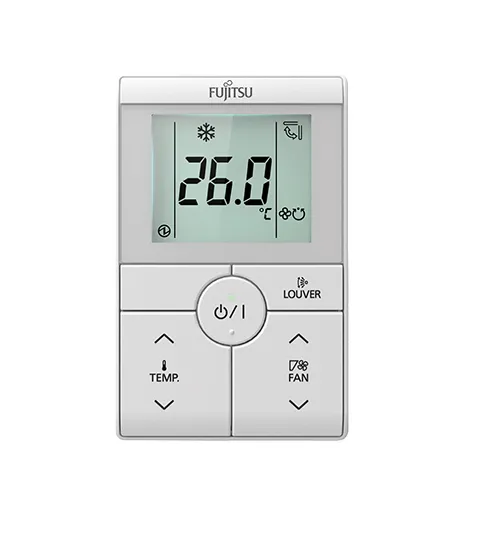

Fujitsu UTY-RSRYT Simple Wired Remote Controller
The Fujitsu UTY-RSRYT is a compact wired wall controller designed for straightforward operation of compatible Fujitsu General air-conditioning systems. It provides essential controls through a simple button layout and clear backlit display, making it ideal for residential, commercial, hotel and rental-property applications.
Unlike the UTY-RHRYT, this model allows the user to change the operating mode, providing full everyday control without the complexity of a premium touchscreen controller.
Key Features
Start and stop control
Operating-mode selection
Temperature adjustment
Fan-speed selection
Airflow-direction control on compatible indoor units
Built-in room-temperature sensor
Clear backlit LCD display
Temperature set-point limitation
Error and filter-status display
Non-polar 2-wire communication
Can control up to 16 compatible indoor units in one remote-control group
Direct connection to compatible indoor units without a separate communication interface
Specifications
| Specification | Details |
|---|
| Model | UTY-RSRYT |
| Controller Type | Simple wired controller |
| Mode Selection | Yes |
| Communication | Non-polar 2-wire |
| Supply Voltage | 12V DC |
| Dimensions | 120 × 75 × 19 mm |
| Weight | Approximately 120 g |
| Temperature Sensor | Built-in |
| Display | Backlit LCD |
Compatibility
Compatible with selected Fujitsu General split, multi-split and AIRSTAGE indoor units supporting 2-wire controllers, including:
ARTH09KSLAP
ARTH12KSLAP
ARTH18KSLAP
A suitable 2-core controller cable is required. No additional communication kit is required when connecting the controller to the ARTH KSLAP bulkhead range.
Product update: The UTY-RSRYT has been superseded by UTY-RSRYT1, which is its direct replacement with unchanged compatibility and operation.
