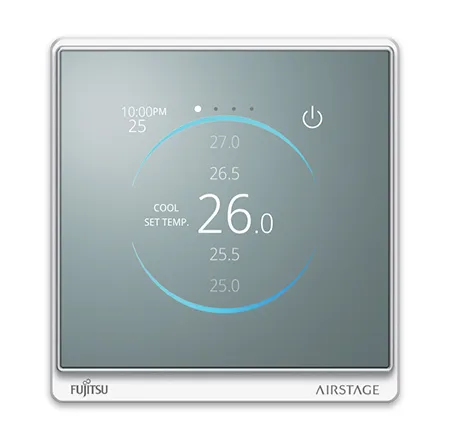

Fujitsu Airstage Kagami UTY-RVRY Touchscreen Wired Remote Controller
The Fujitsu Airstage Kagami UTY-RVRY is a premium wired remote controller featuring an award-winning mirrored-glass design and a responsive 4-inch colour touchscreen. Its modern appearance allows it to blend discreetly into residential, hotel and commercial interiors while providing intuitive control of compatible Fujitsu Airstage air-conditioning systems.
The touchscreen interface can be operated using vertical and horizontal swipe gestures, providing convenient access to temperature, operating mode, fan speed, airflow direction, timers and supported energy-saving functions. A colour-changing LED beneath the controller indicates the current operating mode at a glance.
Features
Premium mirrored-glass appearance
Award-winning contemporary design
4-inch colour TFT touchscreen
High-resolution 480 × 480-pixel display
Intuitive vertical and horizontal swipe operation
Colour-coded operating-status LED
Temperature, mode and fan-speed control
Airflow-direction adjustment
Weekly scheduling
Auto-off timer
Set-temperature limits
Set-temperature automatic return
Economy and energy-saving functions
Built-in room-temperature sensor
Child-safety lock
Password-protected settings
Filter-cleaning reminder and reset
Error-history and service-information display
Refrigerant-cycle monitoring on supported systems
Custom hotel or company logo display
Bluetooth-assisted installer setup
Supports group control of up to 16 compatible indoor units
Specifications
| Specification | Details |
|---|
| Brand | Fujitsu Airstage |
| Product Name | Kagami Wired Remote Controller |
| Model | UTY-RVRY |
| Controller Type | Wired touchscreen remote controller |
| Display | 4-inch TFT LCD colour touchscreen |
| Display Resolution | 480 × 480 pixels |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 1.0W |
| Dimensions | 121.5 × 116 × 26mm |
| Weight | 225g |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20–90% RH, non-condensing |
| Storage Temperature | −10°C to 60°C |
| Storage Humidity | 20–90% RH, non-condensing |
| Communication Wiring | Non-polar two-core twisted-pair cable |
| Recommended Cable Size | 0.75–1.25mm² |
| Maximum Controller Cable Length | 70m |
| Maximum Indoor Units per Control Group | 16 compatible indoor units |
| Maximum Controllers – VRF | 2 per remote-controller group |
| Maximum Controllers – RAC/PAC | 1 |
| Bluetooth Standard | Bluetooth Low Energy 4.2 |
| Bluetooth Frequency | 2.4GHz |
| Maximum Bluetooth RF Power | 7mW |
| Installation Type | Wall mounted |
Colour-Coded Status Indicator
The LED lamp beneath the controller provides an immediate visual indication of the selected operating mode:
| LED Colour | Operating Mode |
|---|
| Blue | Cooling |
| Red | Heating |
| Green | Dry |
| Purple | Automatic |
The status lamp can be switched off where illumination may be undesirable, such as in bedrooms or hotel rooms at night.
Comfort Controls
Depending on the connected indoor unit and system configuration, the Kagami controller provides access to:
System on and off
Set-temperature adjustment
Cooling, heating, dry, fan and automatic modes
Fan-speed selection
Horizontal and vertical airflow-direction control
Individual airflow-position hold
Powerful operation
Comfort airflow
Economy operation
Occupancy-sensor settings
Energy-saving fan control
Anti-freeze and emergency-heating functions
Scheduling and Energy Management
The UTY-RVRY incorporates advanced scheduling and temperature-management functions suitable for homes, offices, retail stores, accommodation and other managed spaces.
| Function | Description |
|---|
| Weekly Timer | Creates operating schedules for selected days and times |
| Auto-Off Timer | Automatically switches the system off after a nominated period |
| Set Temperature Auto Return | Returns the system to a nominated temperature after a selected time |
| Set Temperature Limit | Restricts the available heating and cooling temperature ranges |
| Day-Off Setting | Temporarily excludes selected days from the normal weekly schedule |
| Economy Mode | Operates supported indoor units with reduced energy consumption |
| Outdoor Unit Low-Noise Mode | Reduces outdoor-unit operating noise where supported |
| Optimum Start | Starts operation in advance to achieve the target temperature by the scheduled time |
Bluetooth Installer Setup
The controller’s Bluetooth connection is intended for installer configuration through the Airstage Remo Set app. It can be used to transfer initial controller settings and supported indoor-unit functions from a smartphone to the controller.
Settings can also be read from one controller and copied to additional Kagami controllers, helping reduce commissioning time on larger installations. Installer contact details and custom logo images can also be transferred to the controller.
Bluetooth is provided for setup and commissioning. It does not provide Wi-Fi or internet-based air-conditioner control.
Service and Maintenance Functions
Displays current operating and system-status information
Provides access to stored error history
Shows error information for connected equipment
Supports indoor-unit address verification
Displays registered service contact information
Provides filter-sign reset
Displays selected refrigerant-cycle sensor values on compatible systems
Assists service technicians with system diagnosis and commissioning
Refrigerant-cycle monitoring availability depends on the connected indoor and outdoor equipment.
Included Components
| Included Item | Quantity |
|---|
| UTY-RVRY Kagami Wired Remote Controller | 1 |
| M4 × 16mm Self-Tapping Installation Screws | 2 |
| Cable Tie | 1 |
| Installation Manual | 1 |
| Operation Manual | 1 |
Compatibility and Installation
The UTY-RVRY must be connected to a compatible Fujitsu Airstage indoor unit.
Some residential and light-commercial indoor units require an optional communication kit to accept a wired controller.
Compatibility and the required interface must be confirmed against the exact indoor-unit model.
A single controller can simultaneously operate a group of up to 16 compatible indoor units.
VRF systems can support primary and secondary controller arrangements, subject to system configuration.
Weekly scheduling, automatic temperature return and certain commissioning functions are restricted to the primary controller in a dual-controller installation.
The controller contains a room-temperature sensor and should not be installed in direct sunlight, in a draught or directly within the indoor unit’s supply-air path.
Installation and commissioning should be completed by a suitably qualified technician.
Typical Applications
Residential ducted air-conditioning systems
Fujitsu Airstage VRF systems
Compatible wall-mounted and split systems
Offices and meeting rooms
Hotels and serviced apartments
Retail stores
Restaurants and hospitality venues
Schools and public facilities
Commercial buildings requiring scheduled temperature control
Important Information
Available functions depend on the connected indoor unit, outdoor unit and system configuration.
The UTY-RVRY is a wired controller and does not provide Wi-Fi or remote internet control.
Bluetooth functionality is intended primarily for installer setup using the Airstage Remo Set app.
A communication kit may be required when connecting the controller to residential or light-commercial indoor units.
Confirm compatibility and interface requirements before ordering.
