anywAiR® Zoneconnex Wi-Fi Zone Controller – UTY-ZCAW1
The anywAiR Zoneconnex is a Wi-Fi enabled zone controller designed for compatible General AIRSTAGE ducted air-conditioning systems. It provides central control of the air conditioner and up to 10 zones through the supplied 7-inch TouchPoint LCD or the anywAiR Zoneconnex mobile app.
Each zone can be switched on or off and adjusted from 0–100% airflow in precise 5% increments. Installers can also set minimum and maximum damper positions, group multiple dampers under one zone and configure up to three relief zones.
Key Features
Controls up to 10 × 24VAC RJ12 zone motors
Variable airflow adjustment in 5% increments
7-inch wall-mounted TouchPoint LCD
Wi-Fi control through Apple and Android devices
Air-conditioning mode, temperature and fan-speed control
Individual zone on/off and airflow control
Custom zone names
Scenes and seven-day scheduling
Multiple dampers can operate as one zone
Configure up to three relief zones
Displays native two and three-digit system fault codes
Supports multiple Zoneconnex systems within one mobile app
Invite, remove and manage additional household users
Direct UART connection to the indoor unit PCB
Local Wi-Fi commissioning without requiring home internet
Technician-managed over-the-air firmware updates
Optional Wireless Room Sensors
The optional TS-ZC1 DROPLET sensor measures room temperature and humidity using wireless LoRa communication, with no wall cabling required.
Up to 10 sensors can connect to each Zoneconnex system. Sensors may be assigned to individual zones for temperature and humidity display, left unassigned for general monitoring or selected as the system’s primary temperature-sensing point. Multiple sensors assigned to the same zone provide an averaged reading.
Please note that DROPLET sensors provide temperature and humidity sensing only. They do not automatically modulate zone airflow based on room temperature.

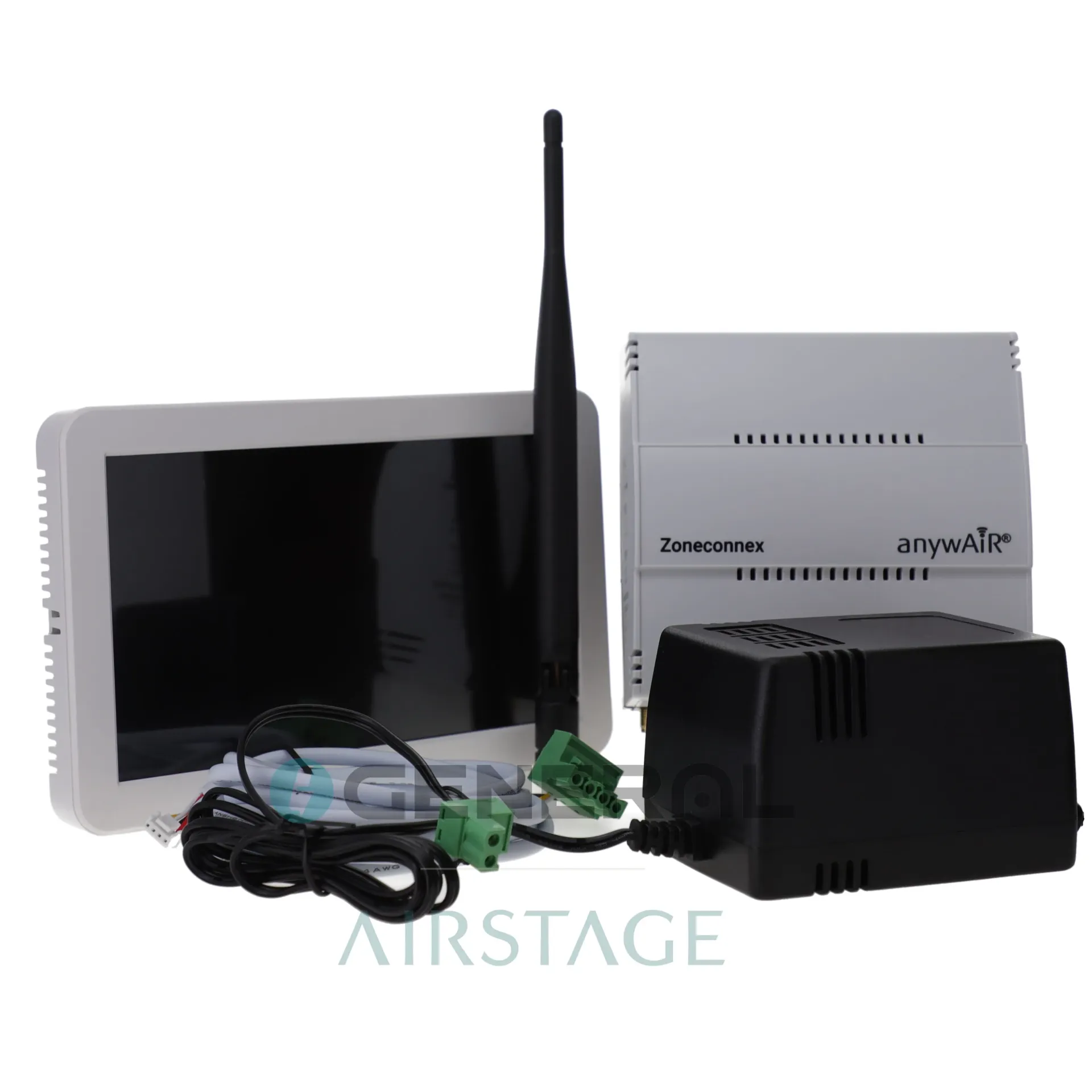

Package Includes
Zoneconnex ACBM control module
7-inch TouchPoint LCD
LoRa antenna
Prewired 24VAC power supply
15 m four-core LCD power and communication cable
2 m PAP-04V-S UART communication cable
Mounting screws
Compatible General AIRSTAGE Indoor Units
High Static Ducted
ARTH24KHTA, ARTH30KHTA, ARTH36KHTA, ARTH45KHTA, ARTH54KHTA, ARTH60KHTA, ARTH60KHTB, ARTH65KHTA, ARTH72KHTA and ARTH90KHTA.
Mid Static Ducted
ARTH18KMTAP, ARTH24KMTAP, ARTH30KMTAP, ARTH36KMTAP, ARTH45KMTAP and ARTH54KMTAP.
Bulkhead
ARTH09KSLAP, ARTH12KSLAP, ARTH18KSLAP, ARTH09KLLAP, ARTH12KLLAP and ARTH18KLLAP.
VRF compatibility is not currently confirmed. Always verify indoor-unit compatibility before ordering.
