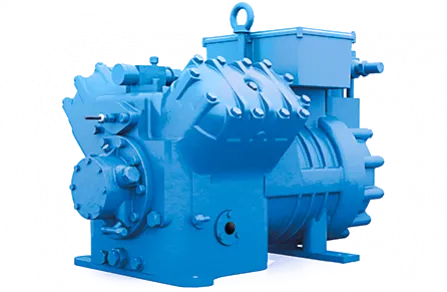

Frascold V20-59Y Semi-Hermetic Refrigeration Compressor – 3 Phase
The Frascold V20-59Y is a four-cylinder semi-hermetic reciprocating compressor for commercial and industrial refrigeration. Featuring a 14.9 kW nominal motor and 58.48 m³/h displacement at 50 Hz, it offers a serviceable solution with optional capacity control.
Technical Specifications
| Specification | Details |
|---|
| Model | V20-59Y |
| Cylinders | 4 |
| Nominal motor power | 14.9 kW |
| Power supply | 380–420 V / 3 phase / 50 Hz |
| Starting method | Part winding start (PWS) |
| Displacement at 50 Hz | 58.48 m³/h |
| Maximum operating current | 35.3 A |
| Locked rotor current — PWS | 107 A |
| Suction / discharge connection | 1⅝″ / 1⅛″ |
| Lubricant / oil charge | POE68 / 4 litres |
| Dimensions — L × W × H | 672 × 460 × 463 mm |
| Base mounting centres | 381 × 305 mm |
| Net weight | 174 kg |
Recommended Options — Available Separately
| Option | Application |
|---|
| Crankcase heater | Helps limit refrigerant migration during shutdown. |
| RSH capacity control head | Matches output to varying refrigeration loads. |
| Unloaded start head | Reduces compressor load during starting. |
| Oil equalisation adaptor kit | For parallel compressor installations. |
Confirm refrigerant and accessory selection against operating conditions. Motor power is not cooling capacity.
