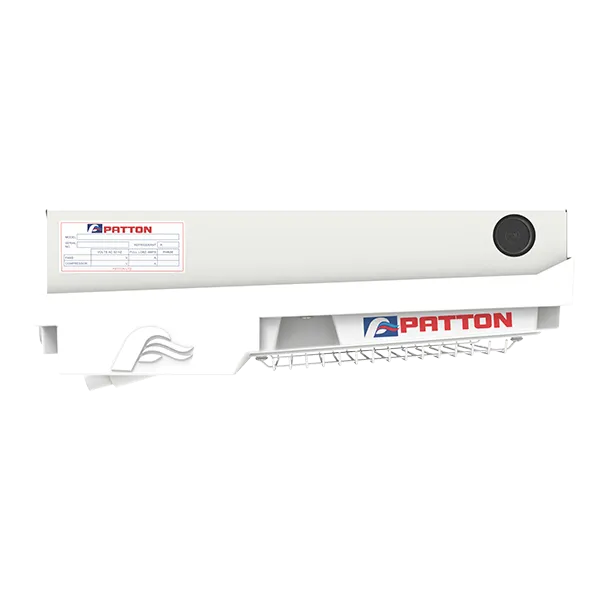

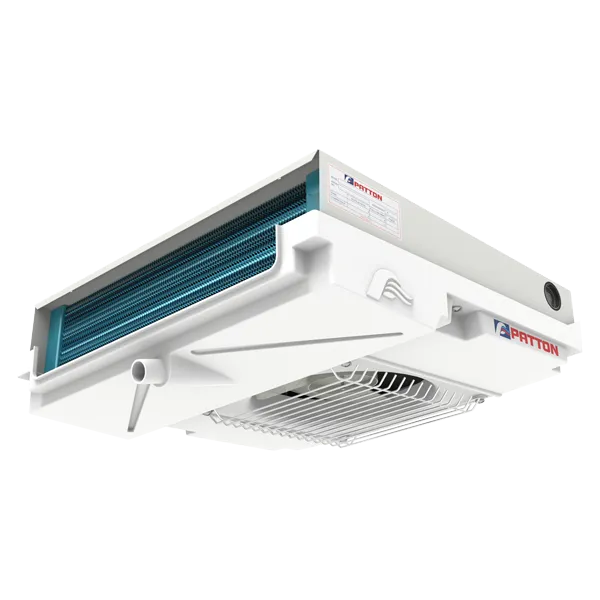

Patton SM08 Medium-Temperature Cabinet Cooler
The Patton SM08 is a compact, low-profile evaporator designed for refrigerated display cabinets, bottle coolers and small coolroom applications. Its slimline construction maximises usable storage space, while the corrosion-resistant Patton-coated coil and removable ABS drain tray provide reliable performance and straightforward cleaning.
Key Features
- Medium-temperature cabinet cooler
- Low-profile design for confined installations
- Two quiet 175 mm fan motors
- Patton-coated fins for enhanced corrosion protection
- Easy-clean white ABS drain tray
- White colour-steel casing
- Optimised 3/8-inch rifle-bore coil
- Suitable for R404A/R507, R448A/R449A, R407F and R134a systems
- Natural-air defrost—no electric defrost heaters
Specifications
| Specification | SM08 |
|---|
| R404A capacity at −4°C SST / 6 K TD | 840 W |
| R448A capacity at −4°C SST / 6 K TD | 810 W |
| R134a capacity at −4°C SST / 6 K TD | 750 W |
| Air volume | 140 L/s |
| Fans | 2 × 175 mm |
| Total fan power | 24 W |
| Fan current | 0.48 A |
| Power supply | 220–240 V, single-phase, 50 Hz |
| Distributor inlet | 3/8 inch |
| Suction outlet | 3/8 inch |
| Coil spacing | 8 FPI |
| Coil circuit volume | 0.54 dm³ |
| Drain connection | 21 mm PVC |
| Dimensions | 594 × 372 × 130 mm |
| Net weight | 6.1 kg |
A practical cabinet evaporator for commercial refrigeration installations requiring dependable medium-temperature cooling in a compact footprint. store.mfw.net.au
