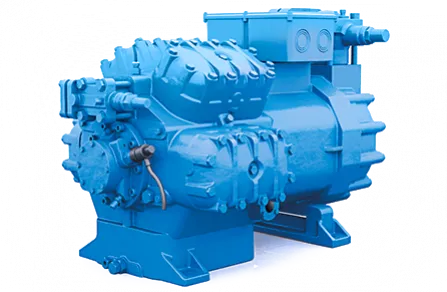

Frascold W60-187Y Semi-Hermetic Refrigeration Compressor – 3 Phase
The Frascold W60-187Y is an eight-cylinder semi-hermetic reciprocating compressor for commercial and industrial refrigeration. Featuring a 44.7 kW nominal motor and 186.1 m³/h displacement at 50 Hz, it combines serviceable construction with part winding starting and optional capacity control.
Technical Specifications
| Specification | Details |
|---|
| Model | W60-187Y |
| Cylinders | 8 |
| Nominal motor power | 44.7 kW |
| Power supply | 380–420 V / 3 phase / 50 Hz |
| Starting method | Part winding start (PWS) |
| Displacement at 50 Hz | 186.1 m³/h |
| Maximum operating current | 103.5 A |
| Locked rotor current — PWS | 326 A |
| Suction / discharge connection | 3⅛″ / 1⅝″ |
| Lubricant / oil charge | POE68 / 7.7 litres |
| Dimensions — L × W × H | 838 × 511 × 588 mm |
| Net weight | 315 kg |
Recommended Options — Available Separately
| Option | Application |
|---|
| Crankcase heater | Helps limit refrigerant migration during shutdown. |
| RSH capacity control heads | Match output to varying refrigeration loads. |
| Unloaded start head | Reduces compressor load during starting. |
| Oil equalisation adaptor kit | For parallel compressor installations. |
Confirm mounting details, refrigerant and accessory selection against the current OEM drawing and operating conditions. Motor power is not cooling capacity.
OEM Sources: Frascold Standard Series · Frascold OEM Catalogue
