Thenow Wine Cellar Split System 30m² – HSN-J30
The Thenow HSN-J30 Wine Cellar Cooling System is a dedicated split-system solution designed to maintain the controlled temperature and humidity conditions required for long-term wine storage. Rated for wine cellars up to approximately 30 m², the system combines cooling, electric heating and automatic humidification in one purpose-built package. Thenow Wine Cellar Cooling Unit…

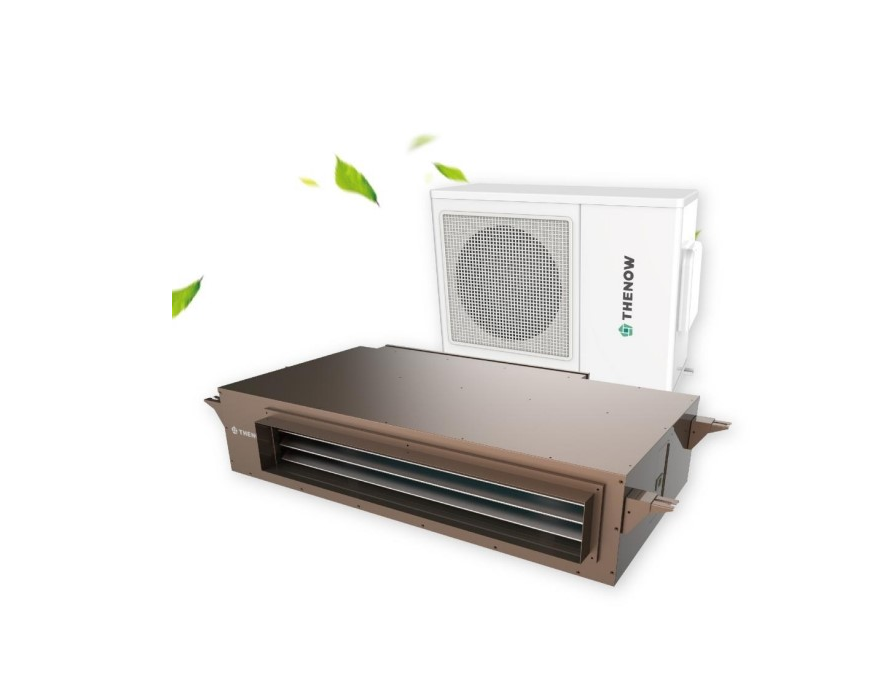

Unlike a conventional air conditioner, the HSN-J30 is designed around wine-cellar conditions, maintaining a selectable 10–18°C temperature range together with 50–70% relative humidity. Its split configuration allows the indoor evaporator to be installed within the cellar while the outdoor condensing unit rejects heat remotely, reducing heat and vibration within the storage space. Thenow Wine Cellar Cooling Unit…
Key Features
- Suitable for wine cellars up to 30 m²
- Automatic cooling and heating for stable cellar temperature
- Operating temperature range of 10–18°C
- Humidity control range of 50–70% RH
- Integrated wet-film humidification system
- Full-touch smart controller
- Three-speed automatically controlled airflow
- Nickel-plated evaporator for improved corrosion protection
- Pull-out wet-film module for easier cleaning and replacement
- Constant condensing-temperature control
- Indoor unit can be ceiling, rack or floor mounted
- Split-system construction helps minimise heat and vibration within the wine cellar Thenow Wine Cellar Cooling Unit…
Technical Specifications
| Specification | HSN-J30 |
|---|
| Recommended Cellar Size | Up to 30 m² |
| Power Supply | 220V / 50Hz |
| Cooling Capacity | 1,320 W |
| Electric Heating Capacity | 4,000 W |
| Airflow | 450 m³/h |
| External Static Pressure | 30 Pa |
| Indoor Noise Level | 50 dB(A) |
| Refrigerant | R134a |
| Temperature Range | 10–18°C, ±2°C |
| Humidity Range | 50–70%, ±5% |
| Total Power | 5,300 W |
| Humidifier Type | Wet-film |
| Humidification Capacity | 2 kg/h |
| Indoor Unit Dimensions | 945 × 790 × 300 mm |
| Outdoor Unit Dimensions | 860 × 300 × 540 mm |
| Liquid Connection | 6.35 mm |
| Gas Connection | 9.52 mm |
| Drain Connection | 20 mm |
| Controller | PC full-touch smart control |
Thenow notes that actual cellar sizing depends on factors including glass area, insulation, concrete construction, ambient temperature and ventilation. The published sizing is based on specified indoor and outdoor design conditions, so a heat-load assessment is recommended for critical applications. Thenow Wine Cellar Cooling Unit…
Product: Thenow Wine Cellar Cooling Unit – Split System
Model: HSN-J30
Application: Temperature and humidity control for dedicated wine cellars and wine storage rooms.
