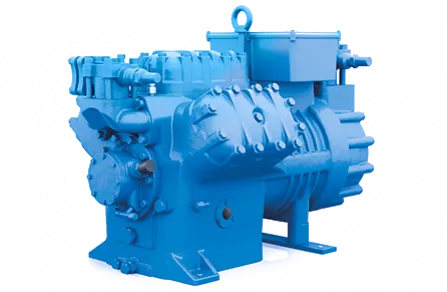

Frascold Z40-154Y Semi-Hermetic Refrigeration Compressor – 3 Phase
The Frascold Z40-154Y is a six-cylinder semi-hermetic reciprocating compressor for commercial and industrial refrigeration. Its 29.8 kW nominal motor and 154.38 m³/h displacement at 50 Hz provide a serviceable solution with part winding starting.
Technical Specifications
| Specification | Details |
|---|
| Model | Z40-154Y |
| Cylinders | 6 |
| Nominal motor power | 29.8 kW |
| Power supply | 380–420 V / 3 phase / 50 Hz |
| Starting method | Part winding start (PWS) |
| Displacement at 50 Hz | 154.38 m³/h |
| Maximum operating current | 77.9 A |
| Locked rotor current — PWS | 159.2 A |
| Suction / discharge connection | 2⅝″ / 1⅝″ |
| Lubricant / oil charge | POE68 / 7.2 litres |
| Dimensions — L × W × H | 794 × 509 × 536 mm |
| Base mounting centres | 381 × 305 mm |
| Net weight | 240 kg |
Recommended Options — Available Separately
| Option | Application |
|---|
| Crankcase heater | Helps limit refrigerant migration during shutdown. |
| RSH capacity control heads | Match output to varying refrigeration loads. |
| Unloaded start head | Reduces compressor load during starting. |
| Oil equalisation adaptor kit | For parallel compressor installations. |
Confirm refrigerant and accessory selection against operating conditions. Motor power is not cooling capacity.
