Includes standard controller
Our new large-capacity R32 High Static Ducted series (18kW–22.4kW).
The new models offer strong performance, energy efficiency, and flexible installation for residential and commercial use. Featuring R32 refrigerant with lower global warming potential, the units are lighter, more compact, and include advanced controls like touch panels and Wi-Fi connectivity.
| Model Number | SET-ARTH65KHTA-3PH |
| Indoor unit | ARTH65KHTA |
| Outdoor unit | AOTH65KRTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 400 / 3 / 50 |
| Capacity Class kW | 18 |
| Cooling Capacity kW (Rated (Min - Max)) | 18.00 (5.5 - 20) |
| Heating Capacity kW (Rated (Min - Max)) | 20.00 (5.5 - 22.4) |
| Running Current amps (Cooling / Heating) | 8.6 / 8.1 |
| Static Pressure Range PA (Min to Max) | 60 to 200 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 1139 |

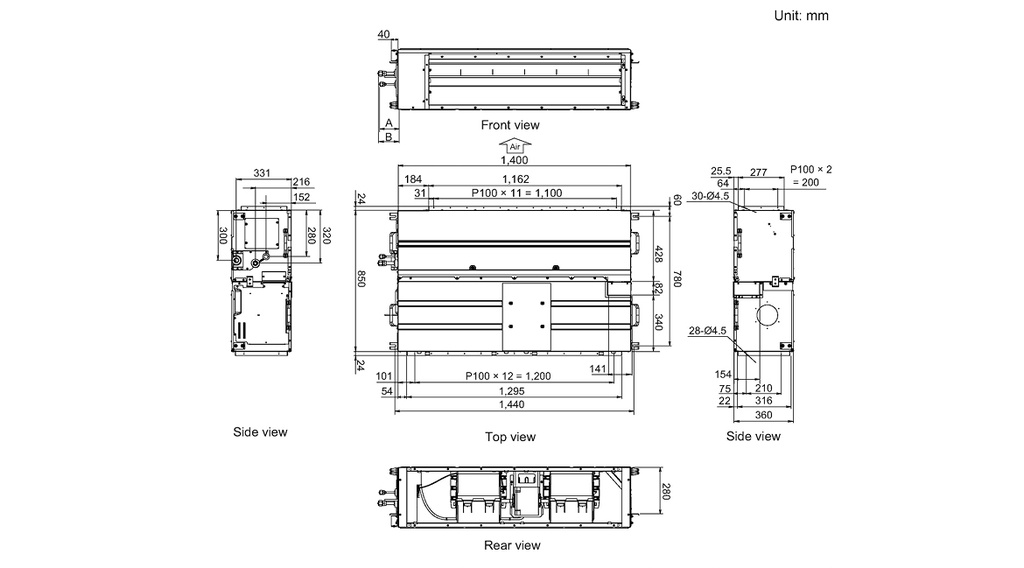

| Indoor Unit Dimensions mm (Height x Width x Depth) | 360 x 1400 x 850 |
| Indoor Unit Weight kg | 69.00 |

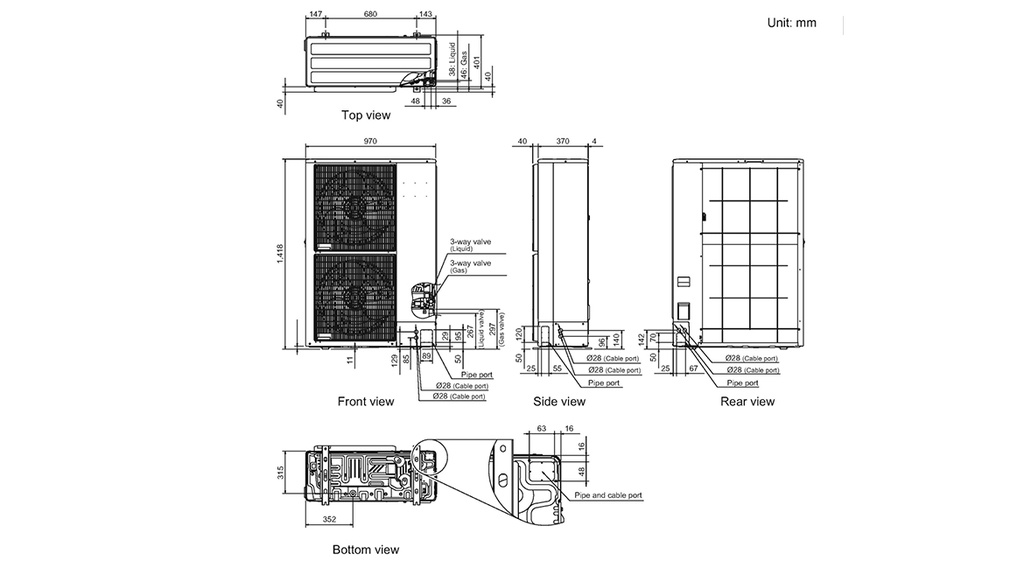

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 1418 x 970 x 370 |
| Outdoor Unit Weight kg | 102.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 75 (30) |
| Max Height Difference m | 30 |
| Refrigerant Type | R32 |
| Return Air Connection (H x W) | 316 x 1295 |
| Supply Air Connection (H x W) | 277 x 1162 |
